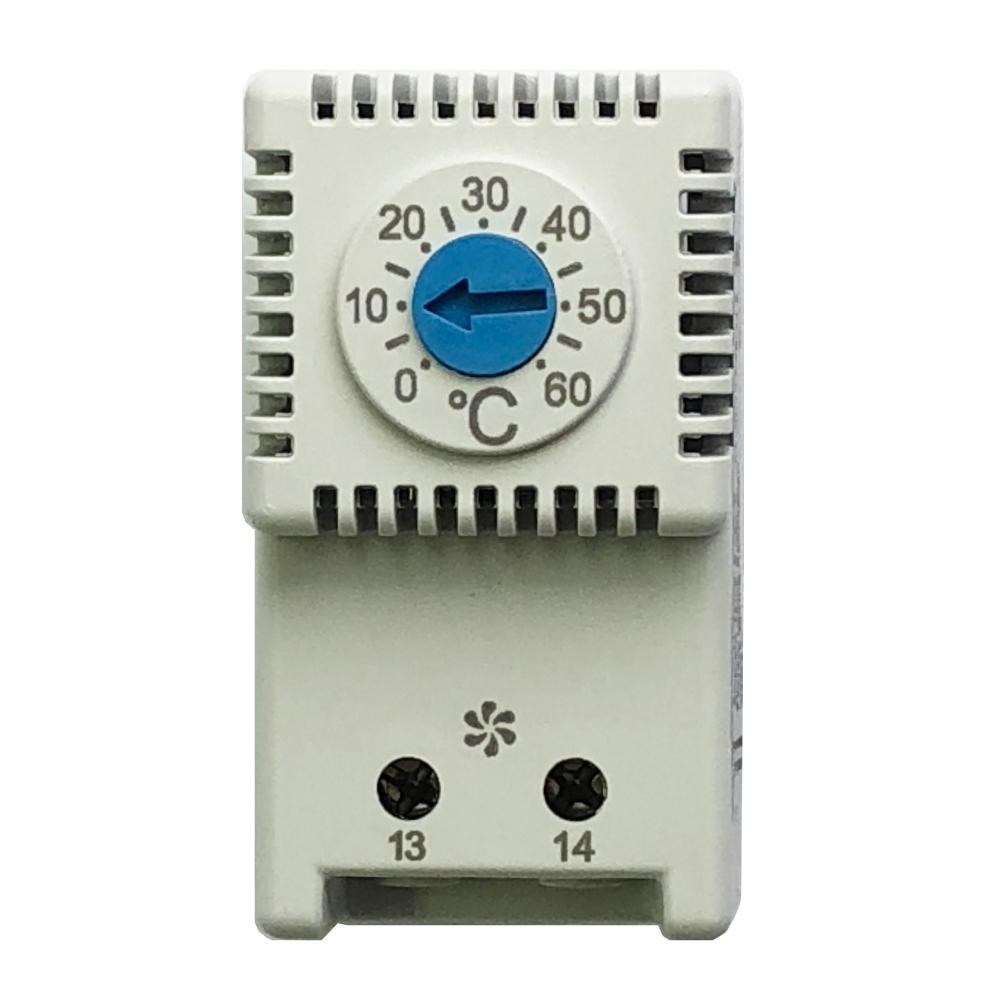

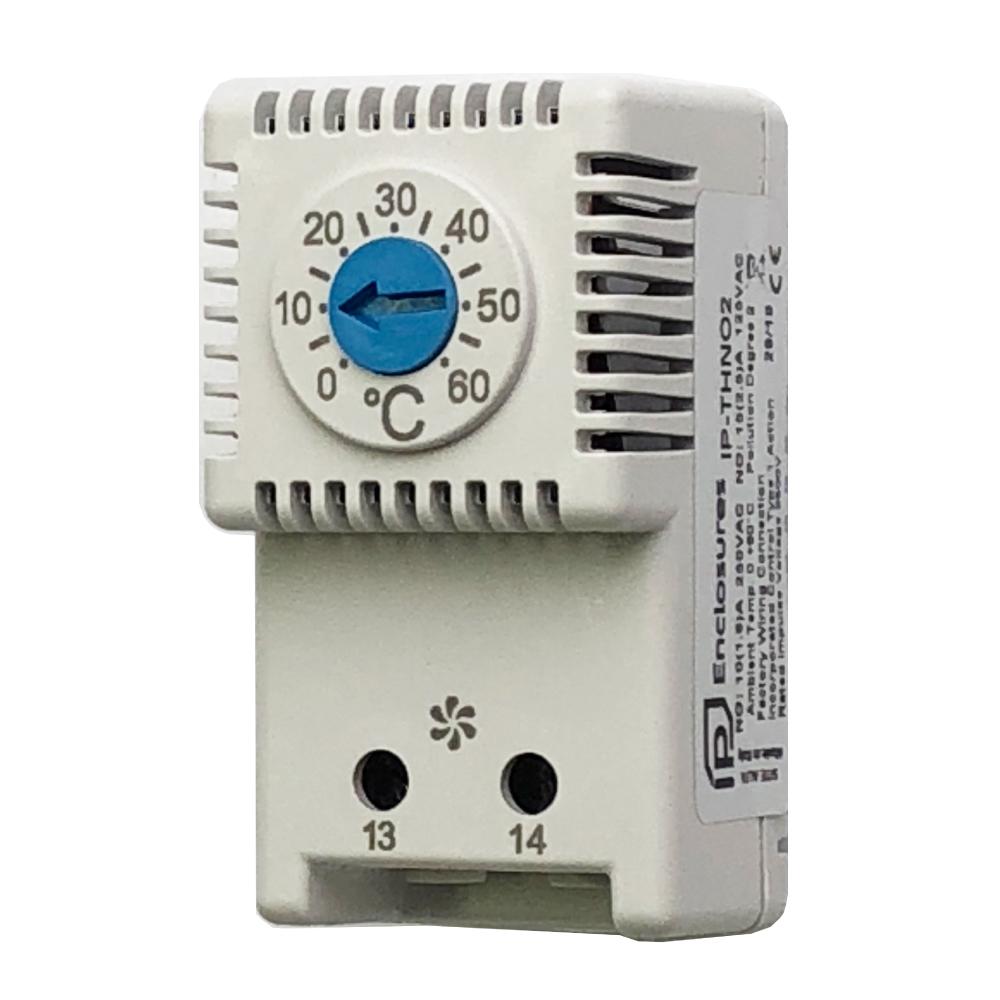

Thermostat for Fan NO 0/+60°C
High quality Italian compact thermostat for 35mm DIN rail mounting. Based on bimetallic junction, provides high capacity normally open contact. Suitable for controlling ventilation filter fan units.
| Features | Unit | IP-THNO2 | |
|---|---|---|---|
| Contact function | – | NO | |
| Temperature setting range | °C | 0/+60 | |
| Precision | °C | ±4 | |
| Hysteresis | °C | 7 | |
| Max.switching current | – | ||
| 250Vac resistive load (inductive load) | A | 10 (1.6) | |
| 125Vac resistive load (inductive load) | A | 15 (2.5) | |
| Max. switching power in Vdc | W | 30 | |
| Temperature sensor type | – | Thermostatic bimetal | |
| Contact type | – | Snap action | |
| Contact resistance | mOhm | < 10 | |
| Service life | cycles | > 100 | 000 |
| Electrical connections | – | 2-pole terminal for 2.5 mm² wire | |
| Casing | – | PA6; UL self-estinguishing; light grey RAL 7035 | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -25/+80 (-13/+176) | |
| Storage Temperature | °C (°F) | -45/+80 (-49/+176) | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | variable | |
| Conformity | – | CE – UL  File n.E348803 |
|
| Dimensions HxLxP | mm | 61x34x35 | |
| Weight | g | 48 |
