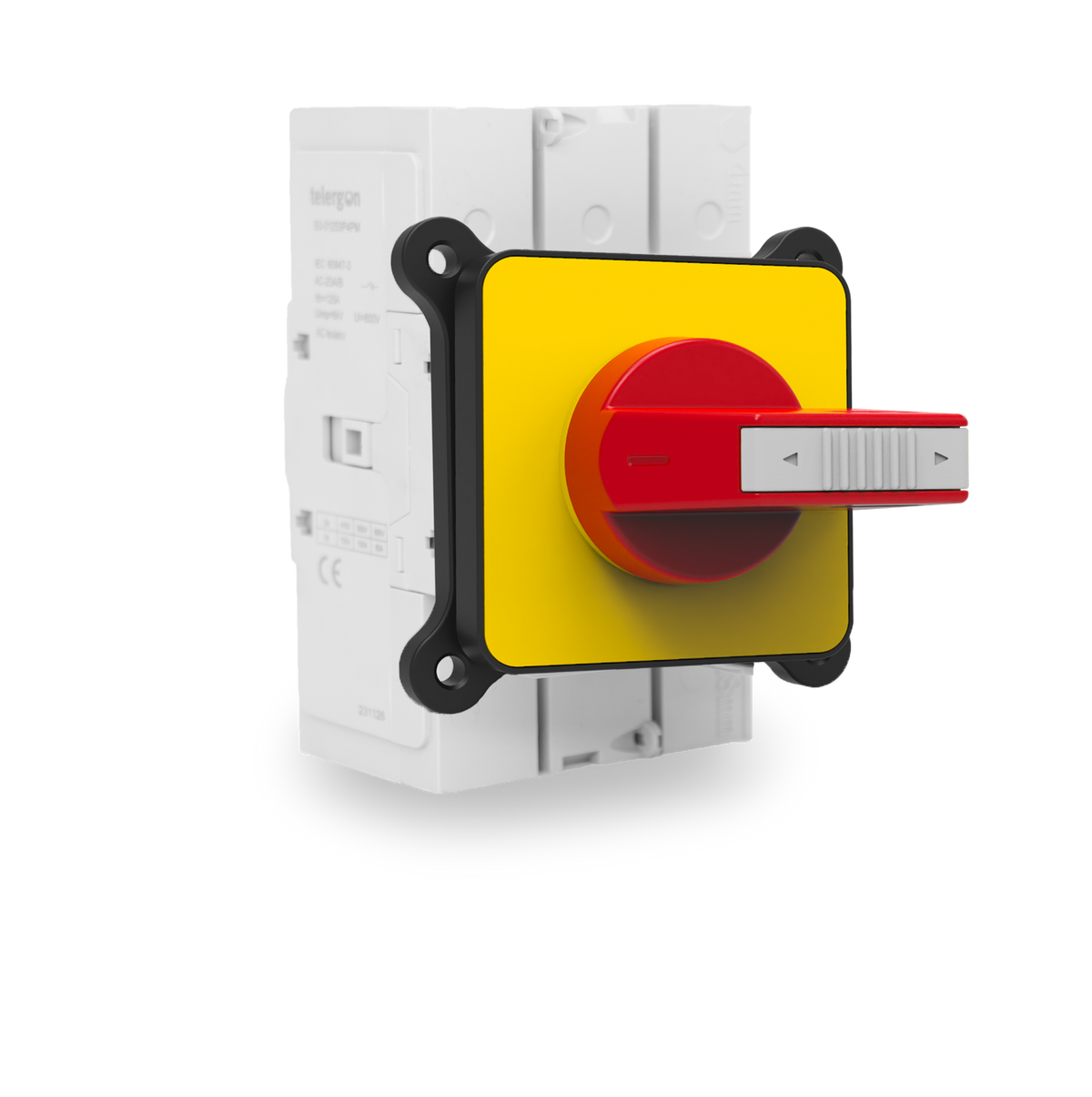

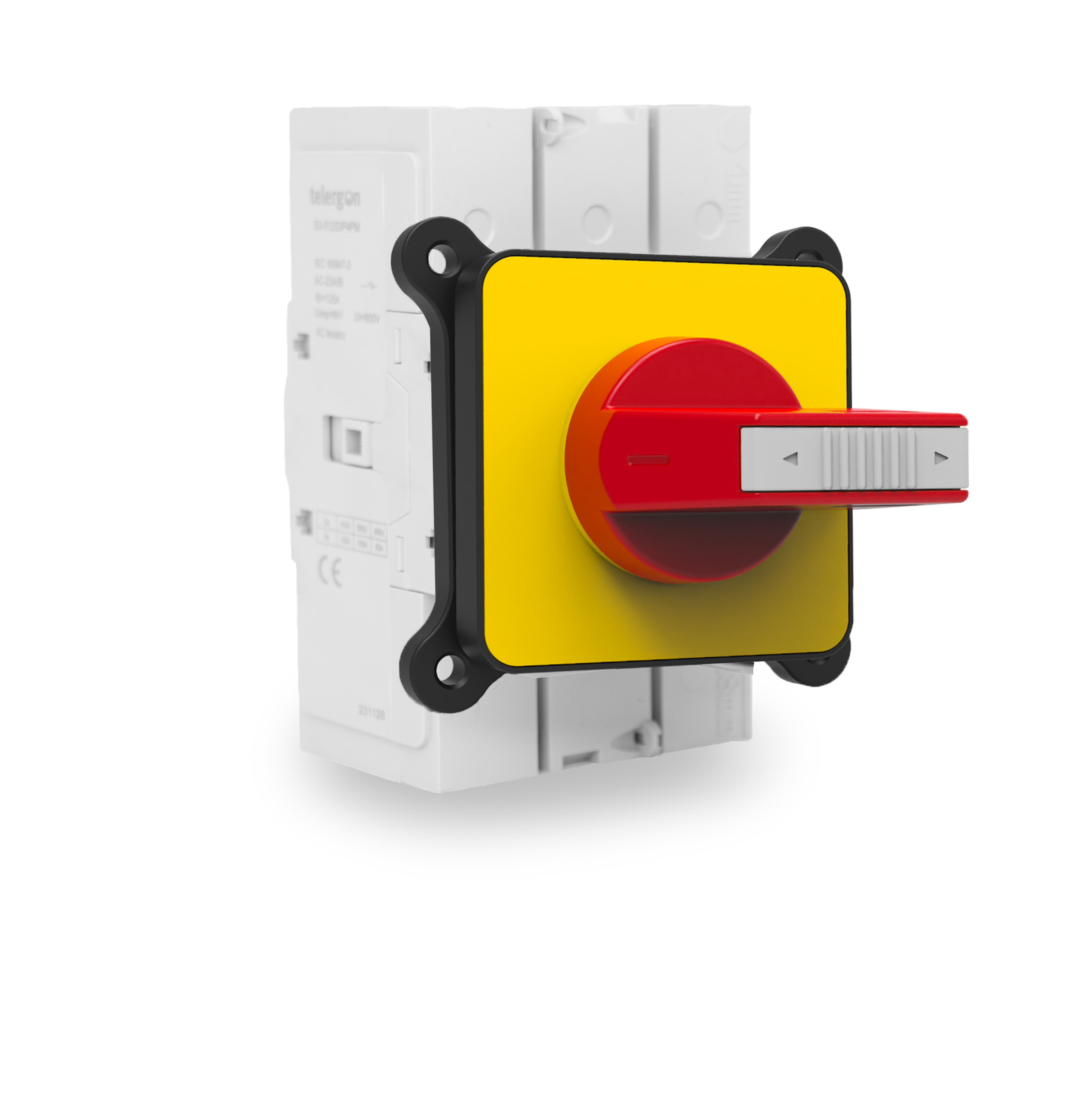

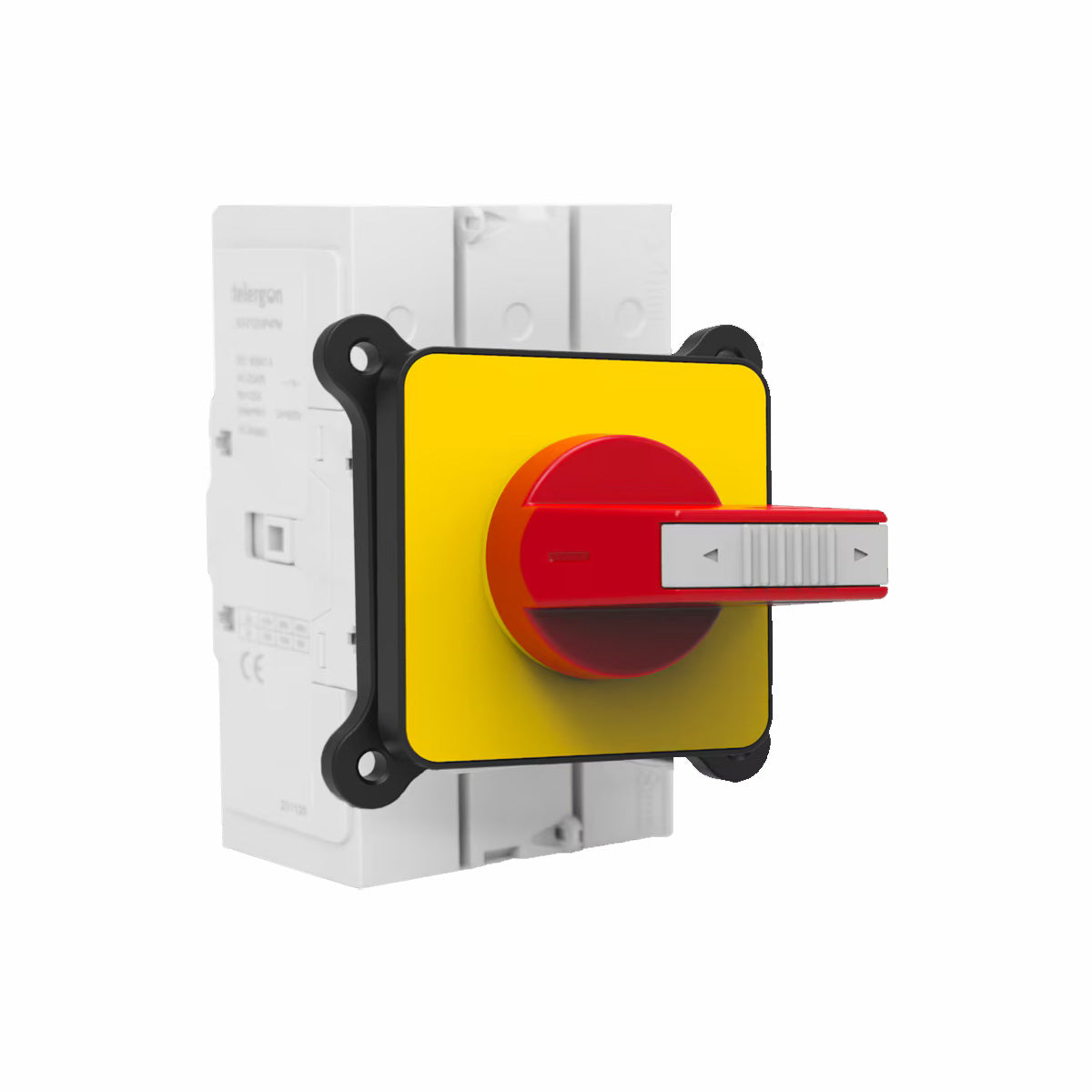

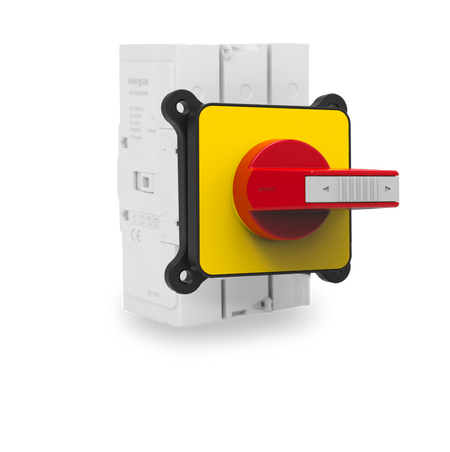

20A 4-Pole Panel Mount Isolator

A compact 20A isolator for door mounting on electrical cabinets. The 4-pole contacts (3P+N) allow for switching three phases and neutral. Provides a clean, professional interface for internal circuit isolation. The direct handle features a red/yellow colour scheme for emergency identification and can be padlocked in the OFF position.

Frame Size 000 – One Size, Several Ratings

Frame size 000 also covers the 16A, 25A, 32A and 40A ratings, all with the same body size, front plate, panel cut-out and terminal capacity. The 25A, 32A and 40A versions can be used as a direct replacement for this 20A unit and suit any load up to their own rating.

In this frame: 40A 4-Pole Panel Mount Isolator | 32A 4-Pole Panel Mount Isolator
