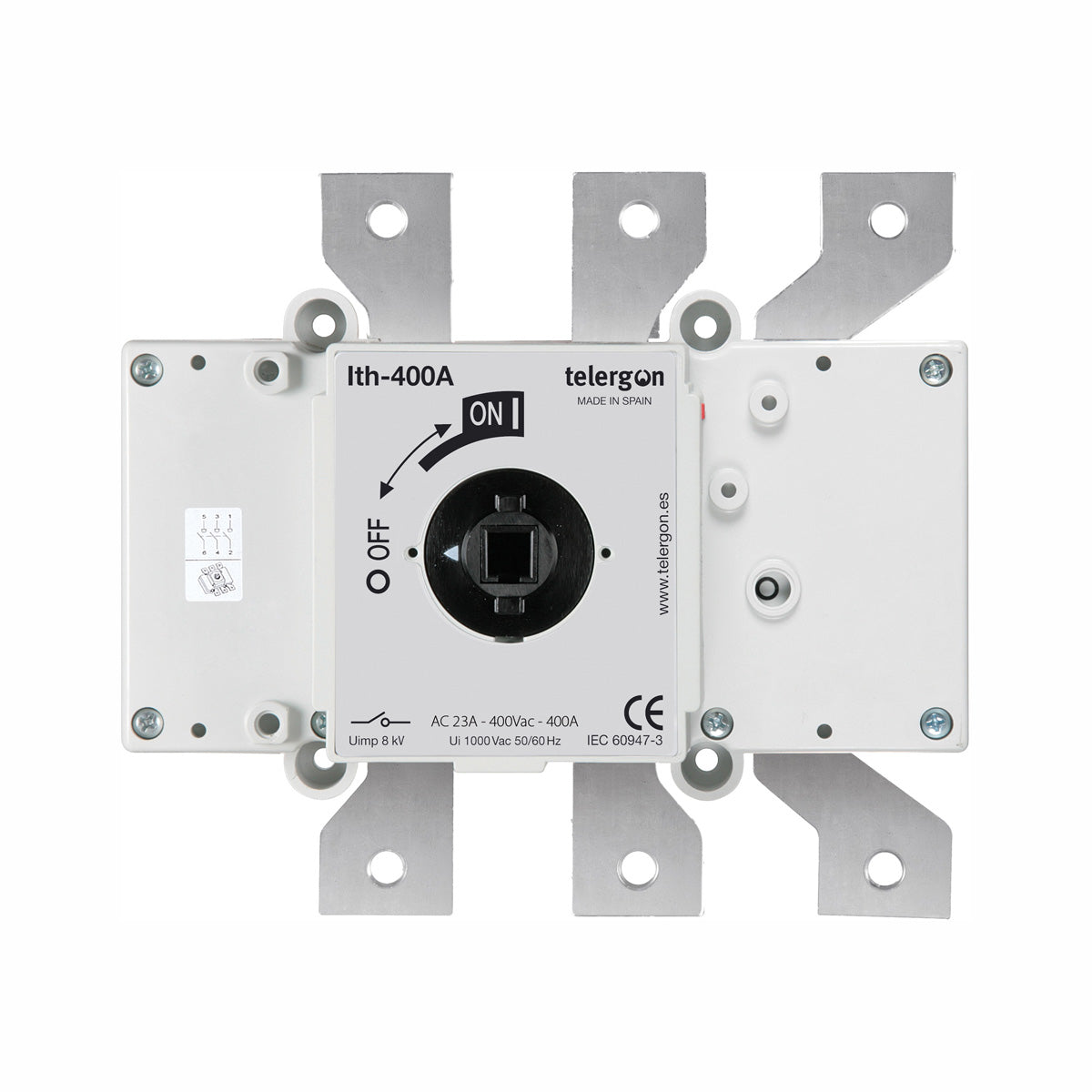

Switch Disconnector S5 400A 3P (HANDLE ORDERED SEPARATELY)

SKU
$395.15 ex. GST $454.42 inc. GST
In stock
2 in stock across 1 warehouse
  • Current 400A
  • Poles 3 Pole

Superseded by the Telergon S6 range. Available while stock lasts. For new projects, specify the S6 400A 3P (S6-04003PD0).

Terminal protection
The S5 400A has offset terminals, so the S5 terminal shrouds (DS-CU11) do not fit. Use the DS-CU12 flat terminal protection cover, two per switch: one on the line side and one on the load side.

Terminal protection cover or terminal shroud?
A terminal protection cover is a flat cover over the front of the terminals that prevents accidental contact with live parts. A terminal shroud is a moulded cover that encloses the terminals and includes barriers between phases. DS-CU12 is a protection cover, so it does not provide phase separation.

Where phase separation is required, specify the S6 400A 3P (S6-04003PD0), which takes the DR-CU12 terminal shroud and DR-SF12 phase barriers.

Telergon S5 Switch Disconnectors provide certain contact separation for use as main switches or local isolation points, with clear visual ON/OFF indication. For detailed technical data, please view the datasheet.
Product Datasheet PDF
