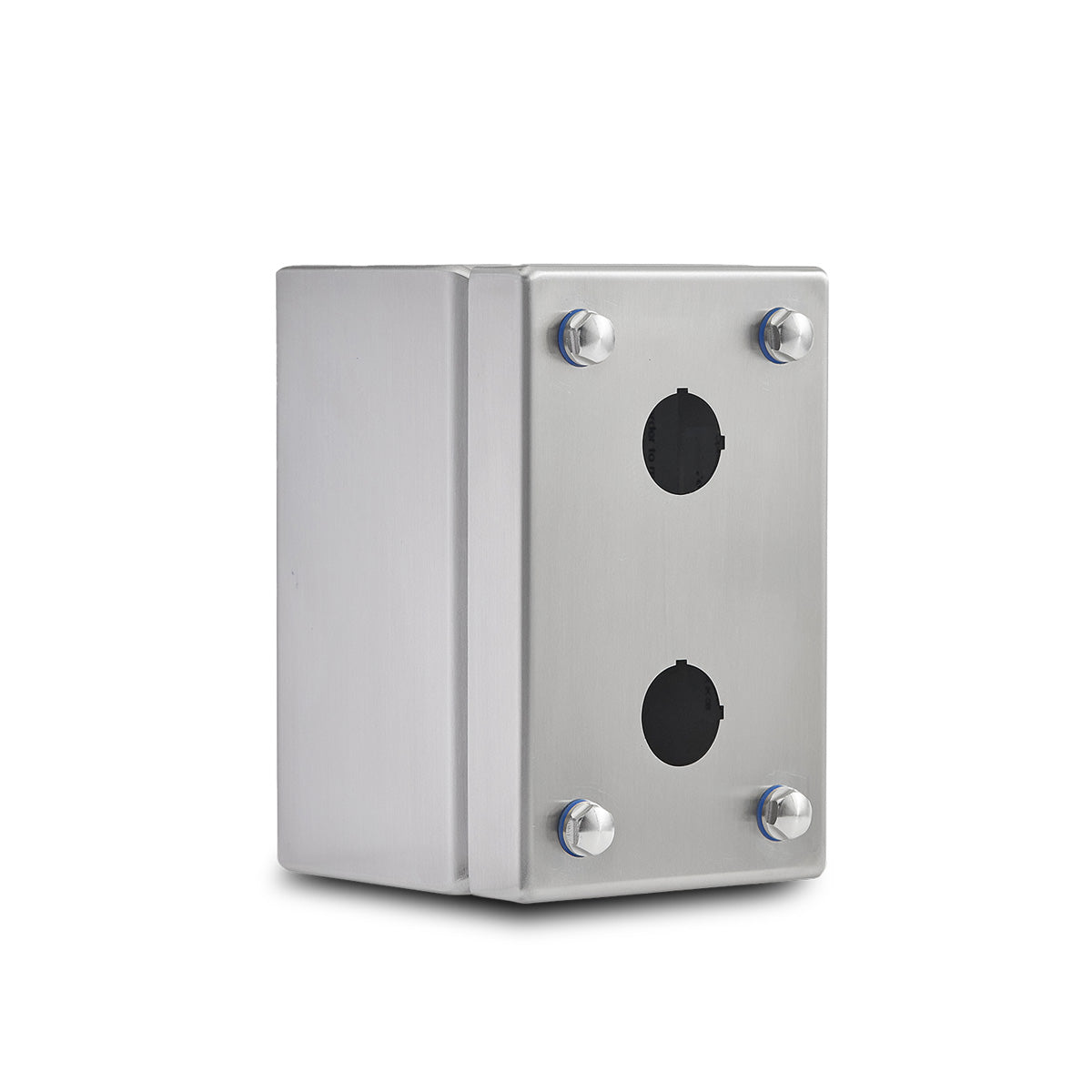

Pushbutton Enclosure 316 Stainless Steel, 2 Holes
Ask an expert!
- Material
- Size
The IP Enclosures SSP Range of grade 316 stainless steel pushbutton enclosures are ideal for use in the harshest environments. The
silicon seal gasket is resistant to harsh chemicals. They are available in 1 hole, 2 hole, 3 hole, 4 hole, 6 hole, and 8 hole configurations.
Protection: IP66, IP67
Standard: IEC/EN/AS60529, RoHS, CE, UKCA NEMA 4x
Features & Specifications
Material:
– Body: 1.0mm Grade 316L Stainless Steel
– Lid/Door: 1.0mm Grade 316L Stainless Steel
– Seal: Silicone
Surface Finish:
0.4 micron Ra surface brushed finish
Body:
The robust monoblock body is fabricated using 1.0 mm grade 316/316L stainless steel.
Lid/Door:
The robust pre-drilled lid/door is fabricated using 1.00mm. Grade 316 Stainless Steel and is fastened using screws.
Seal:
A high quality Silicone seal.
TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
