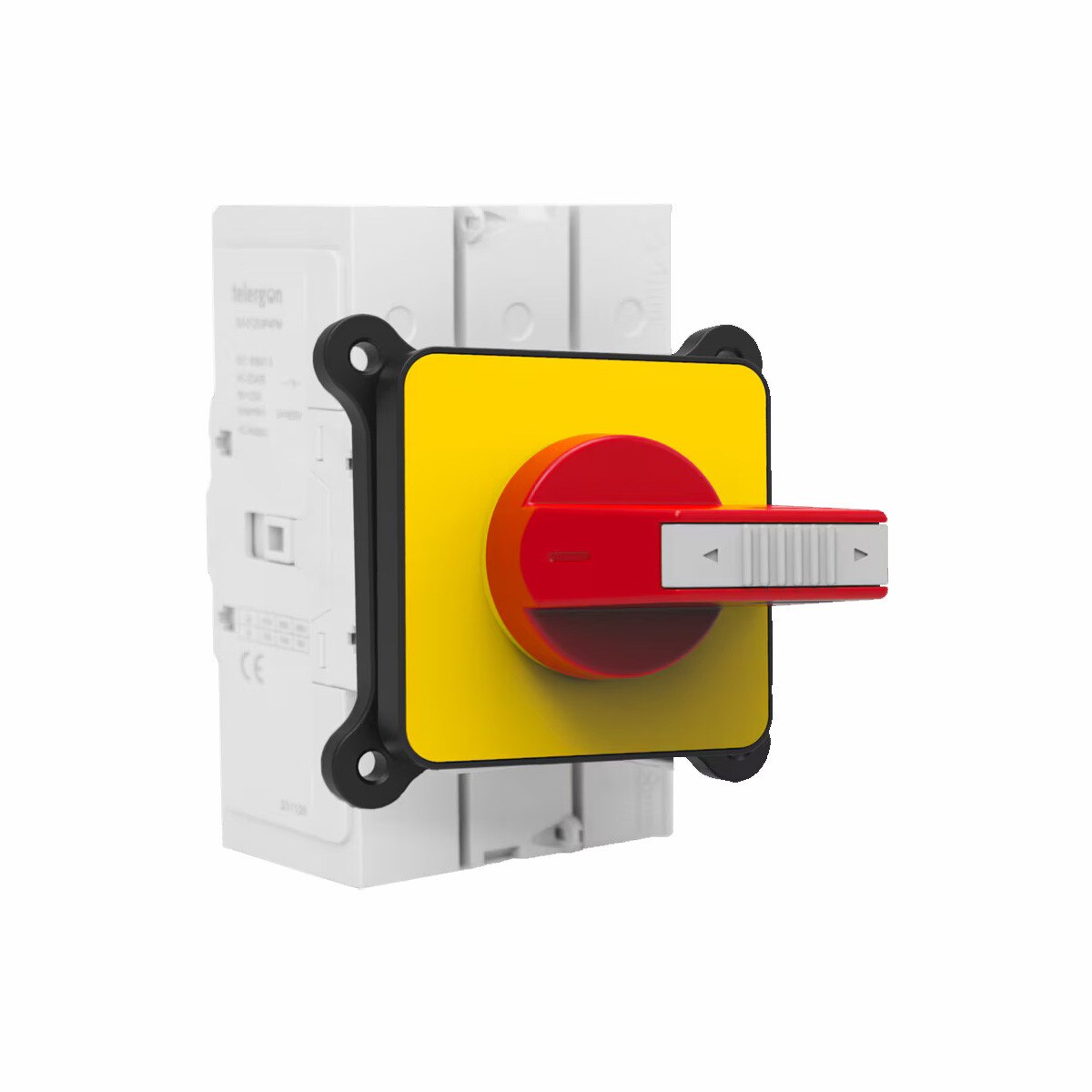

125A 4-Pole Panel Mount Isolator

The highest-rated S3 panel mount isolator, this 125A 4-pole (3P+N) unit handles main incomer and large motor isolation on panel doors, rated 55kW at 415V (AC-23A). Terminals accept 10 to 70mm² cable for main feed connections, and the red/yellow handle padlocks in the OFF position. Early-make, late-break neutral and a 100,000-operation mechanical life.

Frame Size 0 – One Size, Several Ratings

Frame size 0 also covers the 100A rating, with the same body size, front plate, panel cut-out and terminal capacity. As the highest rating in the frame, this 125A unit can be used as a direct replacement for 100A panel mount isolators and suits any load up to 125A.

In this frame: 100A 4-Pole Panel Mount Isolator

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
