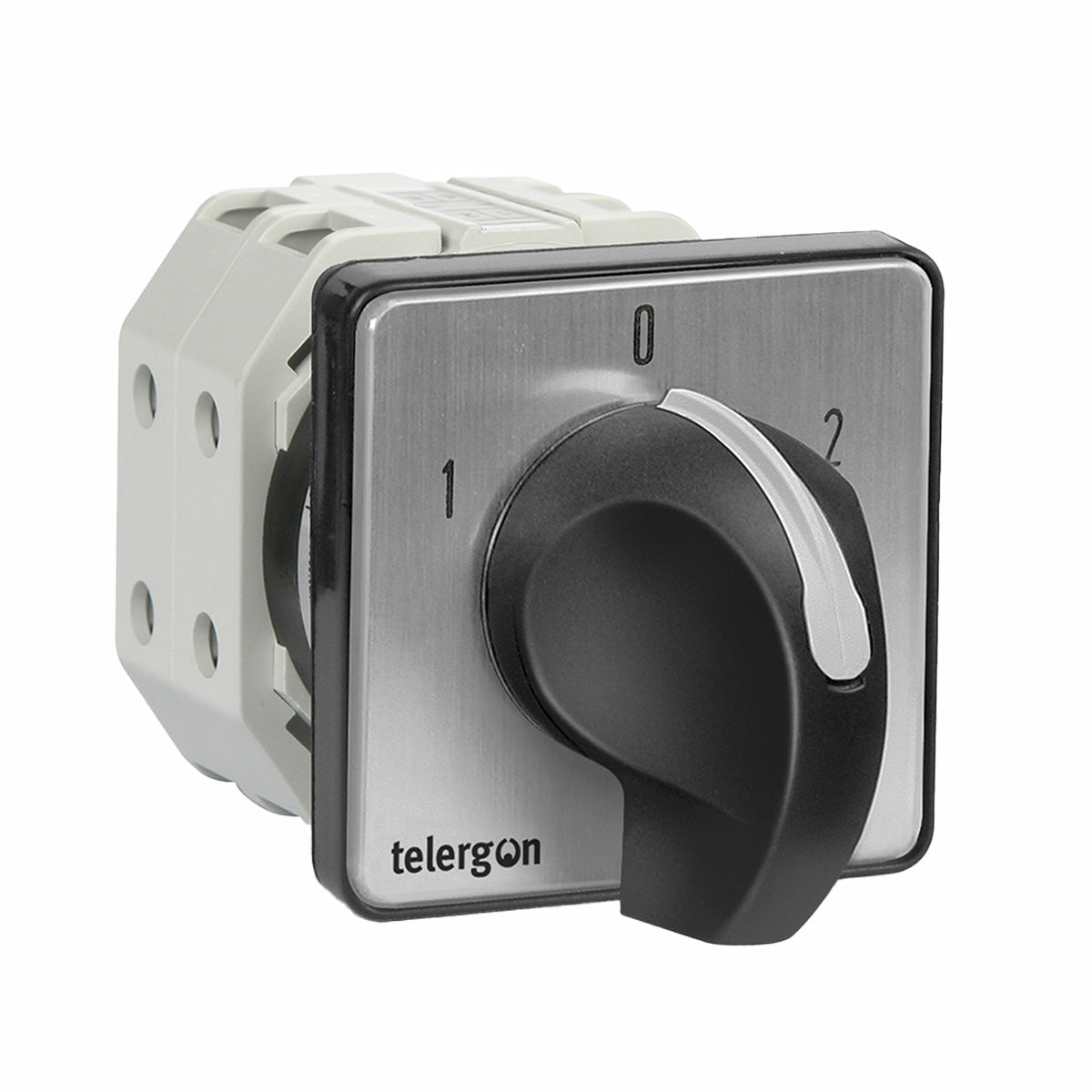

63A 3-Pole Panel Mount Changeover Switch (1-0-2)

Telergon T63 panel mount changeover switch, 3-pole, with centre-OFF 1-0-2 switching for manual transfer between two supplies such as mains and generator. Certified to IEC 60947-3 and UL 60947-4-1 / CSA C22.2 No.14.

• Telergon model: T63 (Size 2)
• Rated thermal current (Ith): 80 A
• AC21A / AC22A / AC23A at 415 V: 80 A / 80 A / 63 A
• Rated insulation voltage (Ui): 690 V
• Impulse withstand (Uimp): 8 kV
• Max fuse gL-gG: 80 A
• Breaking capacity at 400 V (cos φ 0.45): 504 A
• Short-time withstand (Icw, 1 s): 1,600 A
• Conductor: rigid 16 / 25 mm², flexible 10 / 16 mm²
• UL rating: Ith 63 A, 600 Vac
• Mechanical durability: 10,000 operations
• Supplied with: arrow handle (non-padlockable) and mounting plate; frontal fixing with 2 or 4 screws

Where the load is switched on-load, select on the AC23A rating.
