MOC-100a Modular Contactor 100A 2-Pole 1NO1NC, 24VAC Coil

MOC-100a Modular Contactor 100A 2-Pole 1NO1NC, 24VAC Coil

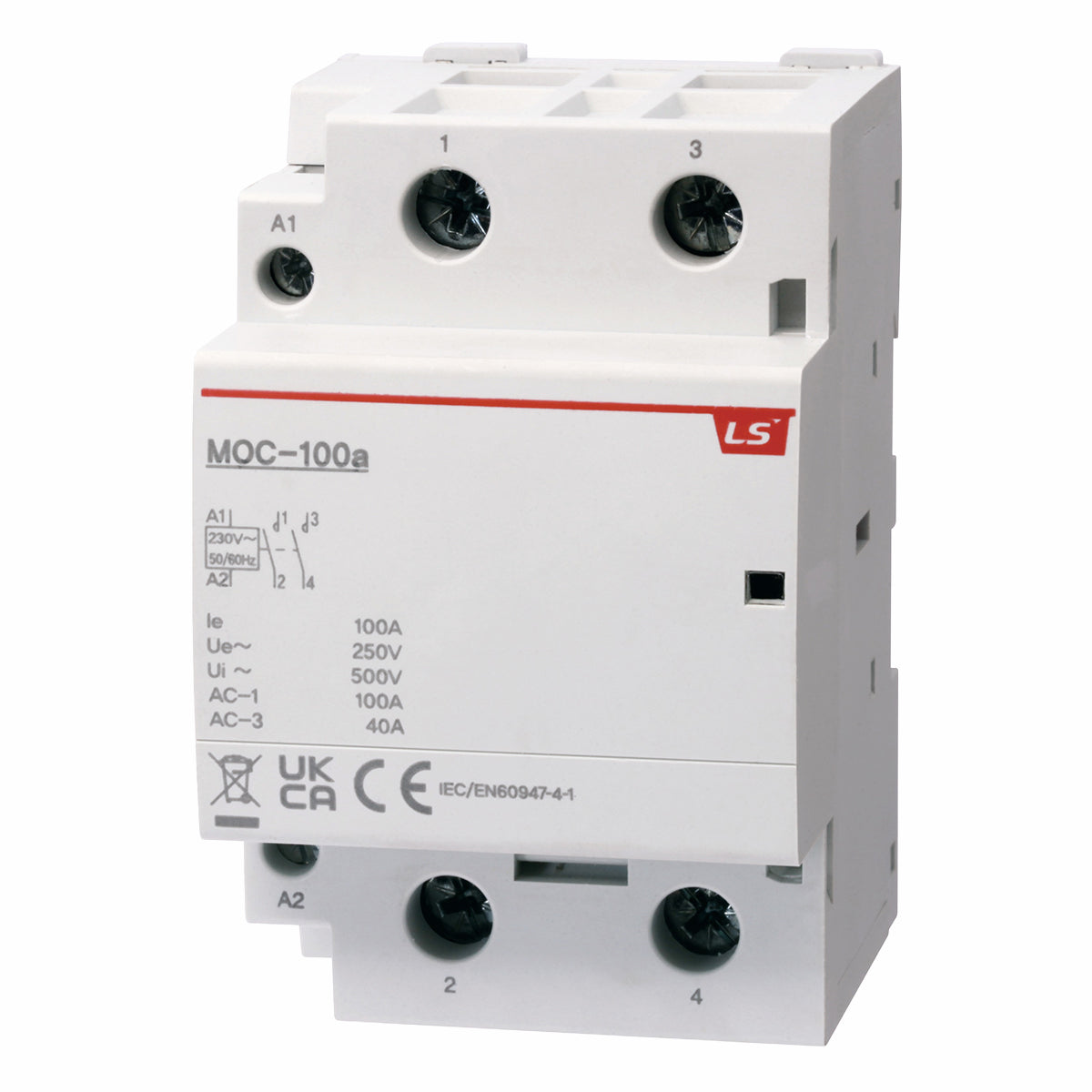

LS Electric MOC-100a 2-pole modular contactor with 1NO1NC main contacts (one normally open, one normally closed) and a 24 VAC coil. Rated 100 A AC-1/AC-7a, it switches lighting and heating (resistive) loads from the switchboard. Not rated for motor (AC-3) duty. Mounts on 35 mm DIN rail in a 54 mm wide module to line up with MCBs and RCBOs. IP20 rated, with a mechanical life of 1,000,000 operations. Accepts MOC-AUX auxiliary contacts and 9 mm spacers.

Features and Specifications

Protection: IP20 (device). Operating range −5°C to +60°C.

Standards (& Conformities): IEC 61095, IEC 60947-4-1.

Electrical:

Rated operational voltage (Ue): 250 V
Rated insulation voltage (Ui): 500 V
Rated impulse withstand (Uimp): 4 kV
Thermal current (Ith): 125 A
AC-1/AC-7a: 100 A
AC-3/AC-7b: Not rated
Power AC-1/AC-7a: 21.6 kW single-phase 250 V
Max. back-up fuse: 125 A

Coil:

Control voltage: 24 VAC 50/60 Hz
Inrush: 52 VA
Holding: 6.5 VA / 2.1 W

Dimensions and Mounting:

Width: 54 mm (3 modules)
Height × depth: 85 mm × 68 mm
Clip-on 35 mm DIN rail, ±30° from vertical

Termination:

Main: 6–35 mm² flexible; coil: 1.5–2.5 mm²
Tightening torque: Main 3.5 N·m; coil 0.8 N·m

Life:

Electrical (AC-1): 100,000 operations
Mechanical: 1,000,000 operations
Max. 100 switching operations per day

Accessories: MOC-AUX side-mounted auxiliary contacts (2NO or 1NO1NC) and 9 mm MOC spacers. Fit a spacer between each contactor where the enclosure interior runs between 50°C and 60°C.

Manufacturer: LS ELECTRIC Co., Ltd.
