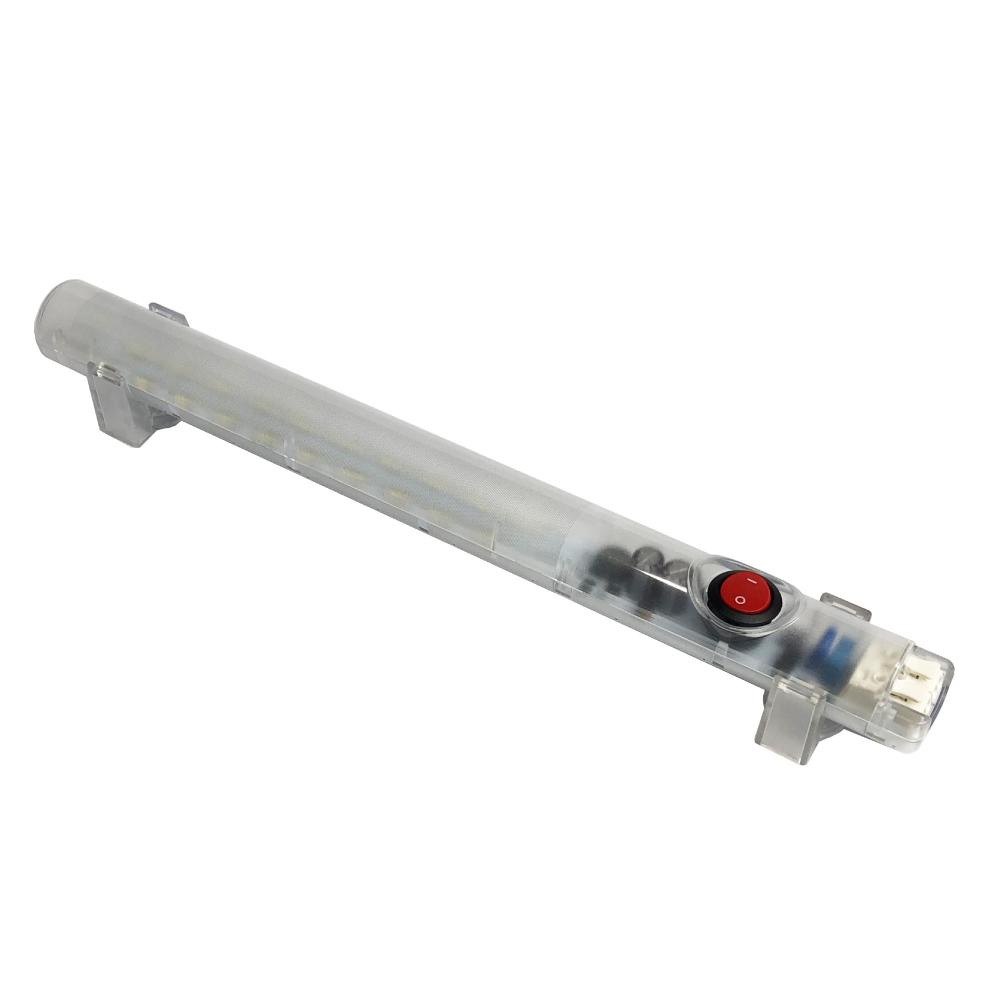

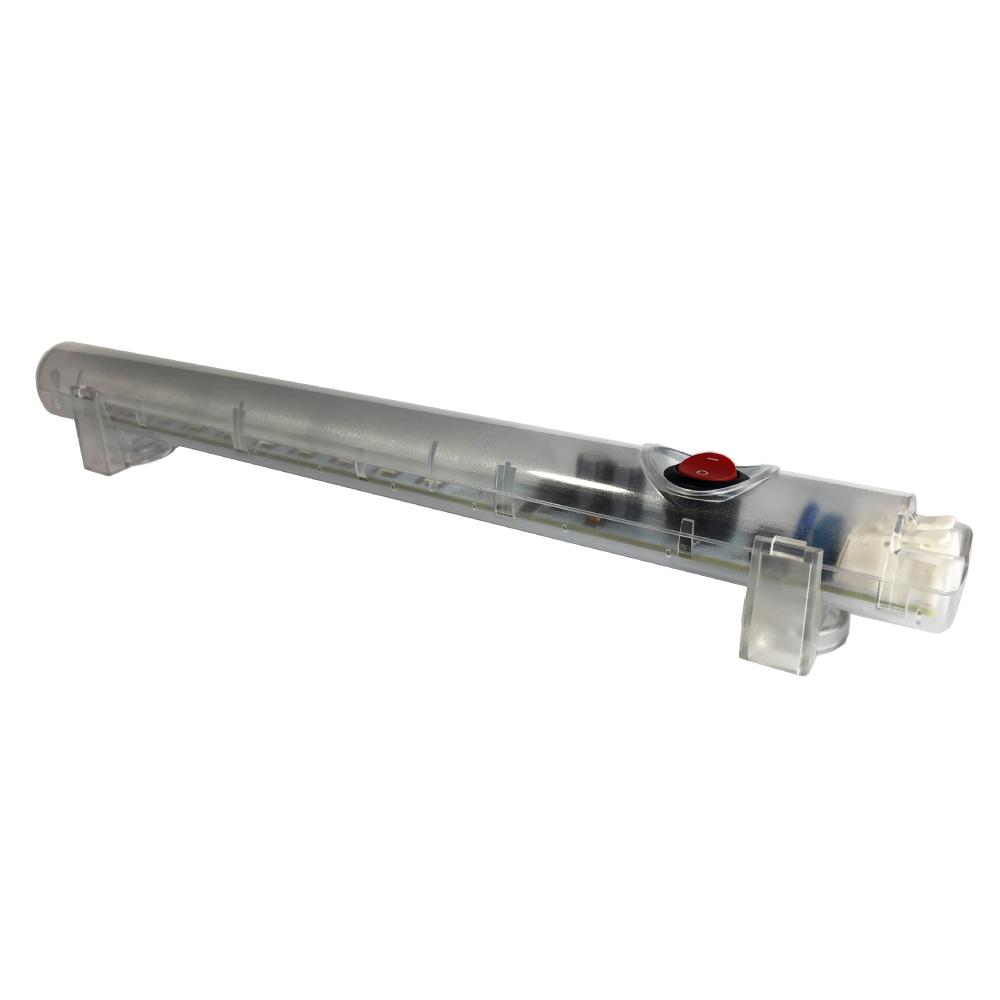

LED Light 24VDC with On/Off Switch, Screw Mount
IP Enclosures Slimline, high efficiency LED light for electrical enclosure. Spring terminal connection. Fixing clips allow lamp to be rotated to suit lighting needs. Provided with integral on-off switch. Screw-type mounting. Made in Italy.
| Features | Unit | IP-LEDLAMP3200 |
|---|---|---|
| Power supply | V/Hz | 24VDC |
| Luminosity | Lm | 400 |
| Lamp type | - | LED |
| Power consumption | W | 2.5 |
| Service life (@ 20°C) | hr | 60.000 |

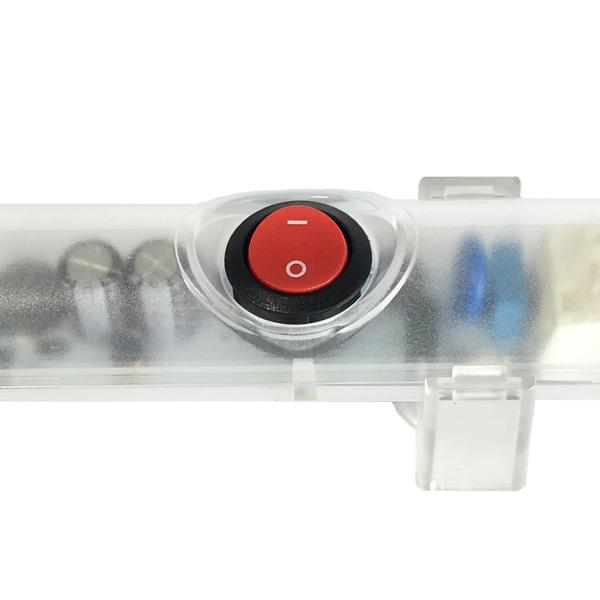

| Switch | - | On/off switch |
| Electrical connection | - | 2-poles spring terminals ** |
| Casing | - | Plastic |
| Protection degree / Class | - | IP20 / Classe II |
| Operating temperature | °C (°F) | -30 / +60 (-22 / +140) |
| Storage temperature | °C (°F) | -40 / +85 (-40 / +185) |
| Mounting | - | screw fixing |
| Installation position | - | Variable |
| Dimensions | mm | 345 |
| Weight (with packaging) | kg | 0.155 (0.205) |
| Package dimensions | mm | 415x50x43 |
| Conformity/Certifications | - | CE  File n° E301228 |
