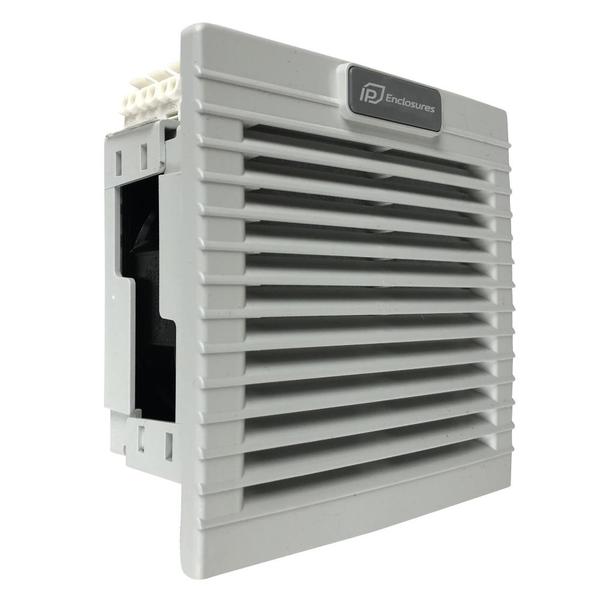

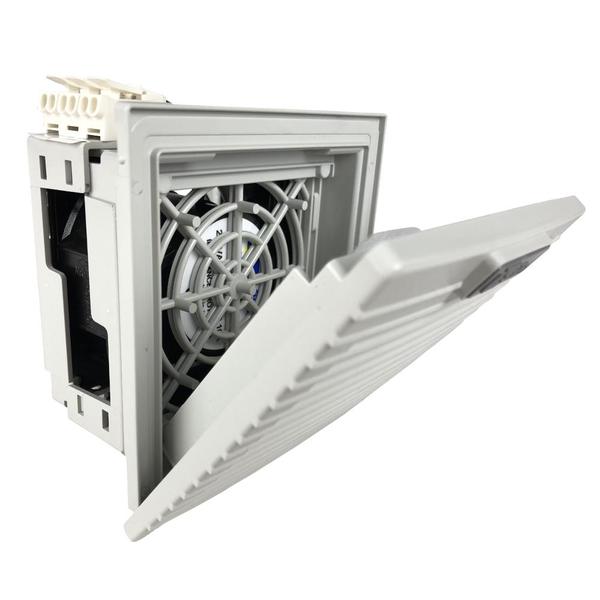

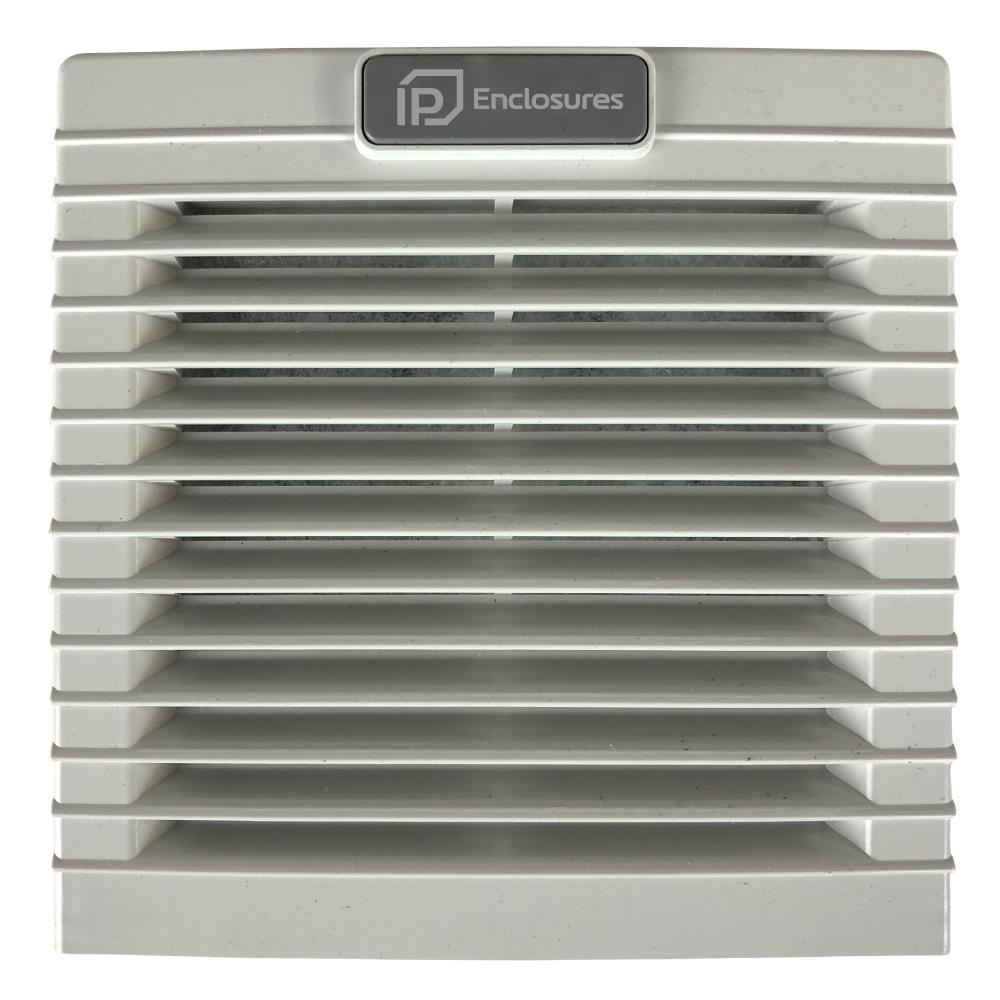

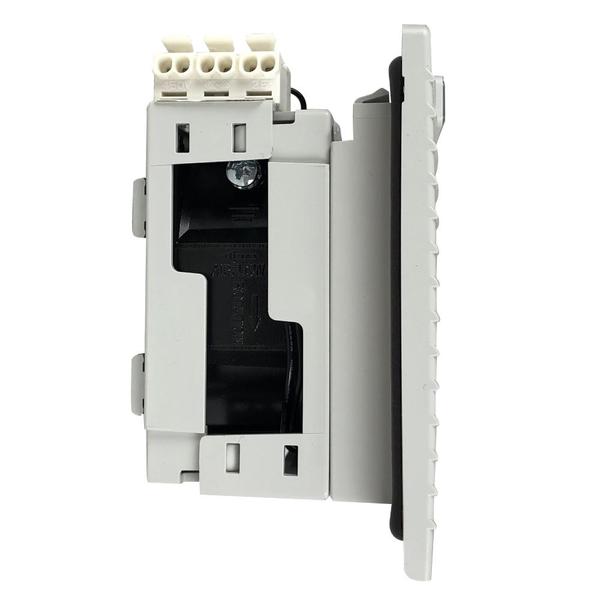

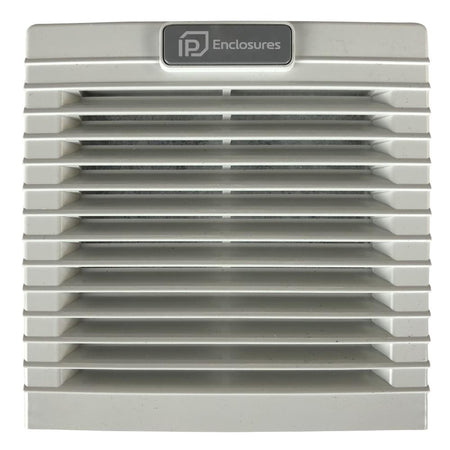

Filter Fan 114 x 114 25m3/hr 12VDC
High quality Italian filter fan unit for electrical enclosures.
G3 Filter Mat Included.
| Features | Unit | IP-V1112 |
|---|---|---|
| Air flow rate (free blow) | m³/h | 26 (30) |
| Flow rate with exit filter | m³/h | 15 (18) |
| Power supply | V/Hz | DC12 |
| Dimensions HxLxP | mm | 114x114x60 |
| Power consumption | W | 3 |
| Current consumption | A | 0.25 |
| Overcurrent consumption | - | impedance |
| Electric connection | - | 2-poles spring terminals |
| Duty cycle | - | 100% |
| Operating temperature | °C | - 10 / +70 (+14 / +158) |
| Protection degree/class | - | IP54/Class I |
| Noise level | dB(A) | 35 |
| Flow direction | - | reversible: default factory setting outside-in |
| Bearing | - | ball |
| Filter mat (Eurovent) | - | G2 |
| Service life (at 40°C) | hr | 50 000 |
| Material | - | ABS UL94V-0 Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | - | foam seal gasket |
| Weight (with packaging) | kg | 0.20 (0.25) |
| Package dimensions | mm | 120x120x80 |
| Montaggio | - | fast clip-on |
| Conformity/Approvals | - | CE |
Standards & certifications
IP54Dust-protected · splashing
