Home » Enclosures» Fibox ARCA Polycarbonate Enclosure 800H x 600W x 300D IP66 with 2 Quarter Turn Locks + Window, Including Mounting Plate
Fibox ARCA Polycarbonate Enclosure 800H x 600W x 300D IP66 with 2 Quarter Turn Locks + Window, Including Mounting Plate —
Fibox ARCA Polycarbonate Enclosure 800H x 600W x 300D IP66 with 2 Quarter Turn Locks + Window, Including Mounting Plate —

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

FIBOX

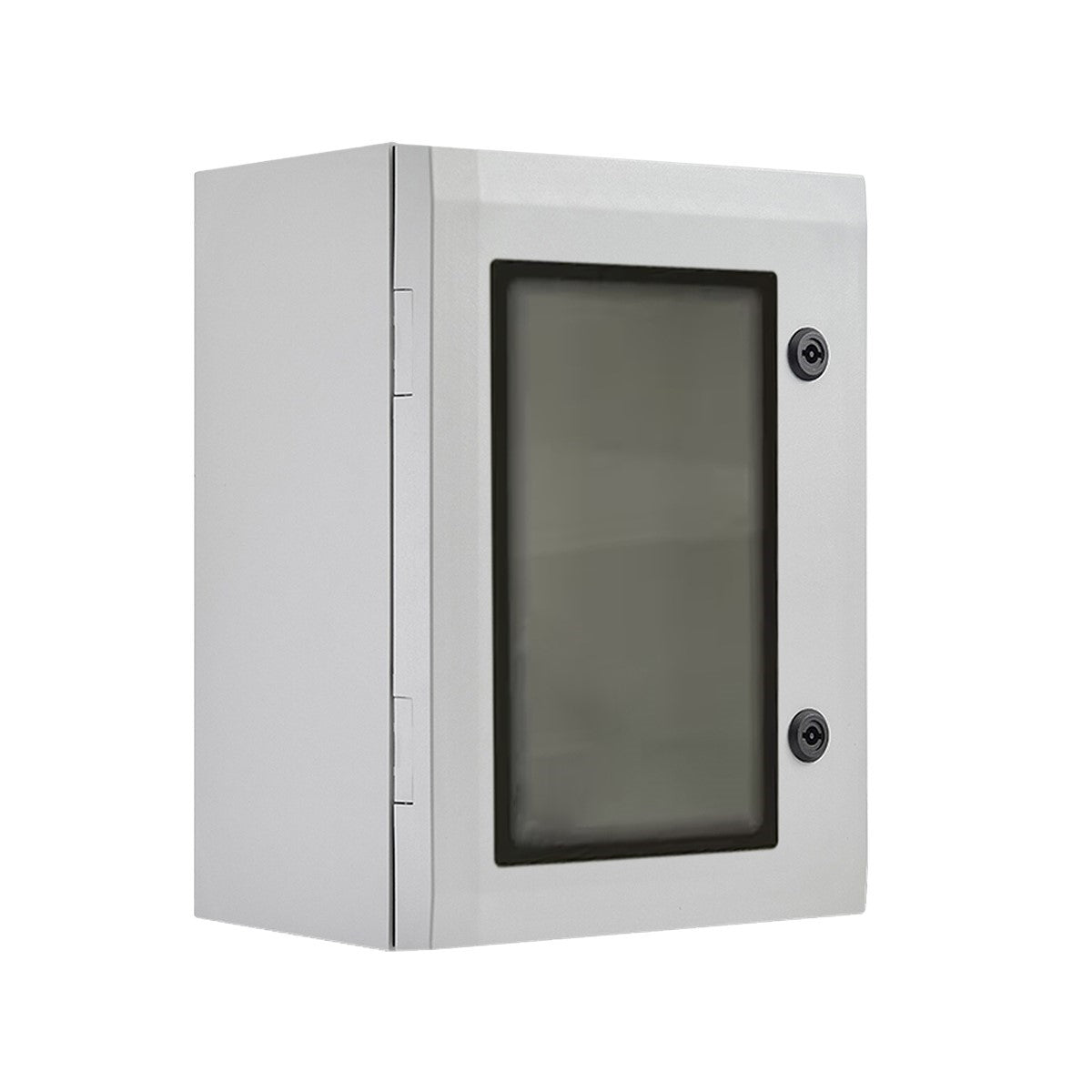

Fibox ARCA Polycarbonate Enclosure 800H x 600W x 300D IP66 with 2 Quarter Turn Locks + Window, Including Mounting Plate

SKU
$1,520.90 ex. GST $1,749.04 inc. GST
In stock
2 in stock across 1 warehouse
  • Height (mm) 800
  • Width (mm) 600
  • Depth (mm) 300
  • Material Polycarbonate
  • Colour Grey
  • IP Rating IP66
  • IK Rating IK10
  • Seal Type Polyurethane FIP
  • Lock Type 3mm Double Bit 2-Point
  • Door Type Single Door
  • Transparent Door
  • Mounting Plate
  • Operating Temp -40°C to 80°C
  • Country of Origin FI
  • Standards
    • IEC 62208
    • IEC 61439-1
    • IEC 61439-4
  • Flammability Rating UL 94 5VA

Fibox ARCA Polycarbonate Enclosure 800H x 600W x 300D IP66 with 2 Quarter Turn Locks + Window, Including Mounting Plate

Standards & certifications

IP66Dust-tight · powerful jets IK10Impact rated NEMAUS enclosure rating IEC/EN 62208 · 614391 · 614394 Tested standards
Product Datasheet PDF Dimensional Drawing PDF CAD File STEP Declaration of Conformity PDF

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
