Home » Enclosures» Fibox ARCA Polycarbonate Enclosure 300H x 200W x 150D IP66 with 1 Quarter Turn Lock, Including Mounting Plate

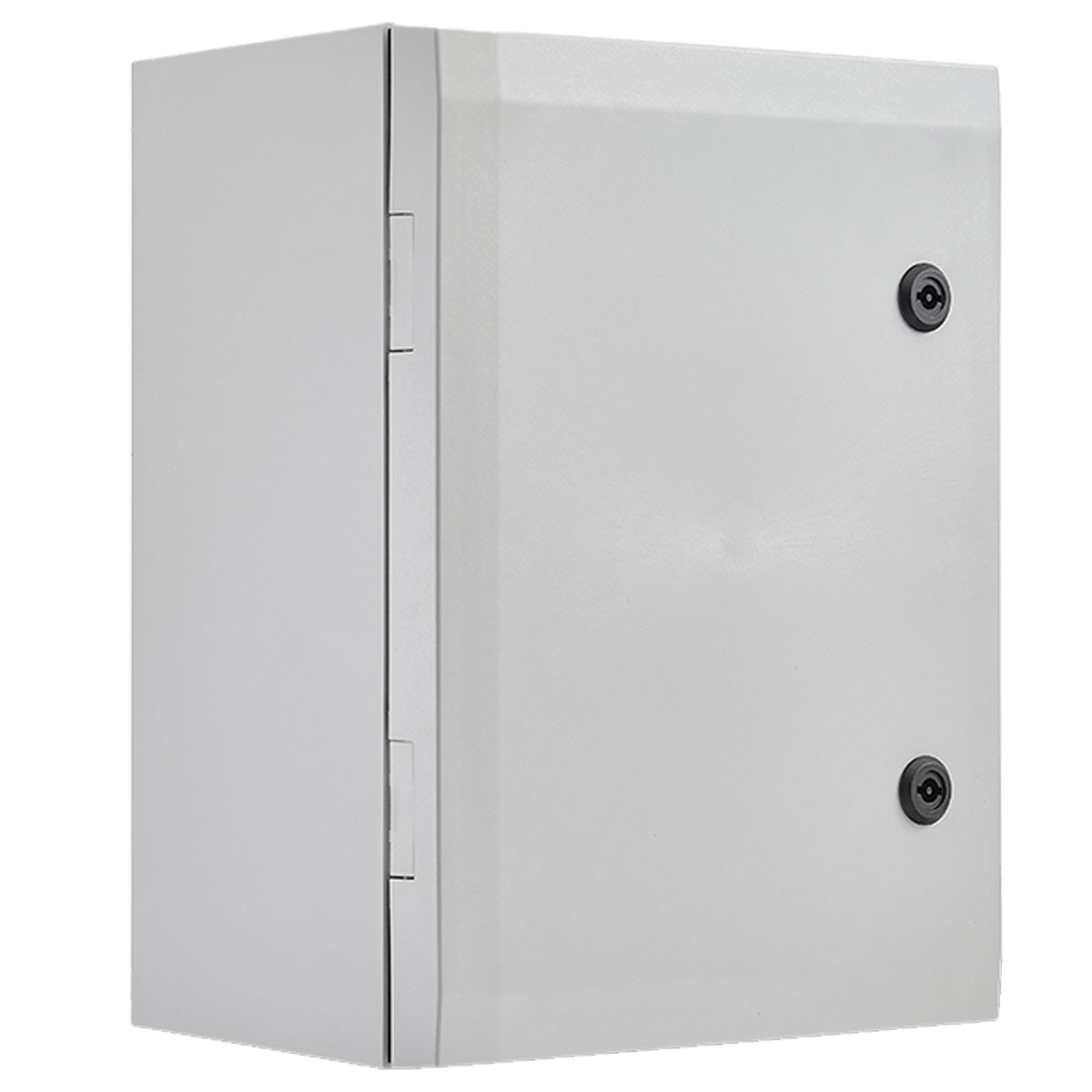

Fibox ARCA Polycarbonate Enclosure 300H x 200W x 150D IP66 with 1 Quarter Turn Lock, Including Mounting Plate — FIBOX
Fibox ARCA Polycarbonate Enclosure 300H x 200W x 150D IP66 with 1 Quarter Turn Lock, Including Mounting Plate — FIBOX

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

FIBOX

Fibox ARCA Polycarbonate Enclosure 300H x 200W x 150D IP66 with 1 Quarter Turn Lock, Including Mounting Plate

SKU
$169.99 ex. GST $195.49 inc. GST
Restocking
Stock on hand
Auckland WarehouseMāngere, AUK 2022
0 in stock
Updated just now
Shipping & pickup →
Free Shipping

Ask an expert!

Chat Email 0800 876 722
  • Height (mm) 300
  • Width (mm) 300
  • Depth (mm) 150
  • Material Polycarbonate
  • Colour Grey
  • IP Rating IP66
  • IK Rating IK10
  • Seal Type Polyurethane FIP
  • Lock Type 3mm Double Bit 1-Point
  • Door Type Single Door
  • Mounting Plate
  • Operating Temp -40°C to 80°C
  • Country of Origin FI
  • Standards
    • IEC 62208
    • IEC 61439-1
    • IEC 61439-4
  • Flammability Rating UL 94 5VA

The Fibox ARCA 302015 is a 300H × 200W × 150D mm polycarbonate wall-mount enclosure rated IP66 and IK10, engineered for panel builders and electrical installations in harsh and demanding environments. The ARCA series offers the structural strength of a metal cabinet with the corrosion resistance and UV stability of high-grade polycarbonate — certified to IEC 62208, IEC 61439-1, and IEC 61439-4.

Supplied complete with PUR foam-in-place gasket, 3mm double-bit 1-point lock with key, mounting plate, and door guide. Halogen-free construction (DIN/VDE 0472), UL 94 5VA flammability rating, glow wire tested to 960°C. Suitable for continuous operation from -40°C to 80°C. NEMA Type 1, 4, 4X, 12, 13 rated.

Standards & certifications

IP66Dust-tight · powerful jets IK10Impact rated NEMAUS enclosure rating IEC/EN 62208 · 614391 · 614394 Tested standards
Product Datasheet PDF Dimensional Drawing PDF CAD File STEP Declaration of Conformity PDF

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
