Euronord Polycarbonate Terminal Box Transparent Lid 200H x 360W x 151D IP66/67 — FIBOX
Euronord Polycarbonate Terminal Box Transparent Lid 200H x 360W x 151D IP66/67 — FIBOX

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

FIBOX

Euronord Polycarbonate Terminal Box Transparent Lid 200H x 360W x 151D IP66/67

SKU
$121.43 ex. GST $139.64 inc. GST
In stock
1 in stock across 1 warehouse
Free Shipping

Ask an expert!

Chat Email 0800 876 722
  • Height (mm) 200
  • Width (mm) 360
  • Depth (mm) 151
  • Material Polycarbonate
  • Colour Grey
  • IP Rating IP66/IP67
  • IK Rating IK08
  • Seal Type Polyurethane FIP
  • Lock Type Cover Screws
  • Door Type Removable Cover
  • Mounting Plate
  • Operating Temp -40°C to 80°C
  • Standards
    • IEC 62208
    • IEC 60529
    • IEC 62262
  • Flammability Rating UL 746C 5V

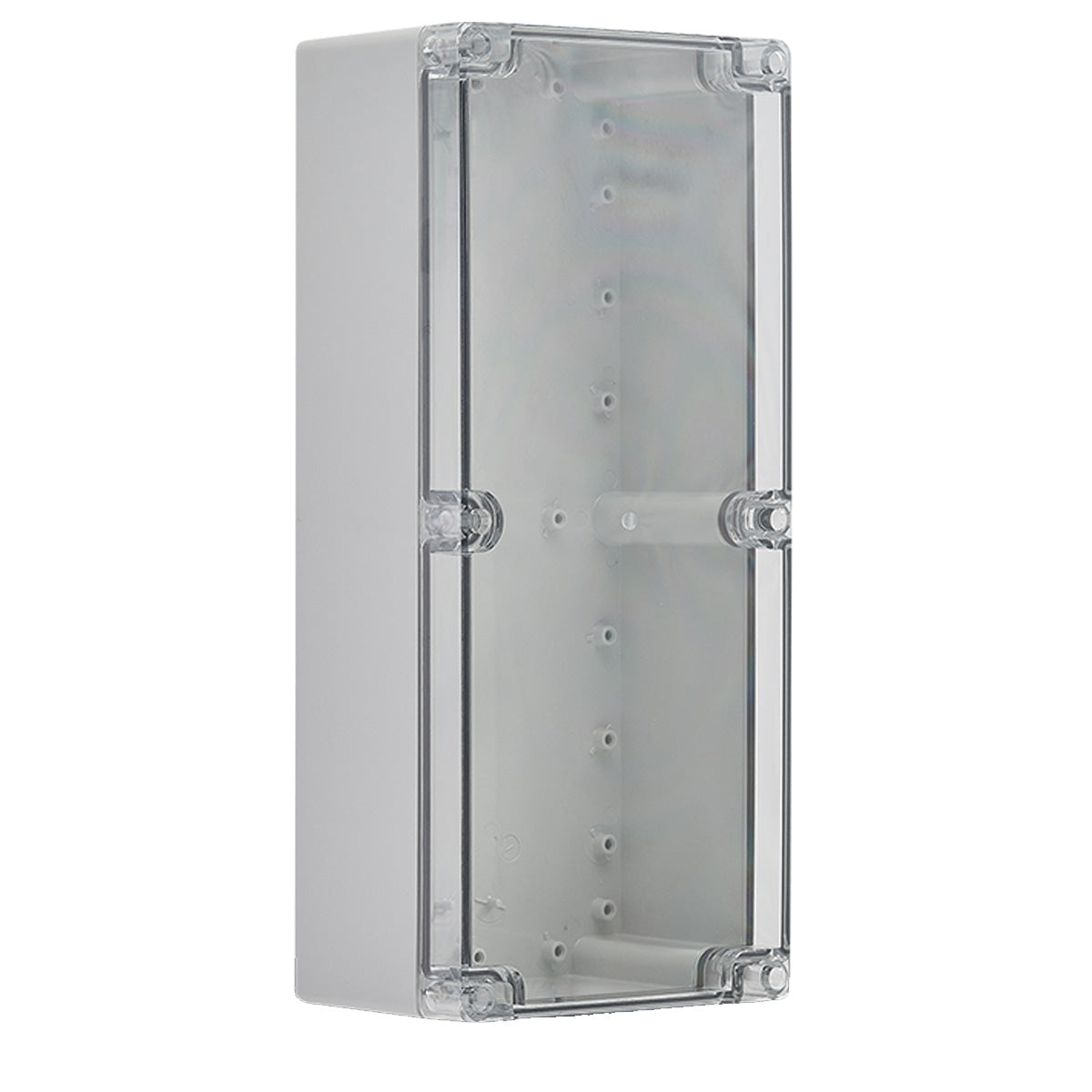

The FIBOX Euronord PCT-203615 is a large polycarbonate wall-mount enclosure with transparent polycarbonate lid, combining a generous internal volume with full visual access to internal components. Rated IP66/IP67 and IK08, it suits larger automation panels, sensor arrays, and multi-component terminal housings in outdoor and industrial environments.

Key features

  • Polycarbonate body with transparent polycarbonate lid — full visual access without removing the cover
  • Foam-in-place polyurethane (PUR) gasket delivers a reliable IP66/IP67 seal across the full operating range
  • Ferritic stainless steel cover screws; secure, tool-required fastening
  • Base accepts mounting plate and DIN-rail inserts (screws included)
  • NEMA 1, 4, 4X, 12, 13 rated; SGS Fimko certified
  • Halogen-free; UV-stabilised material

Technical specifications

External dimensions (H × W × D) 200 × 360 × 151 mm
IP rating IP66 / IP67
IK rating IK08
Operating temperature −40°C to +80°C continuous
Material Polycarbonate body, transparent polycarbonate lid
Gasket Polyurethane foam-in-place (FIP)
Cover fastening Stainless steel cover screws
Flammability UL 746C 5V
Standards IEC 62208, IEC 60529, IEC 62262
NEMA 1, 4, 4X, 12, 13
EAN 6418074058713

Stocked in Australia. Contact the TROPAC team for volume pricing or technical support.

Standards & certifications

IP66Dust-tight · powerful jets IP67Temporary immersion IK08Impact rated IEC 60529Ingress protection NEMA 4XUS enclosure rating IEC/EN 62208 · 62262 Tested standards
Declaration of Conformity PDF

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
