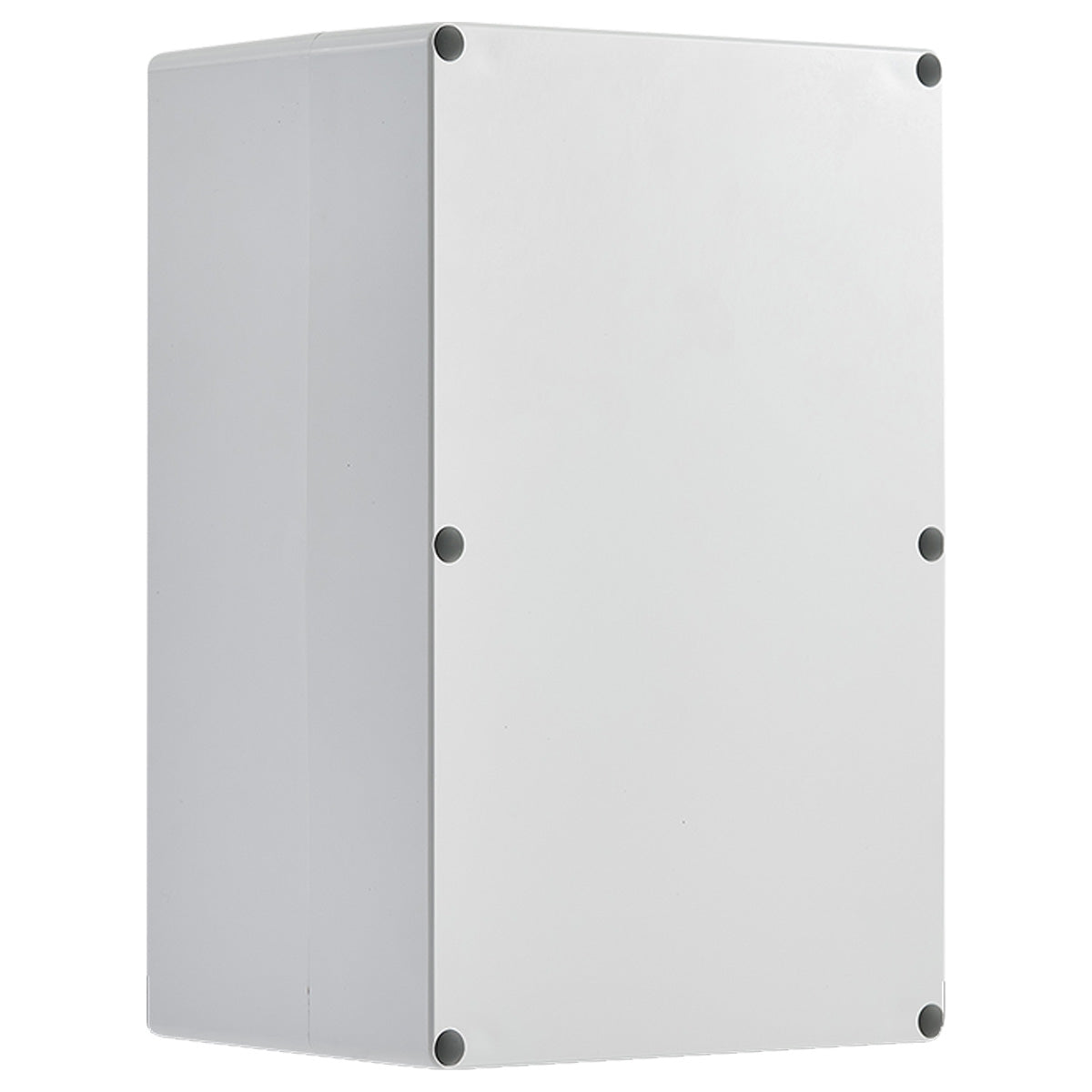

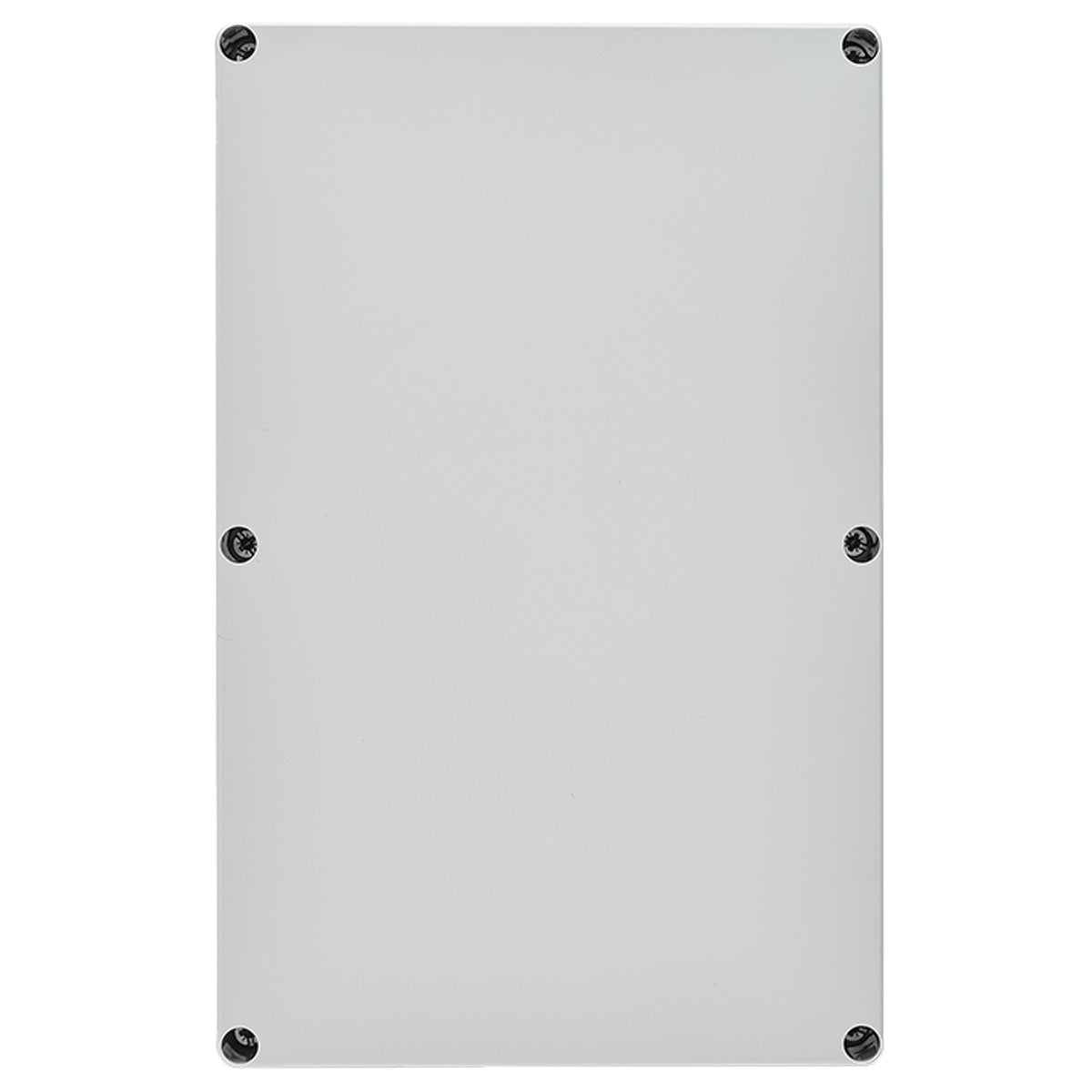

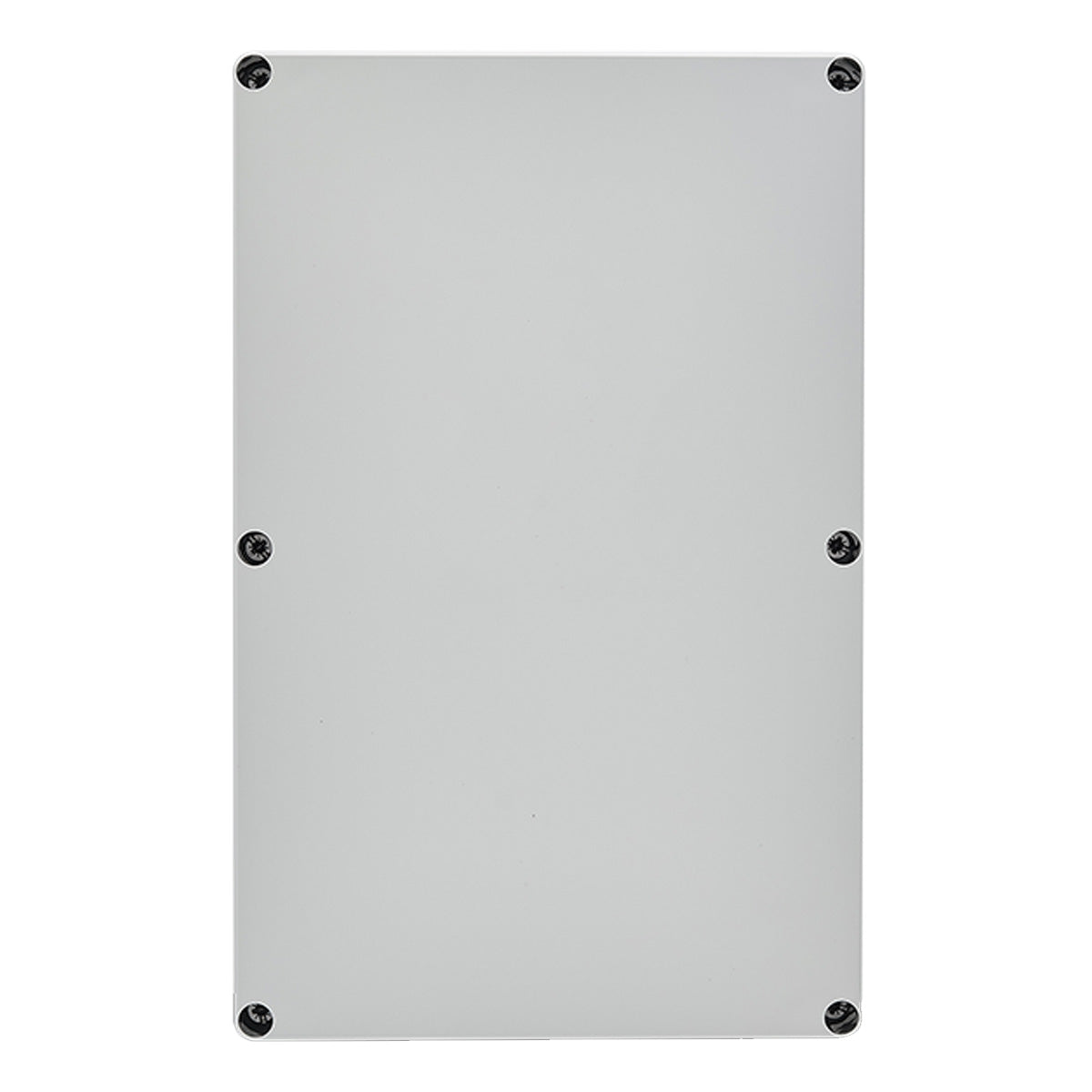

Euronord Polycarbonate Terminal Box Grey Lid 230H x 300W x 110D IP66/67
Regular price
$90.17
ex. GST
$103.70
inc. GST
In stock
28 in stock
across 1
warehouse
Free Shipping
Ask an expert!
- Height (mm)
- Width (mm)
- Depth (mm)
- Material
- Colour
- IP Rating
- IK Rating
- Seal Type
- Lock Type
- Door Type
- Mounting Plate
- Operating Temp
- Standards
- Flammability Rating
The FIBOX Euronord PC-233011 is a large polycarbonate wall-mount enclosure with grey lid, providing ample internal space for terminal blocks, DIN-rail components, and instrumentation in demanding industrial and outdoor environments. Rated IP66/IP67 and IK08, it suits applications requiring both high ingress protection and resistance to mechanical impact.
Key features
- Polycarbonate construction — lightweight, corrosion-resistant, and electrically insulating
- Foam-in-place polyurethane (PUR) gasket delivers a reliable IP66/IP67 seal across the full operating range
- Ferritic stainless steel cover screws; removable grey (RAL 7035) lid
- Base accepts mounting plate and DIN-rail inserts (screws included)
- NEMA 1, 4, 4X, 12, 13 rated; SGS Fimko certified
- Halogen-free; UV-stabilised material
Technical specifications
| External dimensions (H × W × D) | 230 × 300 × 110 mm |
|---|---|
| IP rating | IP66 / IP67 |
| IK rating | IK08 |
| Operating temperature | −40°C to +80°C continuous |
| Material | Polycarbonate, RAL 7035 light grey |
| Gasket | Polyurethane foam-in-place (FIP) |
| Cover fastening | Stainless steel cover screws |
| Flammability | UL 746C 5V |
| Standards | IEC 62208, IEC 60529, IEC 62262 |
| NEMA | 1, 4, 4X, 12, 13 |
| EAN | 6418074003713 |
Stocked in Australia. Contact the TROPAC team for volume pricing or technical support.
Standards & certifications
IP66Dust-tight · powerful jets
IP67Temporary immersion
IK08Impact rated
IEC 60529Ingress protection
NEMA 4XUS enclosure rating
IEC/EN 62208 · 62262
Tested standards
TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
