Din Rail Power Supply 240W 24V 10A — Versch
Din Rail Power Supply 240W 24V 10A — Versch

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Versch

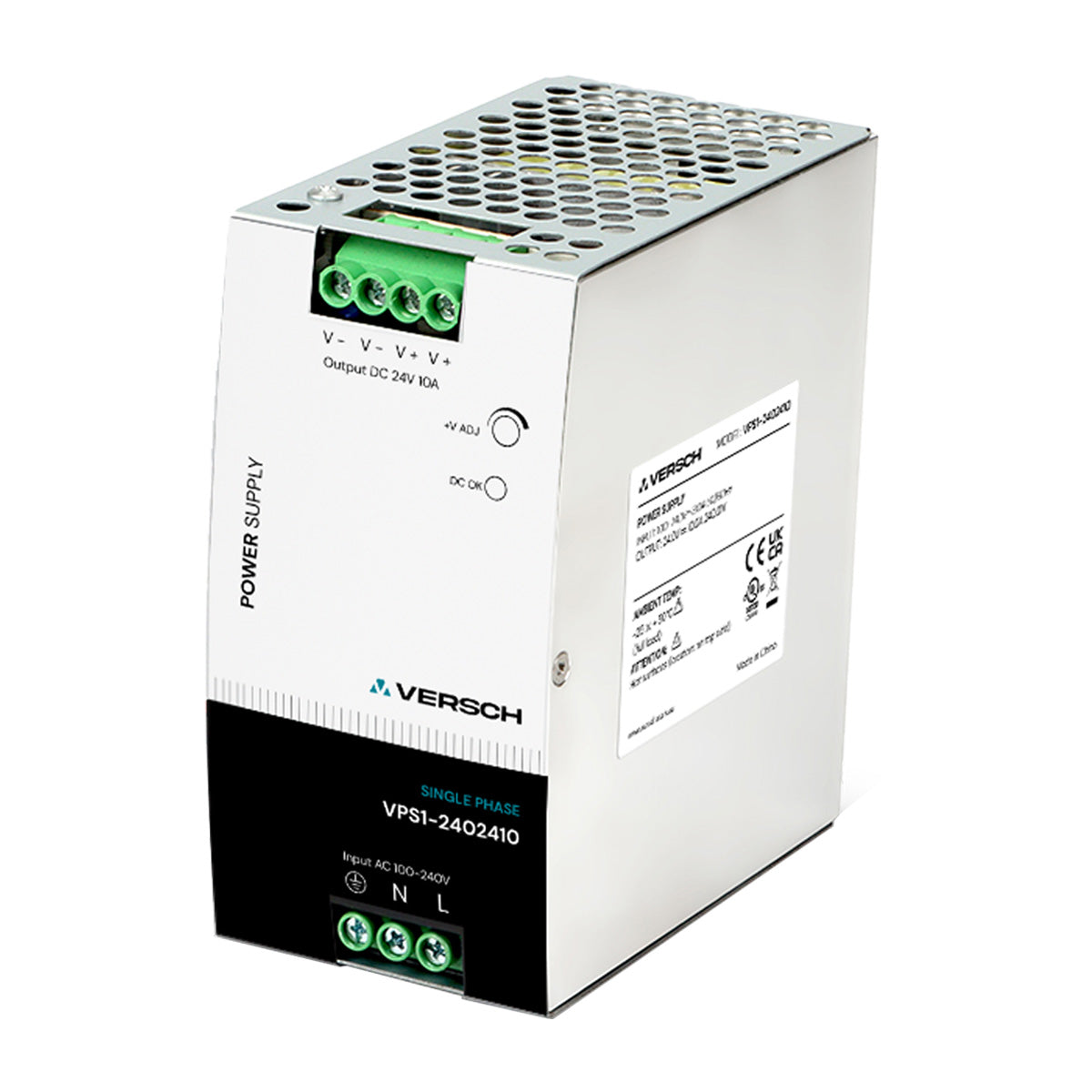

Din Rail Power Supply 240W 24V 10A

SKU
$135.21 ex. GST $155.49 inc. GST
In stock
17 in stock across 1 warehouse
Free Shipping

Ask an expert!

Chat Email 0800 876 722
  • Voltage 24V
  • Current 10A
  • Size 240W

Din Rail Power Supply 240W 24V 10A

VERSCH metal case power family designed with slim housing and for full range AC input from 90V AC to 264V AC.
The series are single phase PSU, providing adjustable DC output voltage. They have high efficiency and operate in wide temperature
range. The series can widely used for industrial automation & control systems, varied equipments etc.

Electrical Characteristics

Model No. VPS1-2402410
DC Voltage 24V
Rated Current 10A
Rated Power(Max) 120W
Ripple & Noise(Max) 150mVp-p
Input Voltage 90 - 264VAC 127-370VDC
Inrush Current 20A/115VAC 35A/230VAC
Efficiency 85.50%
Working Temperature -20~+70 C(Refer to “Derating Curve“)
Withstand Voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Protection Short Circuit/Over Load/Over Voltage/Over Temperature
Connection I/P:3 poles terminal Block, O/P: 4 poles terminal Block
