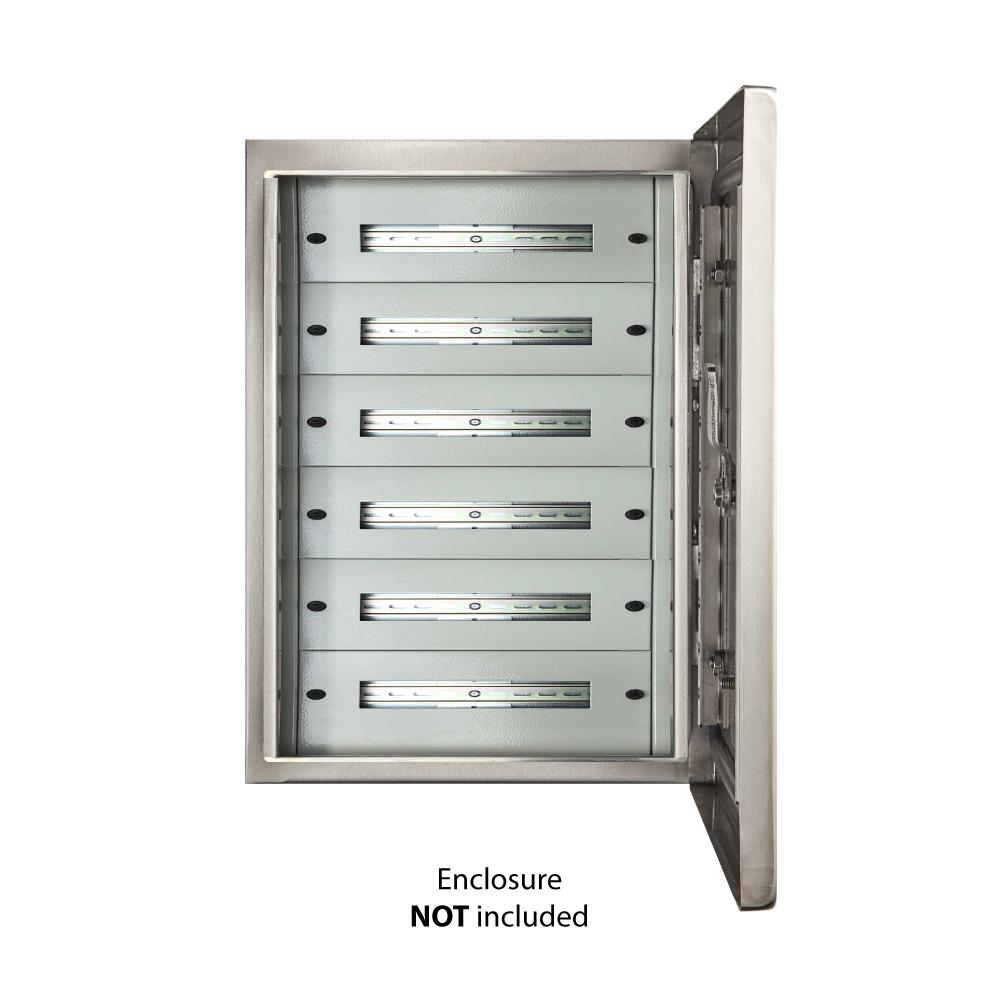

Din Rail Kit 144 Pole to suit 1000H x 600W x 200D Enclosure
IP Enclosures Distribution Kits are designed to be easily fitted to IP Enclosures steel and stainless steel electrical enclosures without drilling. The separate internal chassis frame can be fitted with components and wired prior to assembly into the enclosure. The removable escutcheon plates provide protection to the full perimeter of the enclosure.
Features & Specifications
Size:
DB Kit 144 Pole to suit 1000H x 600W x 200D Enclosure, 6 x 24 Pole
Materials:
Chassis Material: Galv Sheet Steel
Escutcheon Plates: Galv Sheet Steel, Powder Coated.
Slotted Din Rail Material:
Electrogalvanised Steel 7.5 x 35 x 2m RoHS Compliant. High quality DIN Rail manufactured from electrogalvanized steel for increased corrosion resistance. Standard 35mm wide symmetrical TS35 DIN Rail compatible with EN50022 and DIN46277-3.
Plating: ALKALI ZINC Cr+3 TOP COAT (10-12 Microns).
Standards: DIN5022, DIN5033, EN60715. RoHS Compliant.
Dimensions: 7.5 mm deep x 35 mm wide x 2000mm long.
Colour: Silver.
Type: TS35 Slotted
Surface Treatment:
UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour FALSE.
