Chrome Quarter Turn 5mm Double Bit Lock for Electrical Enclosures

SKU
$10.11 ex. GST $11.63 inc. GST
Restocking
Stock on hand
Auckland WarehouseMāngere, AUK 2022
0 in stock
Updated 1 minute ago
Shipping & pickup →
Free Shipping

Ask an expert!

Chat Email 0800 876 722
  • Material Chrome
  • Colour Chrome
  • IP Rating IP65

Chrome Quarter Turn 5mm Double Bit Lock for Electrical Enclosures

FEATURES

– Specially designed internal spring provides 1.5 mm of compression.
– Cam does not rotate beyond quarter turn due to stop lip.

MATERIAL

HOUSING: Zamak DIN-EN 1774-ZnAl4Cu1
DRIVER: Zamak DIN-EN
CAM: Steel
GASKET: Rubber
FINISH: Chrome
IP RATING: IP65

DRIVERS

IP-L001: 5mm Double Bit

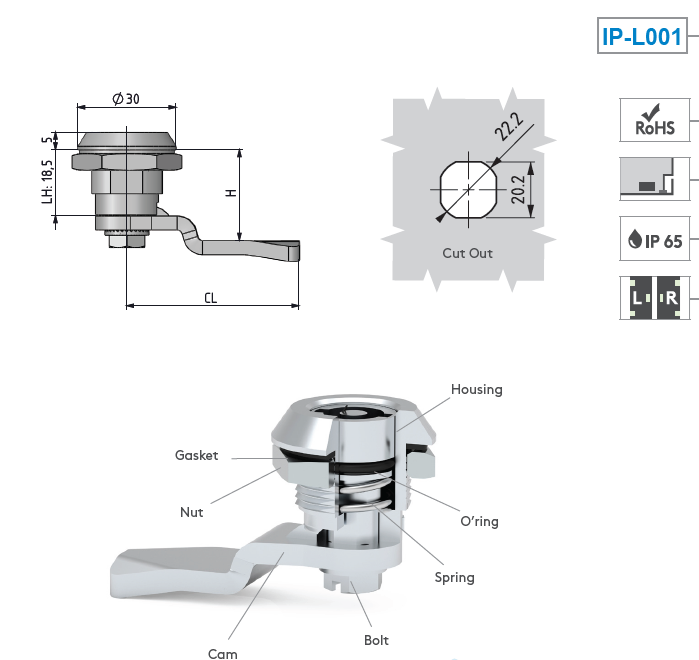

DIMENSIONS

H=25.5mm

CL=49mm

Standards & certifications

IP65Dust-tight · water jets
