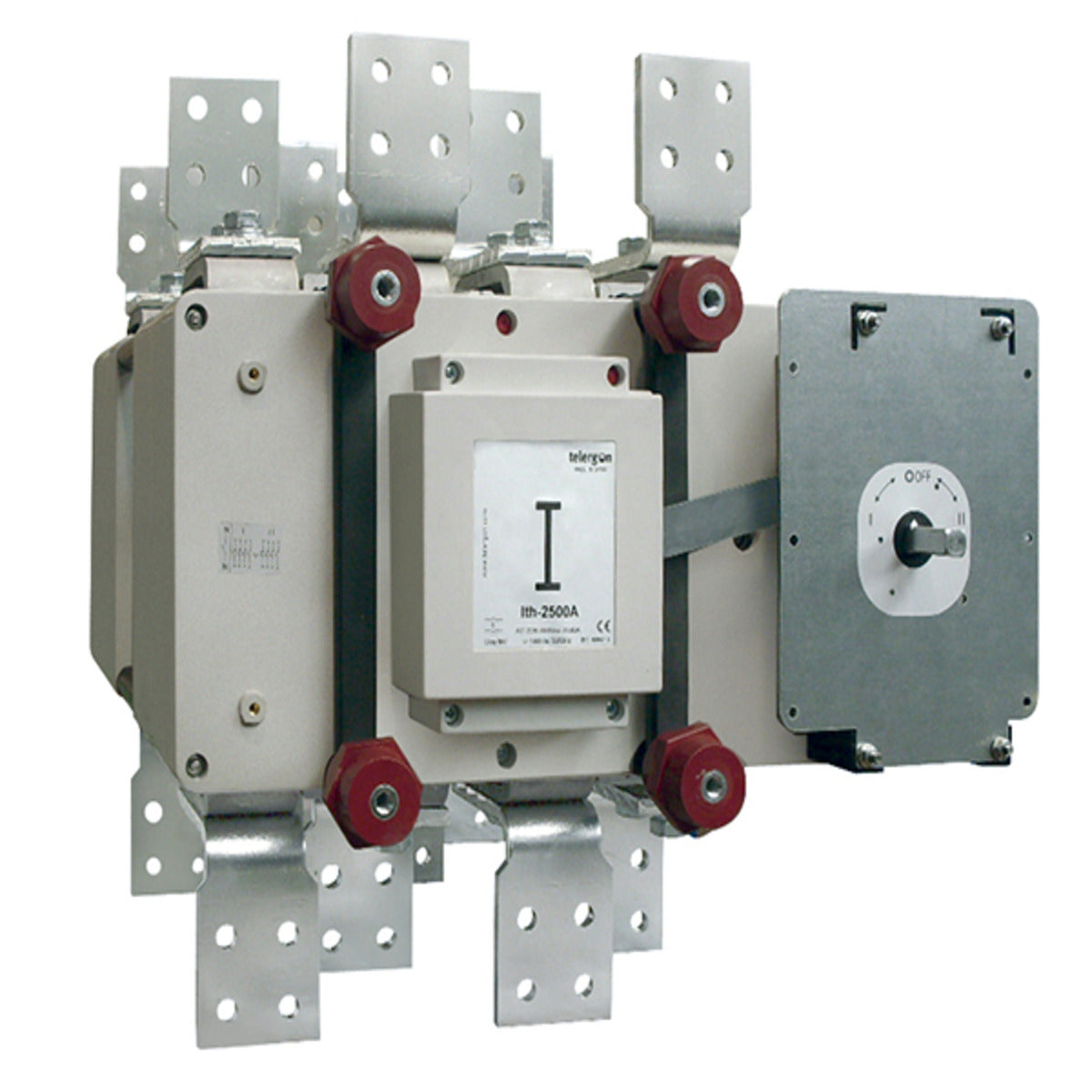

Changeover Switch S5F 2500A 3P+N Prefitted With Bridges (HANDLE ORDERED SEPARATELY)

S5F 2500A 3P+N Manual Changeover Switch

Rated for 2500A thermal current, this Telergon S5F changeover switch delivers heavy-duty 1-0-2 power transfer between two independent circuits, with a compatible motorised operator kit for remote-controlled switching in critical power applications.

Features and Specifications

Current Rating: 2500A (Ith).
Configuration: 3P+N (4-pole), Case Size 5.
Operation: Manual 1-0-2 changeover.
Standards (& Conformities): IEC 60947-1, IEC 60947-3.

Construction:

Short-circuit making capacity (Icm) 100kA, short-time withstand (Icw) 50kA for 1 second. Connection via 2x10/80mm copper bar, tightening torque 55N·m.

Handle:

Panel handle D5LEN51 — compatible with the UM-C55230M motorised unit kit for remote operation.

What's Included: Switch body only.

Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to the product datasheet for full technical specifications before ordering.
