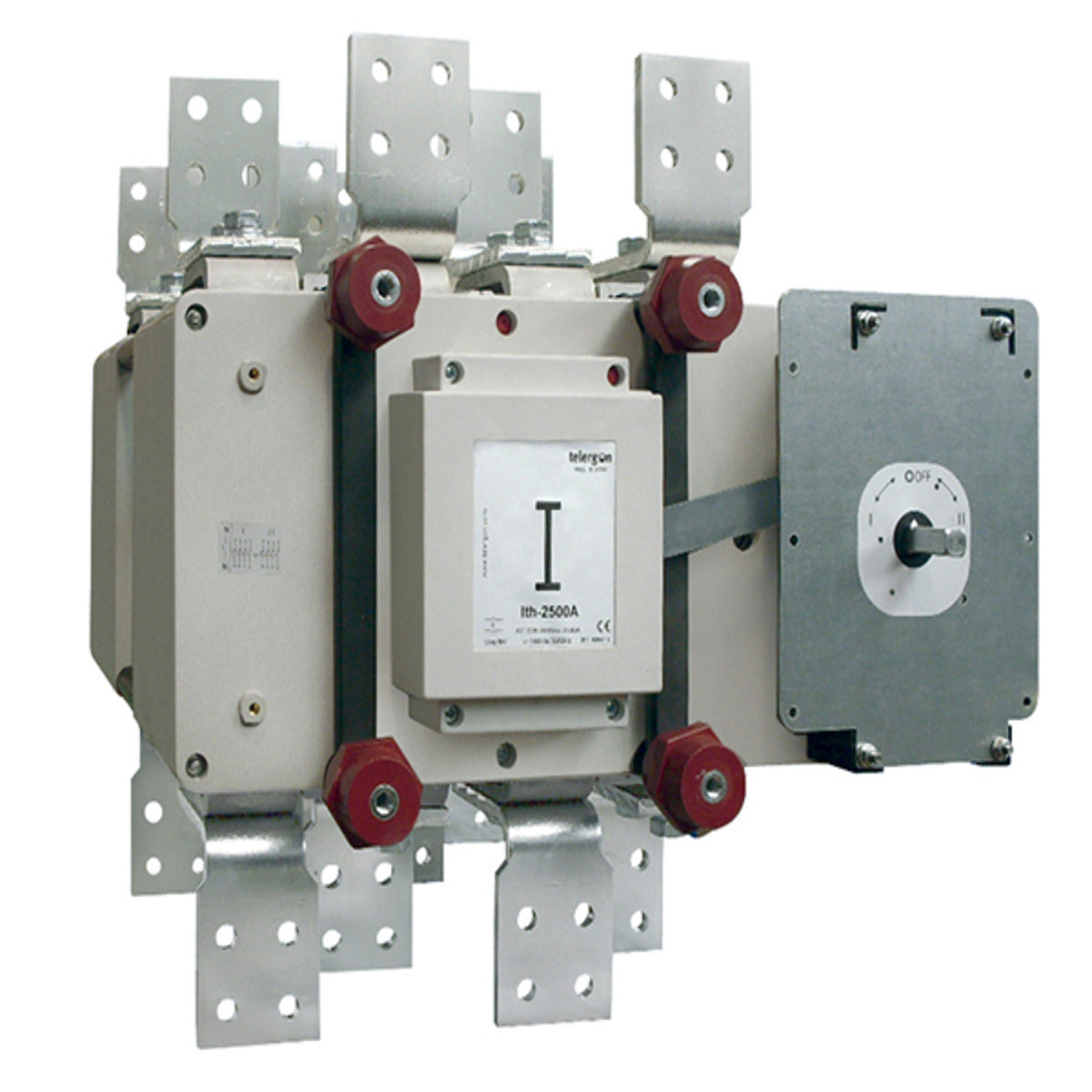

Changeover Switch S5F 2000A 3P+N Prefitted With Bridges (HANDLE ORDERED SEPARATELY)

S5F 2000A 3P+N Manual Changeover Switch

Rated for 2000A thermal current, this Telergon S5F changeover switch delivers heavy-duty 1-0-2 power transfer between two independent circuits — built for switchboard and generator backup applications where high-frequency switching under full load is routine.

Features and Specifications

Current Rating: 2000A (Ith, −30°C to +50°C).
Configuration: 3P+N (4-pole), Case Size 4.
Operation: Manual 1-0-2 changeover.
Standards (& Conformities): IEC 60947-1, IEC 60947-3. Approved by IPH Berlin.

Construction:

High thermal resistance contact design maintains integrity during short-circuit events; short-circuit making capacity (Icm) 75kA, short-time withstand (Icw) 50kA for 1 second. Connection via 2x10/80mm copper bar, tightening torque 55N·m. Weight 47.3kg (3P+N).

Handle:

Supplied prefitted with bridging links. Handle ordered separately — compatible with the S5F 1600A-2000A external IP65 handle range.

What's Included: Switch body with prefitted bridges. Handle not included — order separately.

Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to the product datasheet for full technical specifications before ordering.
