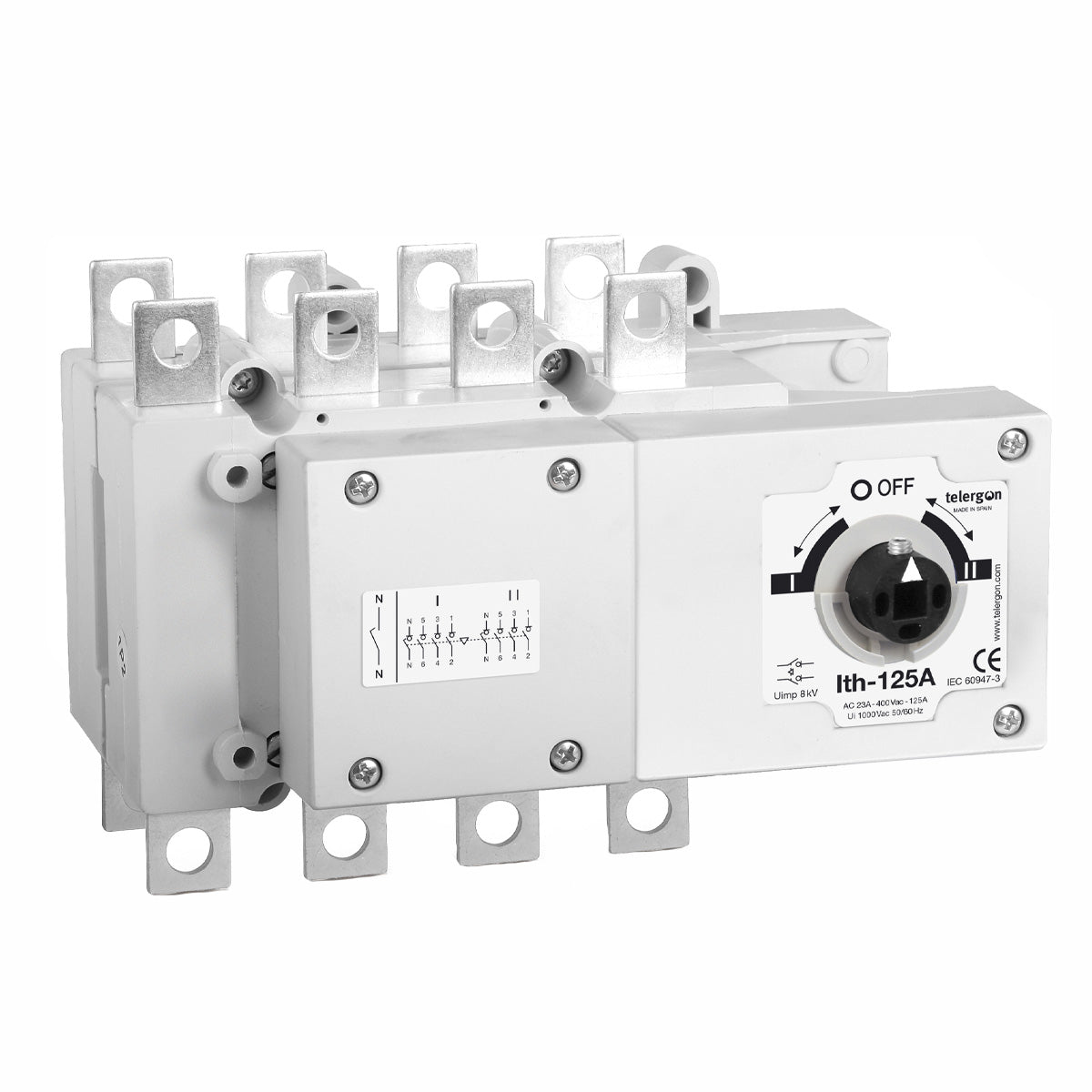

Changeover Switch S5F 125A 3P+N Prefitted With Bridges (HANDLE ORDERED SEPARATELY)

S5F 125A 3P+N Manual Changeover Switch

Rated for 125A thermal current, this Telergon S5F changeover switch delivers compact 1-0-2 power transfer between two independent circuits — suited to small switchboards and generator backup panels.

Features and Specifications

Current Rating: 125A (Ith, −30°C to +50°C).
Configuration: 3P+N (4-pole), Case Size 0.
Operation: Manual 1-0-2 changeover.
Standards (& Conformities): IEC 60947-1, IEC 60947-3.

Construction:

Short-circuit making capacity (Icm) 13kA, short-time withstand (Icw) 7kA for 1 second. Connection via 5/25mm copper bar, tightening torque 13N·m. Rated for 8000 operating cycles without load. Weight 2.1kg (4-pole case).

Handle:

Supplied prefitted with bridging links. Handle ordered separately — compatible with the S5F 125A–200A external IP65 handle range.

What's Included: Switch body with prefitted bridges. Handle not included — order separately.

Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to the product datasheet for full technical specifications before ordering.
