Air Conditioner Indoor Wall Mounted 230V 350W with Alarm, Door Interlock, RS485 Interface — IP Enclosures
Air Conditioner Indoor Wall Mounted 230V 350W with Alarm, Door Interlock, RS485 Interface — IP Enclosures

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

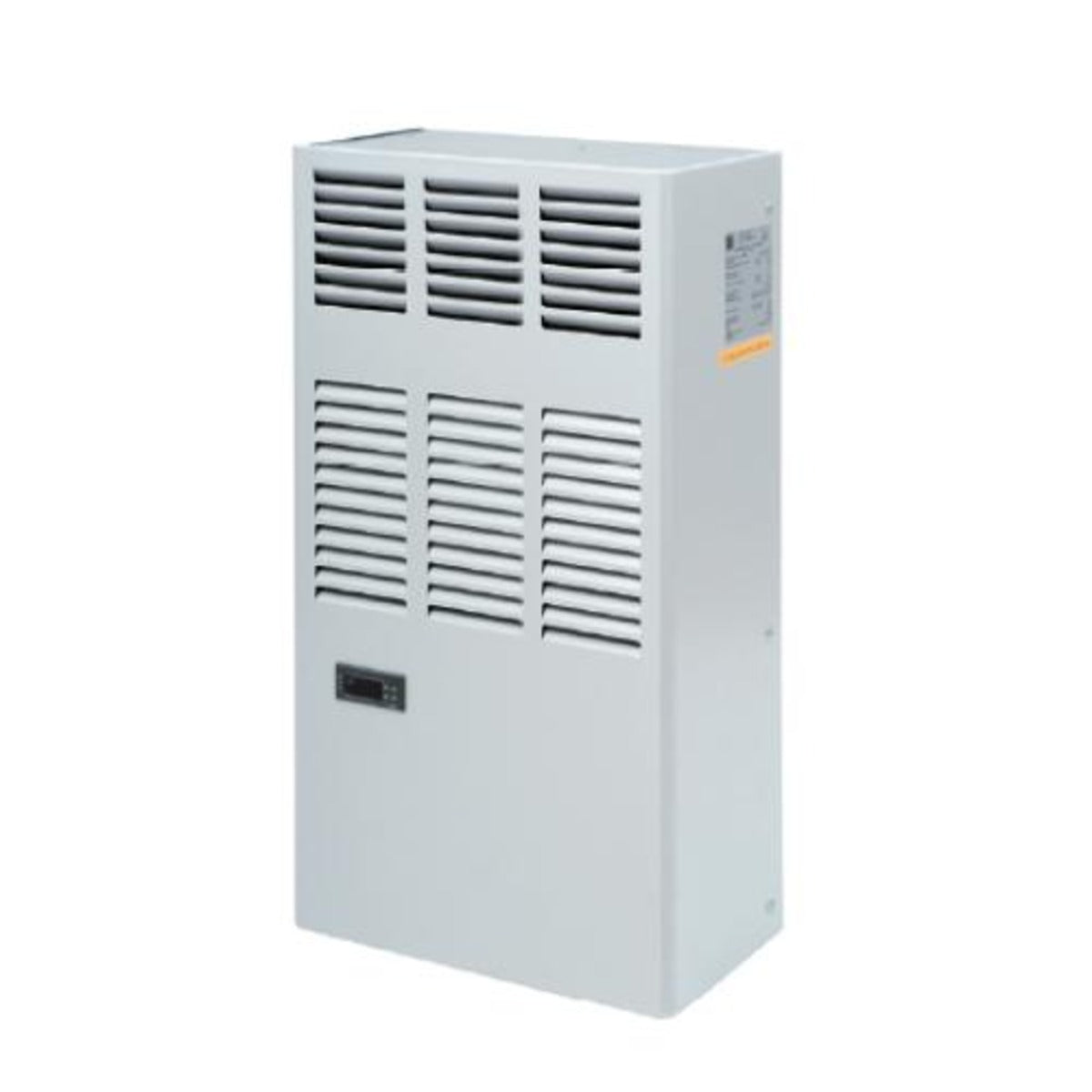

Air Conditioner Indoor Wall Mounted 230V 350W with Alarm, Door Interlock, RS485 Interface

SKU
$3,458.71 ex. GST $3,977.52 inc. GST
In stock
4 in stock across 1 warehouse
  • Type Wall Mount
  • Material Steel
  • IP Rating IP54
  • Voltage 230V
  • kW Rating 350W

Air Conditioner Indoor Wall Mounted 230V 350W with Alarm, Door Interlock, RS485 Interface

IP Enclosures Italian vertical-mount compact air conditioners designed for the cooling needs of indoor electrical cabinets. They are optimised for door or side-panel mounting and have been designed for high efficiency and low maintenance.

Features Unit IP-ACIWM035.001
Power supply V/Hz 230V/1ph/50-60
Dimensions HxWxD mm 430x280x170
Cooling capacity EN814 A35A35 W 350/370
Cooling capacity EN814 A35A50 W 200/220
Air fow rate (free blow)
inside m³/h 350/390
outside m³/h 600/625
Max current A 1.8/1.9
Delayed fuse A 4
Absorbed electric power EN814 A35A35 W 260/270
Absorved electric power EN814 A35A50 W 280/300
Refrigerant (type/charge) kg R134a/0
Maximum Pressure bar 25
Operating temperature (ambient) °C +20/+55
Operating temperature (enclosure) °C +20/+45
Temperature controller (factory set at 35°C) – Digital thermostat
Compressor type – Rotative compressor
Noise level dB(A) 60
Electrical connection – Three-pole connector
Protection degree EN60529/1 enclosure inside – IP54
Protection degree EN60529/1 ambient inside – IP34
Weight (with packaging) kg 15(16)
Colour – RAL 7035
Conformity/Certifications – CE

Standards & certifications

IP54Dust-protected · splashing
Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG CAD File STEP

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
