316 Stainless Steel Electrical Cabinet 1860H x 800W x 400D IP55
Ask an expert!
- Height (mm)
- Width (mm)
- Depth (mm)
- Material
- IP Rating

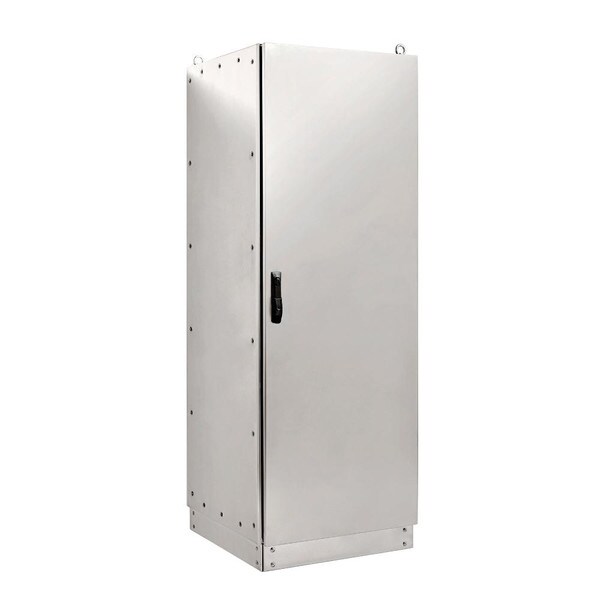

316 Stainless Steel Electrical Cabinet 1860H x 800W x 400D IP55
This 1860×800×400 mm IP55 enclosure is sized for full MCC panel builds and main switchboard assemblies.
Features and Specifications
Protection: IP55 IK10. (Independent accredited test laboratory)
Standards (& Conformities): IEC 62208, IEC/EN/AS60529, RoHS
Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switchgear and controlgear assemblies’.
Material:
– Main Frame: 2.0mm Grade 316 Stainless Steel W Profile System
– Side, Rear & Roof Panels: 1.2mm Grade 316 Stainless Steel
– Front Door: 2.0mm Grade 316 Stainless Steel
– Mounting Plates: 2.0mm Galvanised Steel Sheet
– Seal: EPDM

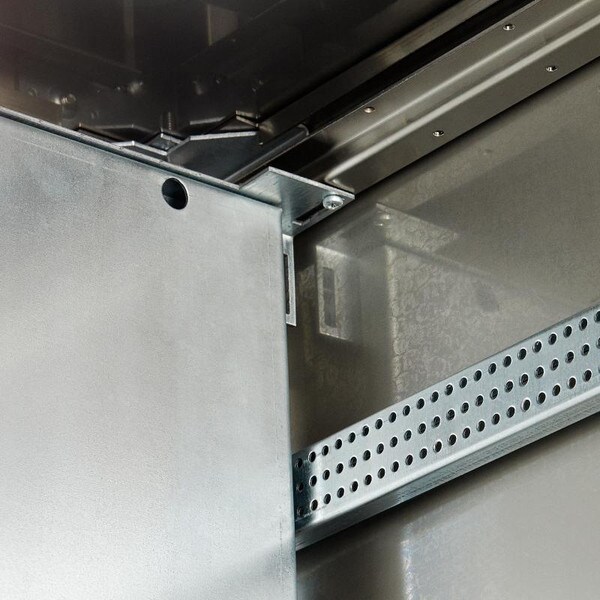

Enclosure Main Frame:
The robust modular main structure is fabricated using 2.0mm Grade 316 Stainless Steel W Profile system with 20mm hole pattern according to DIN43660.

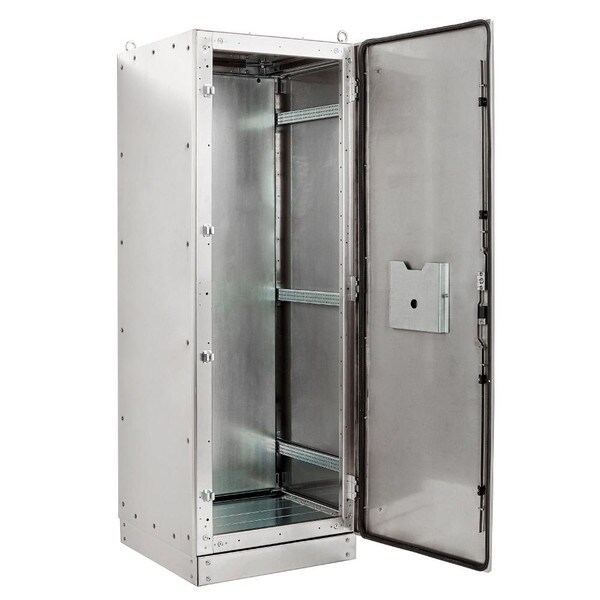

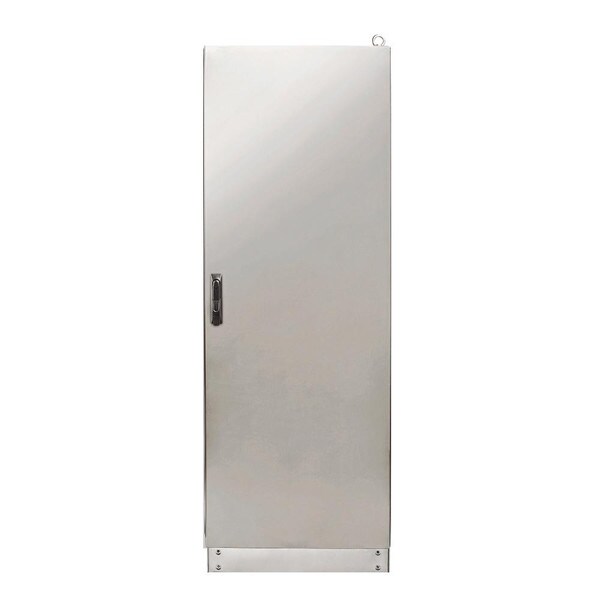

Enclosure Door:
The robust door is fabricated using 2.0mm Grade 316 Stainless Steel and incorporates four concealed reversible hinges allowing left or right hand opening. The door is designed for a 135° opening. Each door contains integral cable management rails with 20mm hole pattern, M6 earth stud and provision for a document pocket.
Enclosure Side, Rear and Roof Panels:
Removable panels are fabricated using 1.2mm Grade 316 Stainless Steel.
Enclosure Base:
Base is 100mm
Enclosure Door Seal:
High quality EPDM replaceable door seal.
Enclosure Lock:
4 point locking system with key-lock swing handle.
Enclosure Device Mounting Plate:
The device mounting plate is fabricated using 2.0mm mm galvanised steel sheet, pressed to provide additional strength.
Earthing:
All panels are earthed to provide earthing continuity.
Surface Finish:
0.4 micron Ra surface brushed finish
Available through TROPAC, stocked in QLD, NSW and VIC. Free shipping on all AU & NZ online orders — terms apply.
Note: Please choose product carefully. Product selection is the responsibility of the 'Purchaser'. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.
Standards & certifications
IP55Dust-protected · water jets
TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
