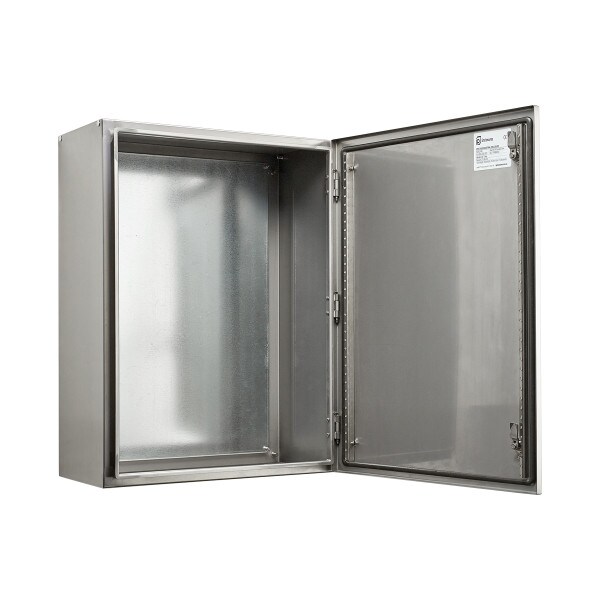

316 Stainless Steel Electrical Enclosure 600H x 400W x 300D IP66
Measuring 600H × 400W × 300D mm with IP66 protection, this enclosure suits motor starter and overload relay housings in marine grade applications.
Features and Specifications
Protection: IP66 IK10.
Standards (& Conformities): IEC 62208, IEC/EN/AS60529, RoHS.
Material:
Body: 1.5mm Grade 316 Stainless Steel
Door: 1.5mm Grade 316 Stainless Steel
Device Mounting Plate: 1.5mm galvanised steel sheet
Seal: Polyurethane
Enclosure Body:
The robust monoblock body is fabricated using 1.5mm Grade 316 Stainless Steel. Flat face sealing surfaces are provided to increase seal life. Integral device plate mounts, M6 earth studs and welded mounting feet are incorporated. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.
Enclosure Door:
The robust surface mounted door is fabricated using 1.5mm Grade 316 Stainless Steel and incorporates concealed removable hinges with captive pins. The door is designed for a 110 opening. Each door contains an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal.
Enclosure Seal:
A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40C to 80C (160C short term loading).
Enclosure Lock:
Stainless Steel 8mm square drive quarter turn lock with key.
Device Mounting Plate:
The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.
Surface Treatment:
2B Mill Finish.
Available through TROPAC, stocked in QLD, NSW and VIC, stocked in Auckland, stocked in the UK. Free shipping on all AU & NZ online orders — terms apply.
Note: Please choose product carefully. Product selection is the responsibility of the 'Purchaser'. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.
Standards & certifications
IP66Dust-tight · powerful jets
IEC/EN/AS60529Ingress protection
CEEU conformity
UKCAUK conformity
ULUS safety listed
NEMAUS enclosure rating
RoHSHazard-free
IEC/EN 62208 · 61439
Tested standards
