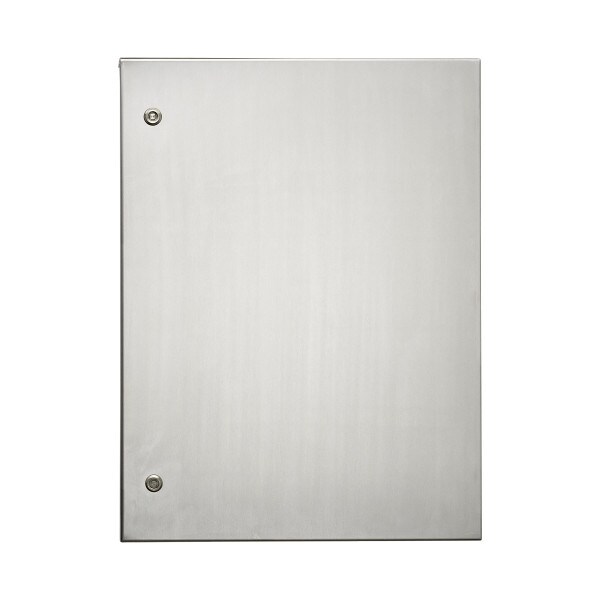

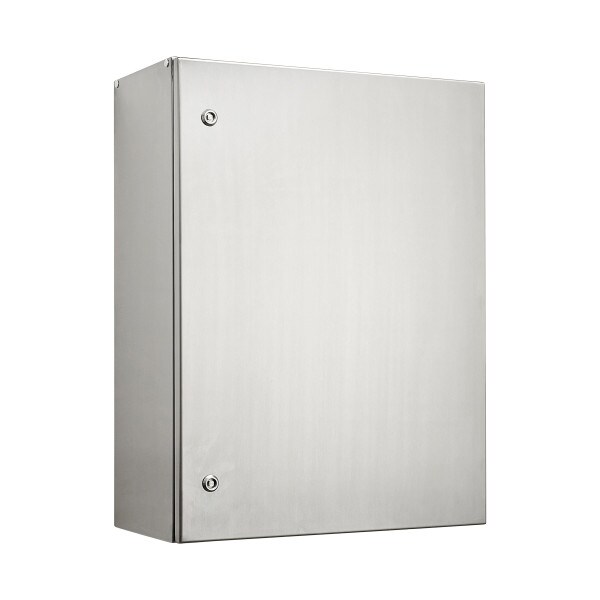

316 Stainless Steel Electrical Enclosure 1000H x 600W x 300D IP66

316 Stainless Steel Electrical Enclosure 1000H x 600W x 300D IP66

At 1000 × 600 × 300mm, this SS1 wall-mount enclosure suits switchboards, motor-control and power-distribution assemblies in coastal, marine and washdown environments where dust, water ingress or impact would otherwise compromise the equipment inside. Grade 316 stainless steel construction rated to IP66 IK10.

Features and Specifications

Protection: IP66 IK10, NEMA 4X (Independent accredited test laboratory).

Standards (& Conformities): IEC/EN 62208, IEC/EN/AS60529, IEC/EN 61439, UL, RoHS, CE, UKCA.

Construction

A robust monoblock 1.5mm Grade 316 stainless steel body with flat-face sealing surfaces and pre-fitted blind nutserts eliminates field drilling and retains IP integrity. Concealed removable hinges with captive pins allow a 110° door opening. A machine-applied full-perimeter UL listed polyurethane seal foamed in place (FIP) provides continuous sealing rated to −40°C to +80°C (160°C short-term).

Surface Treatment

0.4µm Ra brushed (4B) finish on external stainless surfaces — no applied coating.

What's Included: Enclosure body, door with FIP polyurethane seal, 1× device mounting plate (pre-fitted), gland plate with gasket and fasteners, M6 earth studs.

Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.

TROAPC's standard warranty covers all products. The standard 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
