Electrical Enclosure 800H x 600W x 300D IP66 Grey

Electrical Enclosure 800H x 600W x 300D IP66 Grey

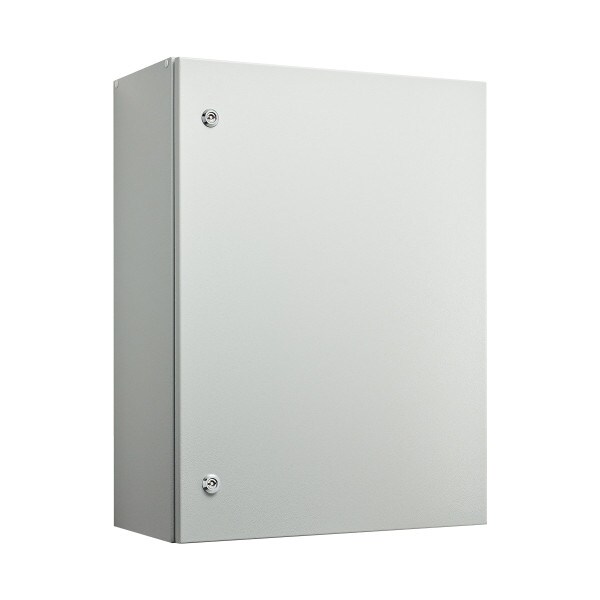

At 800 × 600 × 300mm in RAL7035 grey, this S1 wall-mount enclosure suits switchboards, motor-control and power-distribution assemblies in heavy industrial and outdoor installations where dust, water ingress or impact would otherwise compromise the equipment inside. Powder-coated galvanised steel construction rated to IP66 IK10.

Features and Specifications

Protection: IP66 IK10, NEMA 4 (Independent accredited test laboratory).

Standards (& Conformities): IEC/EN 62208, IEC/EN/AS60529, IEC/EN 61439, UL, RoHS, CE, UKCA.

Construction

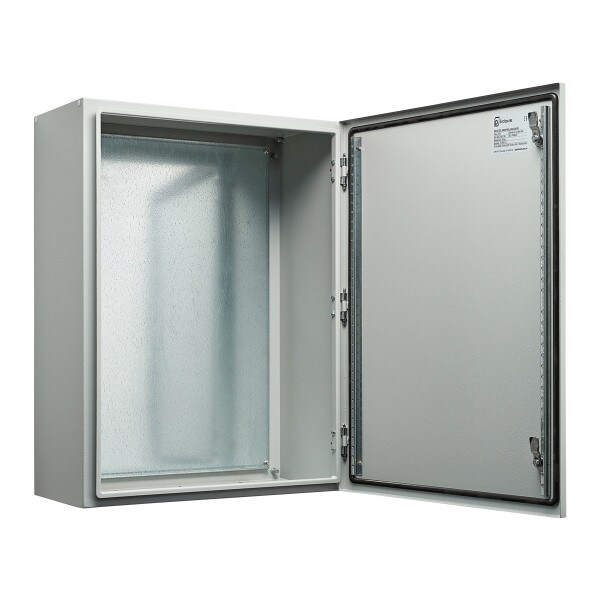

A robust monoblock galvanised steel body with flat-face sealing surfaces and pre-fitted blind nutserts eliminates field drilling and retains IP integrity over the enclosure's working life. Concealed removable hinges with captive pins allow a full 110° door opening. A machine-applied full-perimeter UL listed polyurethane seal foamed in place (FIP) provides continuous sealing rated to −40°C to +80°C, with 160°C short-term loading tolerance.

Surface Treatment

UL approved AkzoNobel epoxy polyester powder coat applied with a textured finish at 80–120 microns. A full range of RAL colours is available on request.

What's Included: Enclosure body, door with FIP polyurethane seal, 1× device mounting plate (pre-fitted), gland plate with gasket and fasteners, M6 earth studs.

Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
