Anti-Condensation Heater 150 Watt
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details

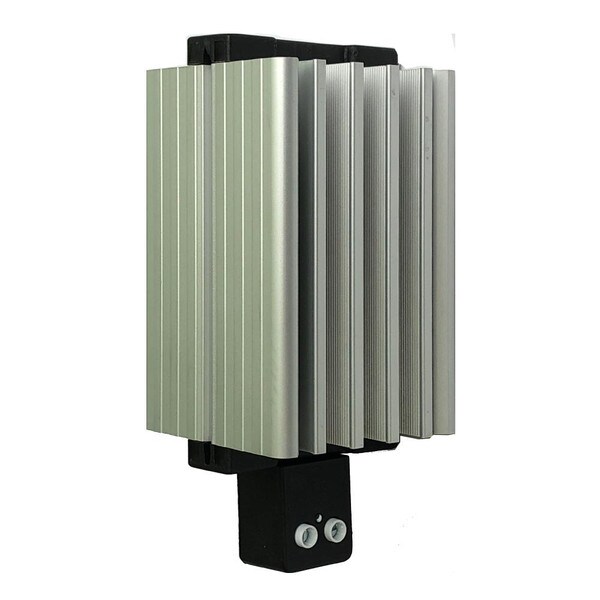

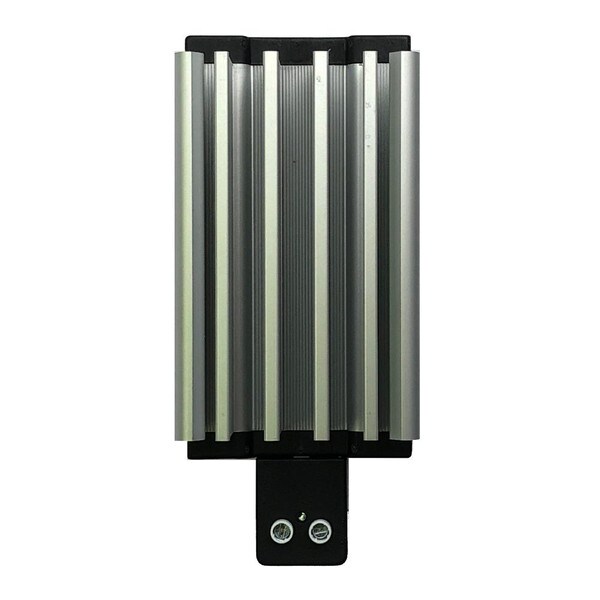

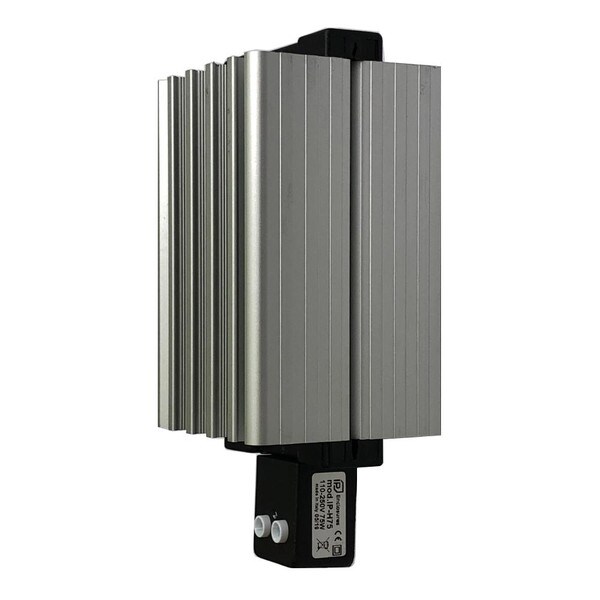

Anti-Condensation Heater 150 Watt
Compact Heater - H Range
IP Enclosures Compact Heaters with minimum DIN rail foot-print. Made in Italy.
| Features | Unit | IP-H150 |
|---|---|---|
| Heating Capacity* | W | 150 |
| Power supply | V | 110-250V AC or DC |
| Inrush current | A | 9.5 |
| Delayed fuse (advised) | A | 10 |
| Heating element type | - | PTC resistor self regulating |
| Electrical connections | - | 2 screw terminals for stranded or rigid wire 2.5 mm2 |
| Protection class IEC | - | Class II |
| Protection degree EN60529 | - | IP20 |
| Operating temperature | C (F) | -45/+70 (-49/+158) |
| Storage temperature | C (F) | -45/+80 (-49/+176) |
| Radiator | - | Extruded aluminium profile |
| Mounting | - | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | - | Best efficiency in vertical position |
| Dimensions HxWxD | mm | 220x59x61 |
| Weight | kg | 0.57 |
| Conformity | - | CE - UL  |
| *at 20C (68F) ambient temperature |
Note: Please choose product carefully. Product selection is the responsibility of the 'Purchaser'. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.
