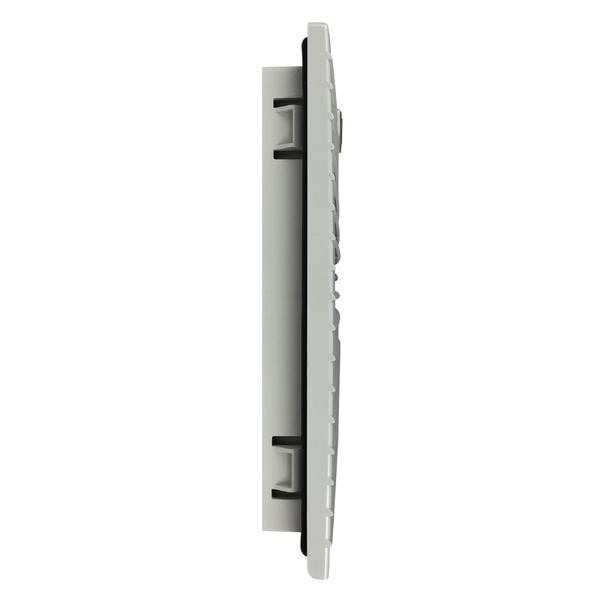

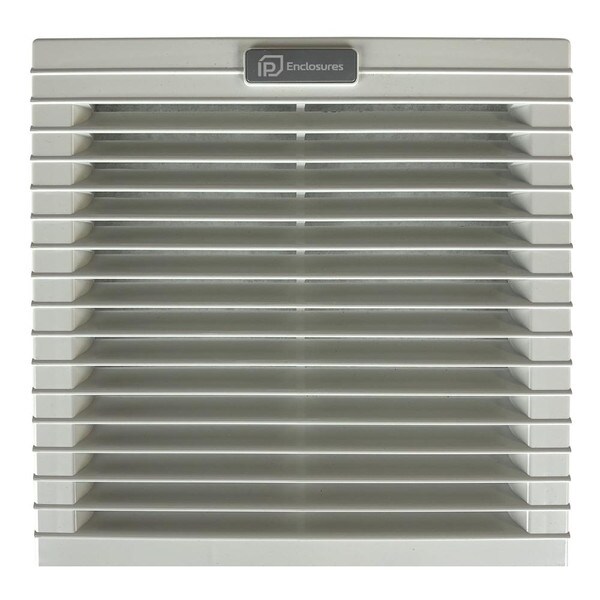

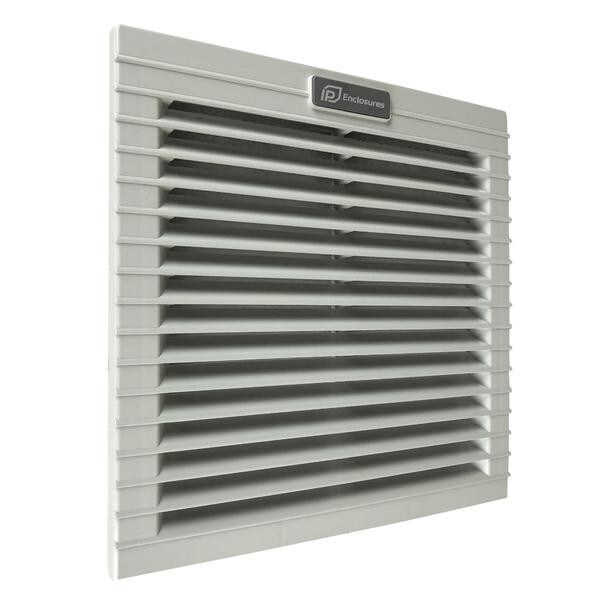

Filter Vent 250 x 250

High quality Italian vent filter grille for electrical enclosures. Designed for easy front access maintenance for fast filter mat cleaning and replacement.

G3 Filter Mat Included.

FeaturesUnitIP-V4000
Air flow rate (free blow)m³/h-
Flow rate with exit filterm³/h-
Power supplyV/Hz-
Dimensions HxLxPmm250x250x38
Power consumptionW-
Current consumptionA-
Overcurrent consumption--
Electric connection--
Duty cycle--
Operating temperature°C- 10 / +70 (+14 / +158)
Protection degree/class-IP54
Noise leveldB(A)-
Flow direction--
Bearing--
Filter mat (Eurovent)-G3
Service life (at 40°C)hr-
Material-ABS UL94V-0 Color RAL7035
Wall thicknessmm1.2-2.4
Gasket-foam seal gasket
Weight (with packaging)kg0.52(0.62)
Package dimensionsmm270x270x45
Montaggio-fast clip-on
Cut-Out dimensionsmm224x224
Conformity/Approvals-CE



Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.
