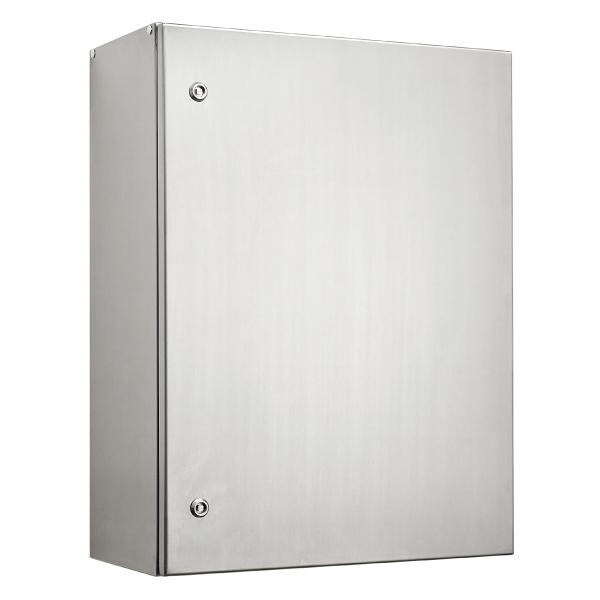

316 Stainless Steel Electrical Enclosure 800H x 600W x 200D IP66
Purpose-sized at 800H × 600W × 200D mm, this IP66 enclosure accommodates heavy-duty MCC panels in water treatment and pumping stations.
Features and Specifications
Protection: IP66 IK10, NEMA 4x (Independent accredited test laboratory).
Standards (& Conformities): IEC 62208, IEC/EN/AS60529, (UL 508A Optional), RoHS
Material:
Body: 1.5mm Grade 316/316L Stainless Steel (Optional 304)
Door: 1.5mm Grade 316/316L Stainless Steel (Optional 304)
Device Mounting Plate: 1.5mm Galvanised Steel Sheet
Seal: Polyurethane
Surface Finish:
0.4 micron Ra surface brushed finish
Enclosure Body:
The monoblock body is fabricated using 1.5mm Grade 316/316L Stainless Steel. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling and retain IP rating. Integral device plate mounts and M6 earth studs are provided. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.
Enclosure Door:

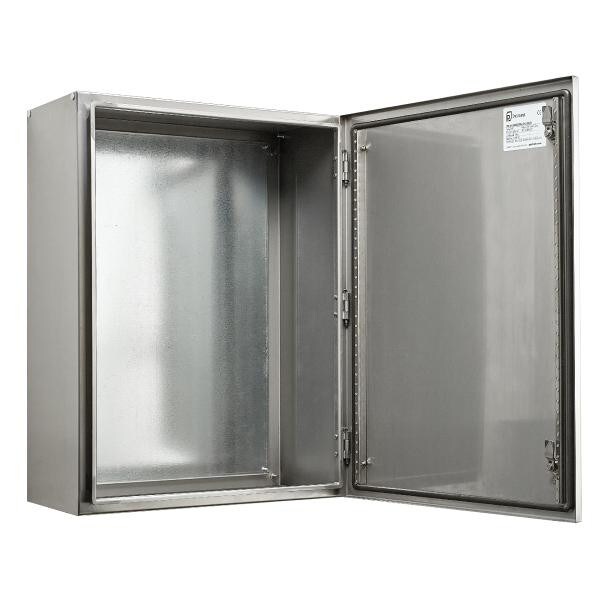

The robust surface mounted door is fabricated using 1.5mm Grade 316/316L Stainless Steel and incorporates concealed removable hinges with captive pins. The door is designed for a 110 opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal. Two internal cable management rails can be removed to provide additional space for equipment, duct and door mounted control components.
Enclosure Seal:
A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40C to 80C (160C short term loading).
Enclosure Lock:
Grade 316 Stainless Steel 8mm square drive quarter turn lock with key.
Device Mounting Plate:
The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.
Available through TROPAC, stocked in QLD, NSW and VIC, stocked in the UK. Free shipping on all AU & NZ online orders — terms apply.
Note: Please choose product carefully. Product selection is the responsibility of the 'Purchaser'. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.
Standards & certifications
IP66Dust-tight · powerful jets
IEC/EN/AS60529Ingress protection
CEEU conformity
UKCAUK conformity
ULUS safety listed
NEMAUS enclosure rating
RoHSHazard-free
IEC/EN 62208 · 61439
Tested standards
TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
