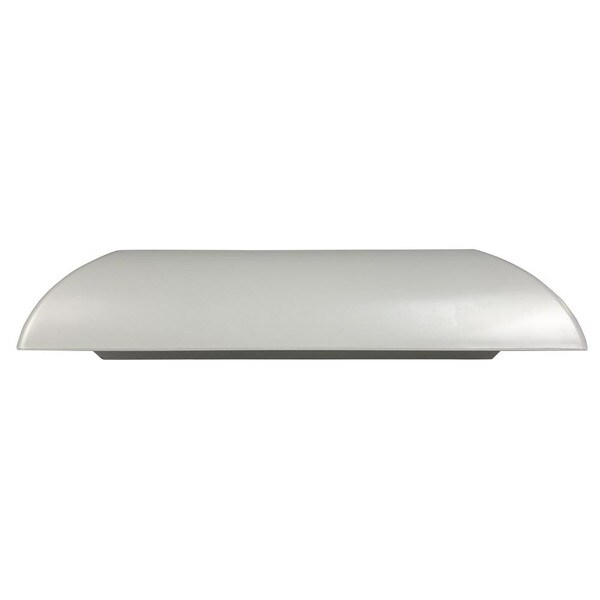

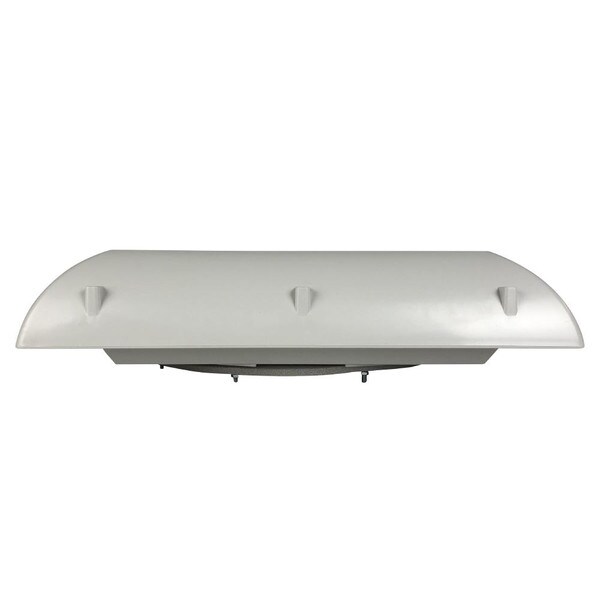

Roof Fan and Vent for Electrical Cabinet 860m3/h 400 x 350 x 102
Details
Roof Fan and Vent for Electrical Cabinet 860m3/h 400 x 350 x 102
Roof Fan and Vent for Electrical Cabinets 860m3/h 400 x 350 x 102 230V-50/60Hz
High quality Italian roof fan and vent unit for electrical enclosures.
Features | Unit | IP-RFV2 |
---|---|---|
Air flow rate (free blow) | m³/h | 860(950) |
Flow rate with exit filter | m³/h | 580(640) |
Power supply | V/Hz | 230/50-60 |
Dimensions HxLxP | mm | 400x350x102 |
Power consumption | W | 85(115) |
Current consumption | A | 0.43(0.50) |
Overcurrent protection | – | thermal |
Electric connection | – | 4-pole terminal 2.5 mm² |
Duty cycle | – | 100% |
Operating temperature | °C | -10/+70 |
Protection degree enclosure side | – | IP44 |
Protection class | – | Class I |
Noise level | dB(A) | 72(73) |
Flow direction | – | inside-out |
Bearing | – | ball |
Service life (at 40°C) | hr | 50.000 |
Material | – | ABS UL94V-0 Color RAL7035 |
Gasket | – | polythene |
Weight (with packaging) | kg | 4.00(4.20) |
Package dimensions | mm | 410x360x130 |
Mounting | – | screws |
conformity/Approvals | – | CE |
