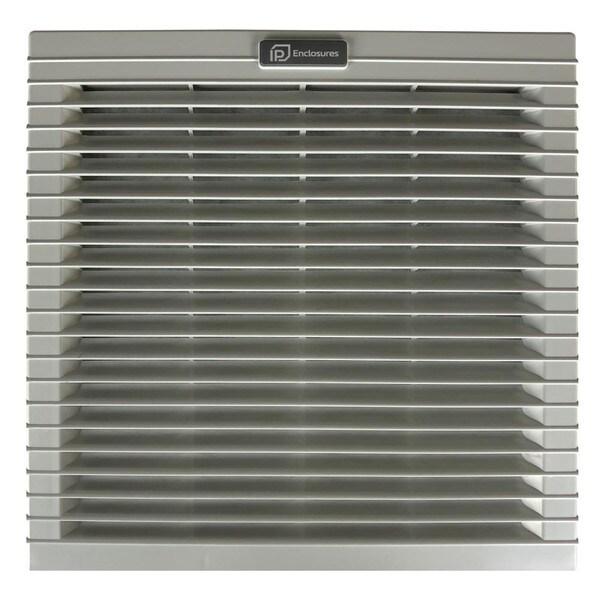

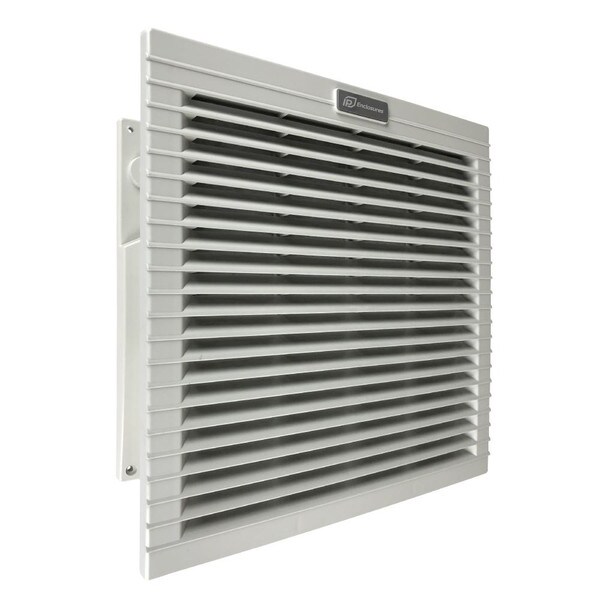

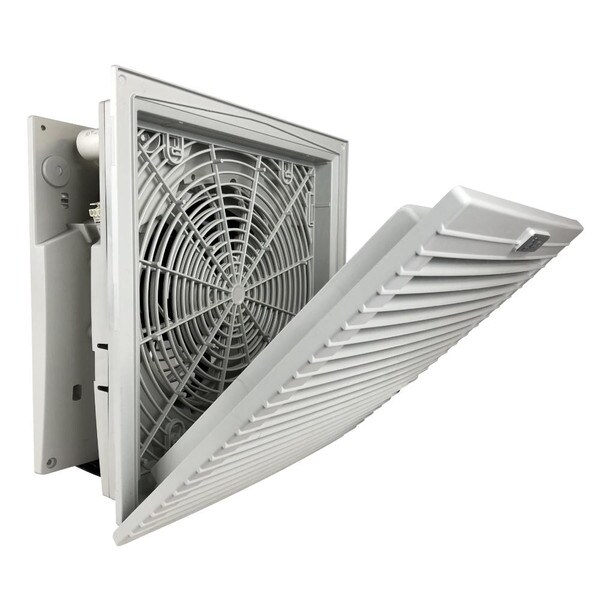

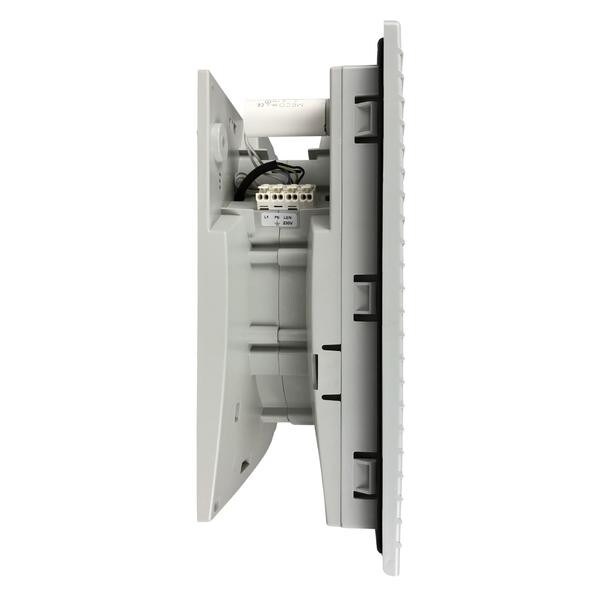

Filter Fan 325 x 325 550m3/hr 230V

Images are for reference only. Refer to datasheets and drawings for accurate specifications.

$401.98
 inc. GST
SKU: IP-V5400

This item is IN STOCK

Current Stock: 4

NZ: 4 in stock
Back

Details

Filter Fan 325 x 325 550m3/hr 230V

High quality Italian filter fan unit for electrical enclosures.

G3 Filter Mat Included.

FeaturesUnitIP-V5400
Air flow rate (free blow)m³/h550 (620)
Flow rate with exit filterm³/h405 (450)
Power supplyV/Hz230 / 50-60
Dimensions HxWxDmm325x325x140
Power consumptionW70 (90)
Current consumptionA0.40 (0.38)
Overcurrent consumption–thermal
Electric connection–3-poles spring terminals
Duty cycle–100%
Operating temperature°C (°F)– 10 / +70 (+14 / +158)
Protection degree/class–IP54/Class I
Noise leveldB(A)65 (68)
Flow direction–reversible: default factory setting outside-in
Bearing–ball
Filter mat (Eurovent)–G3
Service life (at 40°C)hr50 000
Material–ABS UL94V-0 Color RAL7035
Wall thicknessmm1.2-2.4
Gasket–foam seal gasket
Weight (with packaging)kg3.00 (3.25)
Package dimensionsmm340x340x180
Mounting–fast clip-on
Cut-Out dimensionsmm291×291
Conformity/Approvals–CE
