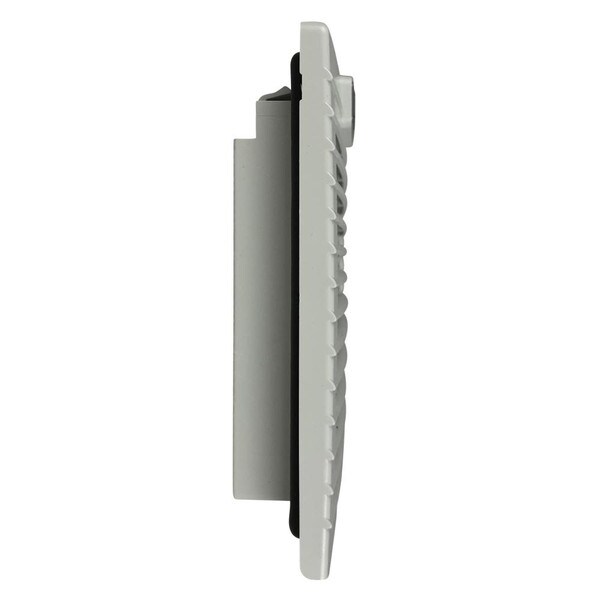

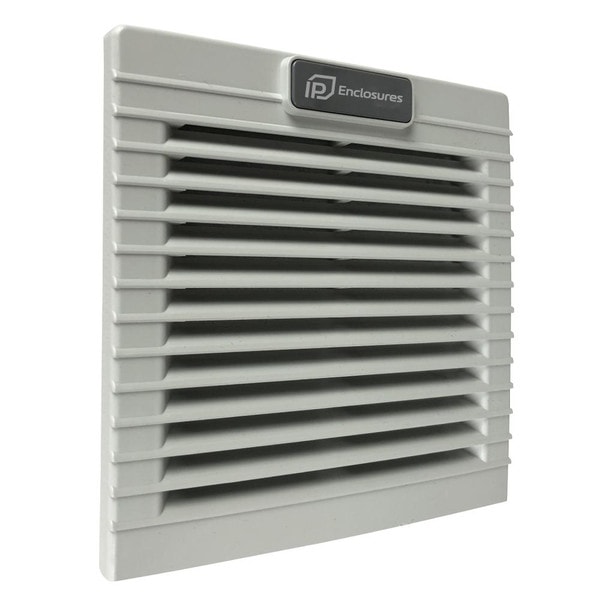

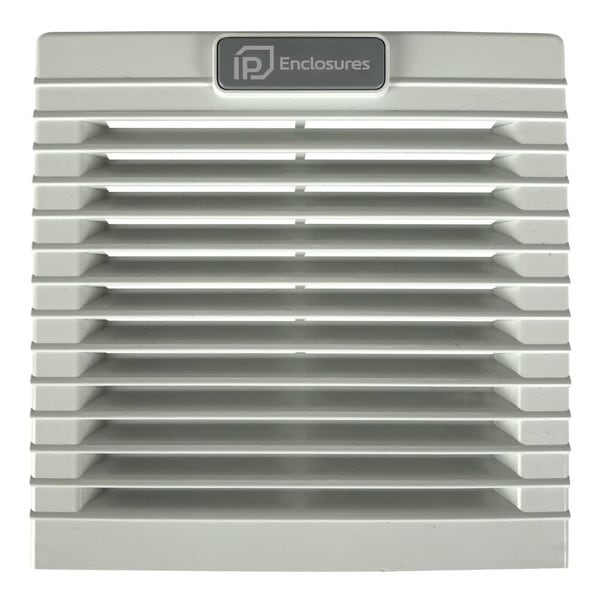

Filter Vent 114 x 114

Images are for reference only. Refer to datasheets and drawings for accurate specifications.

$21.73
 inc. GST
SKU: IP-V1000

This item is IN STOCK

Current Stock: 14

NZ: 14 in stock
Back

Details

Filter Vent 114 x 114

High quality Italian vent filter grille for electrical enclosures. Designed for easy front access maintenance for fast filter mat cleaning and replacement.

G3 Filter Mat included.

FeaturesUnitIP-V1000
Air flow rate (free blow)m³/h–
Flow rate with exit filterm³/h–
Power supplyV/Hz–
Dimensions HxLxPmm114x114x27
Power consumptionW–
Current consumptionA–
Overcurrent consumption––
Electric connection––
Duty cycle––
Operating temperature°C– 10 / +70 (+14 / +158)
Protection degree/class–IP54
Noise leveldB(A)–
Flow direction––
Bearing––
Filter mat (Eurovent)–G2
Service life (at 40°C)hr–
Material–ABS UL94V-0 Color RAL7035
Wall thicknessmm1.2-2.4
Gasket–foam seal gasket
Weight (with packaging)kg0.09 (0.11)
Package dimensionsmm125x125x35
Montaggio–fast clip-on
Cut-Out dimensionsmm92×92
Conformity/Approvals–CE
