Filter Fan 250 x 250 255m3/hr 24VDC

$315.48
 inc. GST
SKU: IP-V4324

Order In - Contact Us for lead time

NZ: 0 in stock
Back

Details

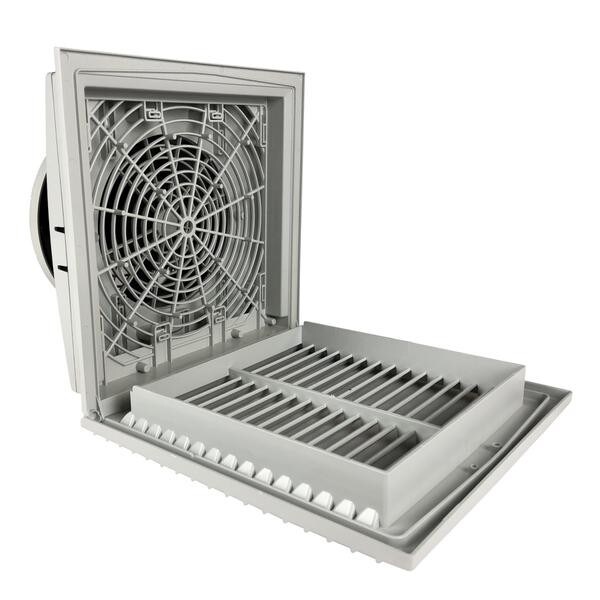

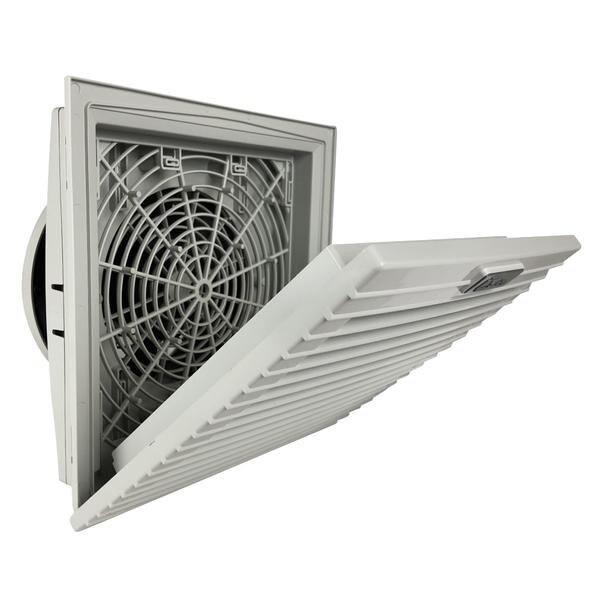

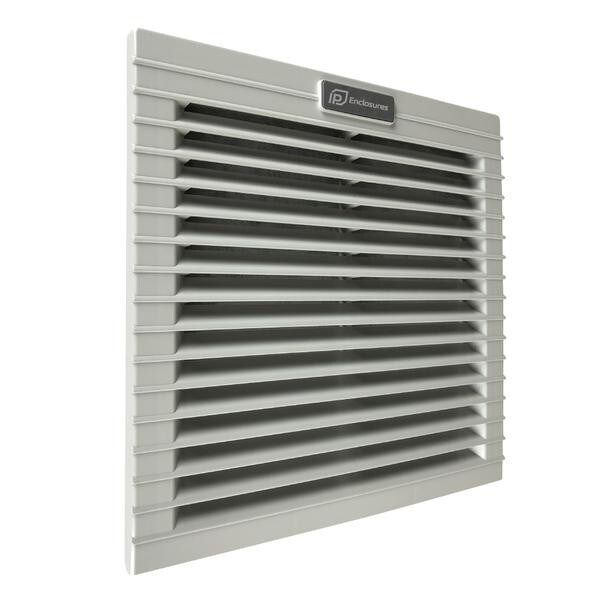

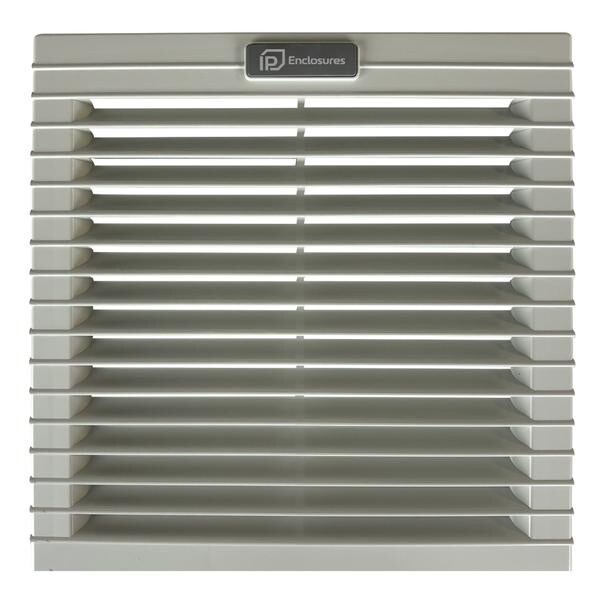

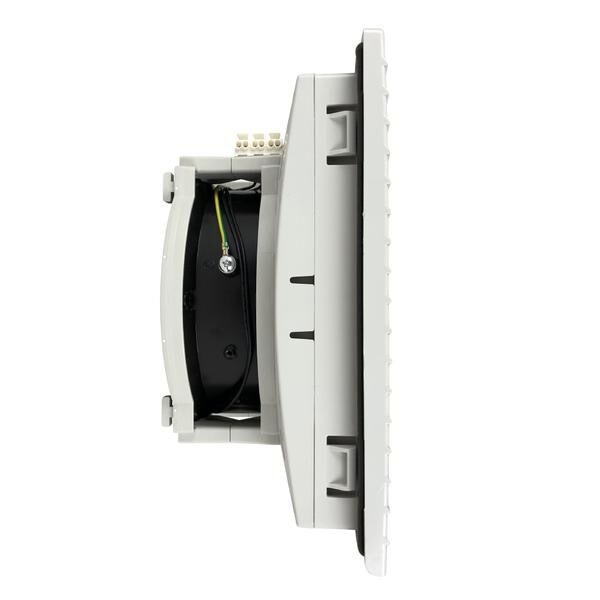

Filter Fan 250 x 250 255m3/hr 24VDC

High quality Italian filter fan unit for electrical enclosures.

G3 Filter Mat Included.

FeaturesUnitIP-V4324
Air flow rate (free blow)m³/h255
Flow rate with exit filterm³/h202
Power supplyV/HzDC24
Dimensions HxWxDmm250x250x128
Power consumptionW33
Current consumptionA0.68
Overcurrent consumption–thermal
Electric connection–2-poles spring terminals
Duty cycle–100%
Operating temperature°C(°F)– 10 / +70 (+14 / +158)
Protection degree/class–IP54/Class I
Noise leveldB(A)61
Flow direction–reversible: default factory setting outside-in
Bearing–ball
Filter mat (Eurovent)–G3
Service life (at 40°C)hr50 000
Material–ABS UL94V-0 Color RAL7035
Wall thicknessmm1.2-2.4
Gasket–foam seal gasket
Weight (with packaging)kg1.73
Package dimensionsmm270x270x165
Mounting–fast clip-on
Cut-Out dimensionsmm224×224
Conformity/Approvals–CE
