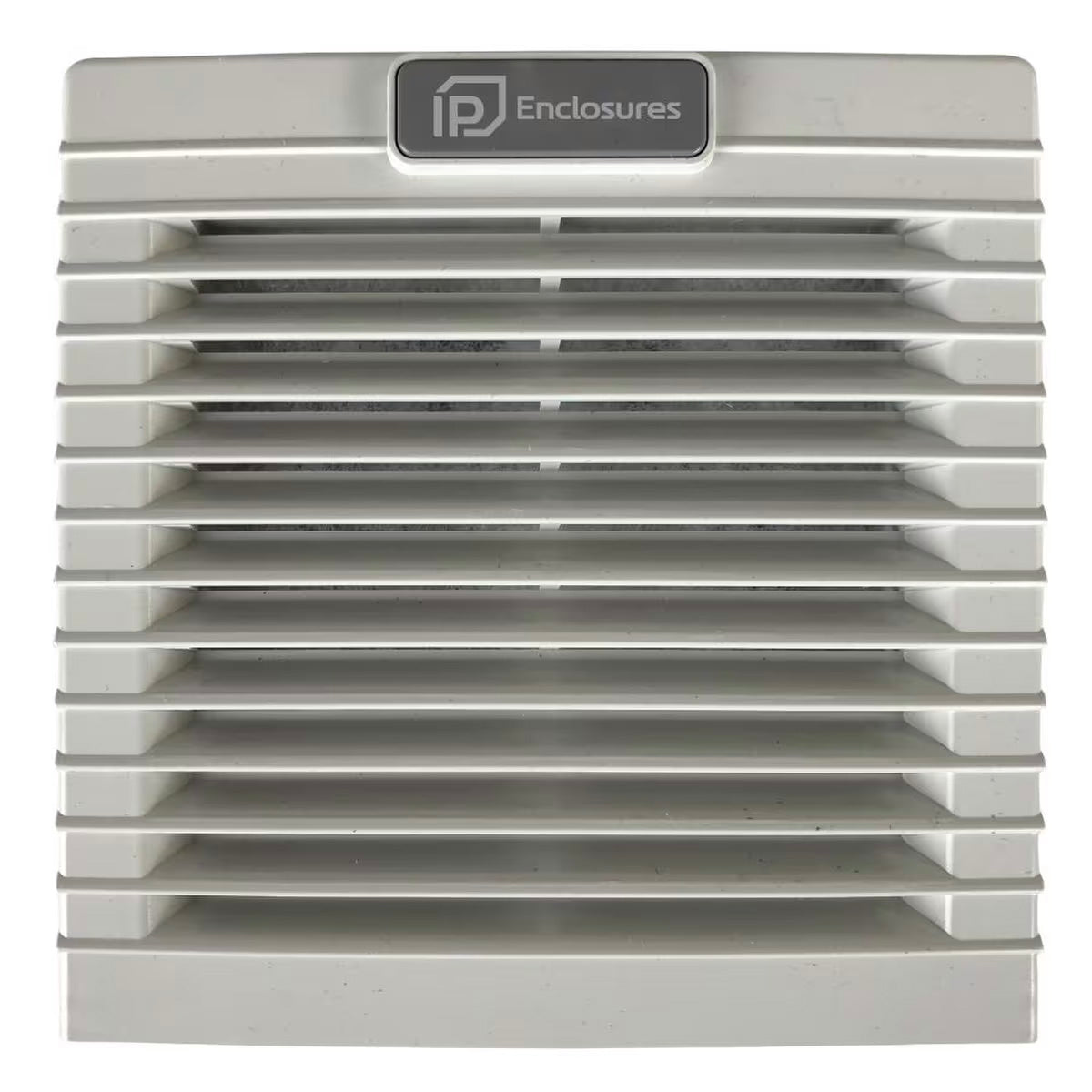

Filter Fan 150 x 150 48m3/hr 230V, UV Rated, IP55 High Efficiency (G4)
Regular price
$144.03
ex. GST
$165.63
inc. GST
In stock
- Type
- Material
- IP Rating
Filter Fan 150 x 150 48m3/hr 230V, UV Rated, IP55 High Efficiency (G4)
High quality Italian filter fan unit for electrical enclosures.
G4 Filter Mat Included.
| Features | Unit | IP-V2200-UV |
|---|---|---|
| Air flow rate (free blow) | m³/h | 58 (64) |
| Flow rate with exit filter | m³/h | 43 (48) |
| Power supply | V/Hz | 230 / 50-60 |
| Dimensions HxLxP | mm | 150x150x86 |
| Power consumption | W | 22 (21) |
| Current consumption | A | 0.14 (0.12) |
| Overcurrent consumption | – | impedance |
| Electric connection | – | 3-poles spring terminals |
| Duty cycle | – | 100% |
| Operating temperature | °C | – 10 / +70 (+14 / +158) |
| Protection degree/class | – | IP55/Class I |
| Noise level | dB(A) | 43 (49) |
| Flow direction | – | reversible: default factory setting outside-in |
| Bearing | – | ball |
| Filter mat (Eurovent) | – | G3 |
| Service life (at 40°C) | hr | 50 000 |
| Material | – | Polycarbonate Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | – | foam seal gasket |
| Weight (with packaging) | kg | 0.76 (0.83) |
| Package dimensions | mm | 165x165x90 |
| Montaggio | – | fast clip-on |
| Cut-out dimensions | mm | 125×125 |
| Conformity/Approvals | – | CE |
Standards & certifications
IP55Dust-protected · water jets
TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
