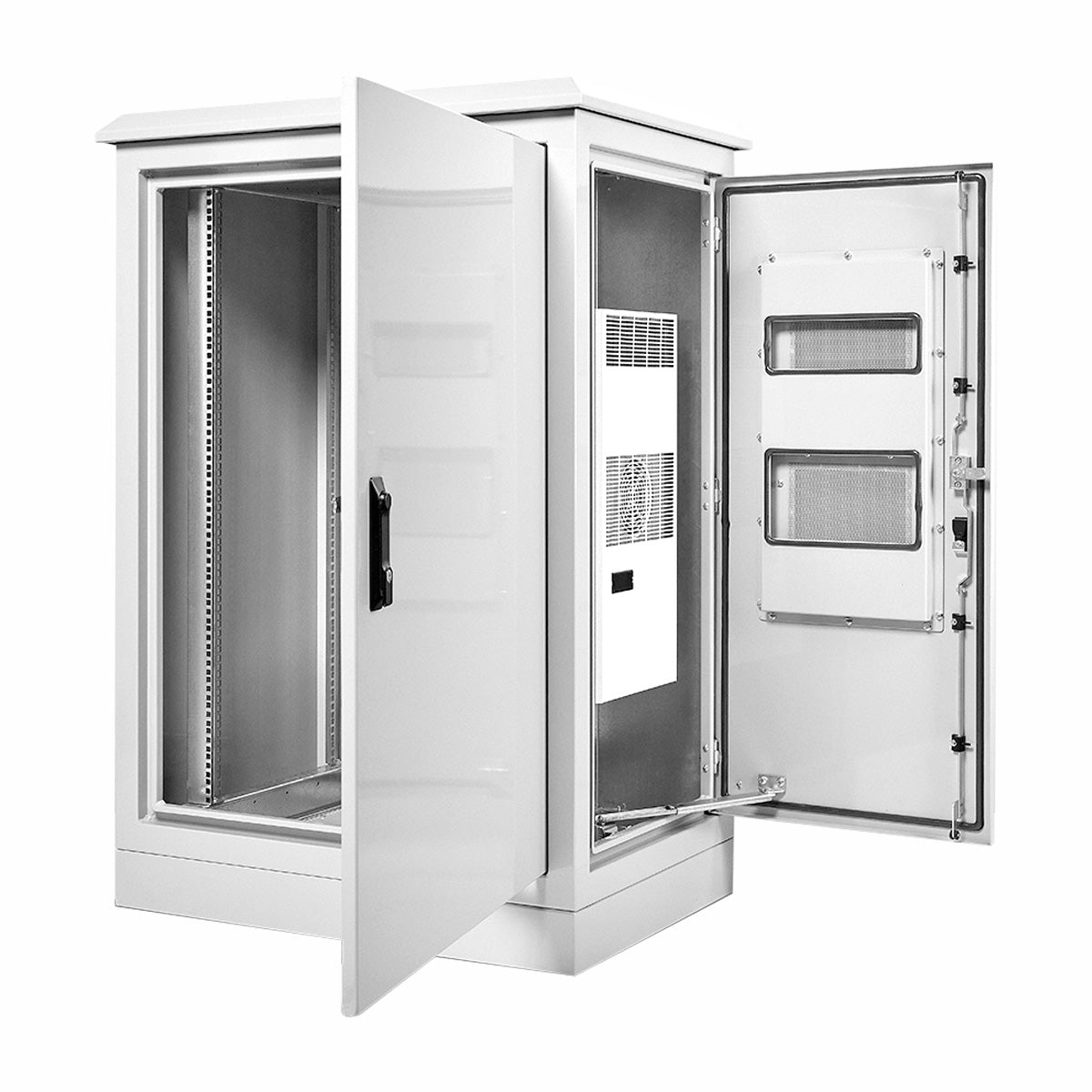

Field Cabinet 18RU 1075H x 900W x 620D IP55 Grey for 0.35kW Air Conditioner, A/C Unit Not Included

18RU Field Cabinet 1075H x 900W x 620D mm — for 0.35kW Air Conditioner (A/C Unit Not Included)

This 18RU field cabinet (1075H x 900W x 620D mm) is pre-configured to house a 0.35kW air conditioner in a dedicated, side-accessed compartment — supplied as the cabinet only, with the air-conditioner aperture ready for fitting. The air-conditioner unit is not included; order the matching IP Enclosures 0.35kW air conditioner separately, or choose the fully assembled kit if you would prefer it fitted. Suits data-network and electrical equipment in harsh outdoor environments such as road/traffic management and intelligent transport systems.

Features and Specifications

Protection: IP55 IK10 (cooled 19” rack compartment when the air conditioner is fitted).

Standards (& Conformities): IEC/EN 62208, IEC/EN 60529, EIA-310-D, RoHS, CE, UKCA.

Material:

Body & Plinth: 2.0mm galvanised steel sheet
Doors: 2.0mm galvanised steel sheet
19” Data Rack Rails: 1.5mm galvanised steel sheet
Gland Plate: 3.0mm aluminium
Seal: Polyurethane

Enclosure Body:

Robust monoblock body in 2.0mm galvanised steel sheet, fitted with rain hood/sunshield, plinth and 4 x lifting eye bolts. Flat-face sealing surfaces; 3.0mm aluminium split gland plate; segmented compartment ready to receive the air conditioner.

Enclosure Doors:

Front and rear doors, flush-recessed against vandalism, concealed removable hinges with captive pins, 110° opening, heavy-duty door stays.

Enclosure Seal:

Machine-applied full-perimeter UL-listed polyurethane seal, foamed in place (FIP). Temperature resistance −40°C to 80°C (160°C short-term).

Enclosure Lock:

3-point locking system with key-lock swing handle on each door.

Surface Treatment:

UL-approved AkzoNobel polyester powder coat, smooth gloss, 80–120 micron. Colour: Grey.

Note: Air-conditioner unit not included — supplied as cabinet only.
