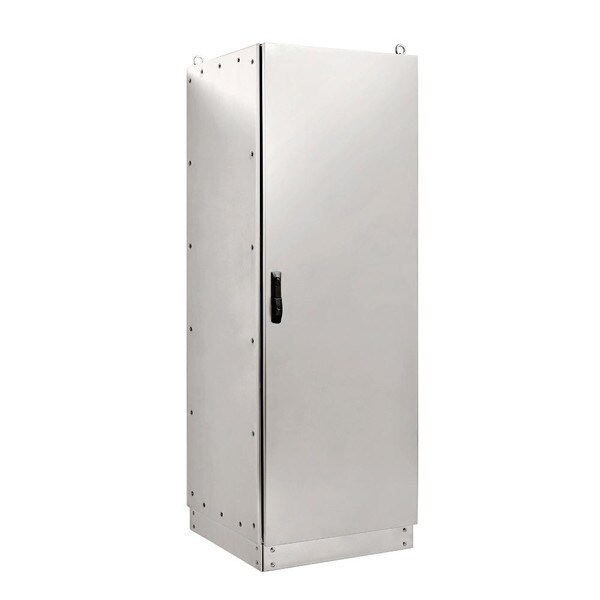

316 Stainless Steel Electrical Cabinet 1860H x 1200W x 600D IP55
Details
316 Stainless Steel Electrical Cabinet 1860H x 1200W x 600D IP55
IP Enclosures stainless steel floor standing electrical cabinets are suitable for general industrial applications.
Features and Specifications
Protection: IP55 IK10. (Independent accredited test laboratory)
Standard: IEC 62208, IEC/EN/AS60529, RoHS
Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switchgear and controlgear assemblies’.
Material:
– Main Frame: 2.0mm Grade 316 Stainless Steel W Profile System
– Side, Rear & Roof Panels: 1.2mm Grade 316 Stainless Steel
– Front Door: 2.0mm Grade 316 Stainless Steel
– Mounting Plates: 2.0mm Galvanised Steel Sheet
– Seal: EPDM

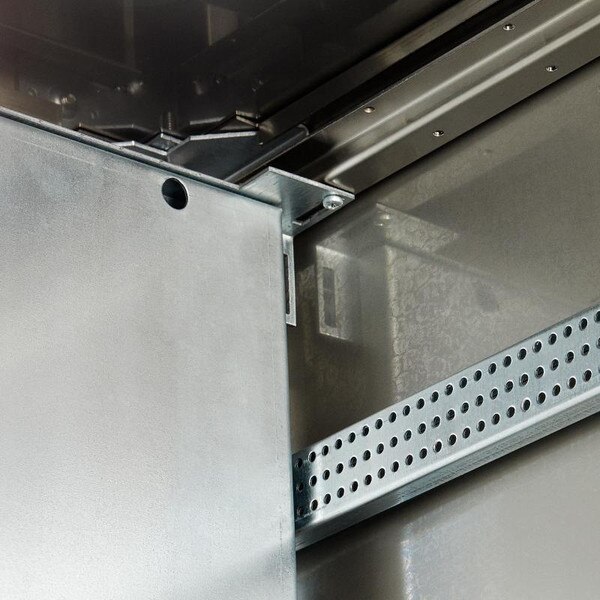

Enclosure Main Frame:
The robust modular main structure is fabricated using 2.0mm Grade 316 Stainless Steel W Profile system with 20mm hole pattern according to DIN43660.

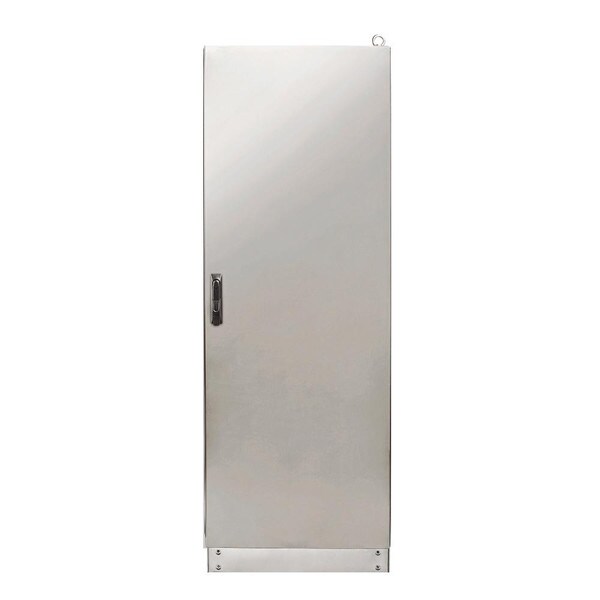

Enclosure Door:

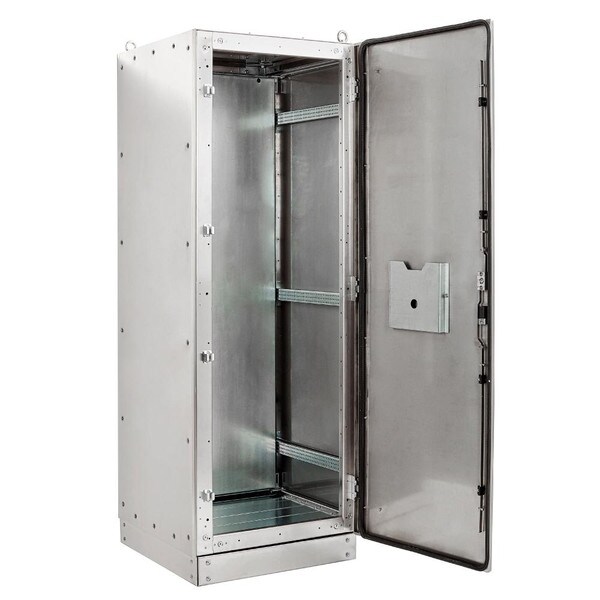

The robust door is fabricated using 2.0mm Grade 316 Stainless Steel and incorporates four concealed reversible hinges allowing left or right hand opening. The door is designed for a 135° opening. Each door contains integral cable management rails with 20mm hole pattern, M6 earth stud and provision for a document pocket.
Enclosure Side, Rear and Roof Panels:
Removable panels are fabricated using 1.2mm Grade 316 Stainless Steel.
Enclosure Base:
Base is 100mm
Enclosure Door Seal:
High quality EPDM replaceable door seal.
Enclosure Lock:
4 point locking system with key-lock swing handle.

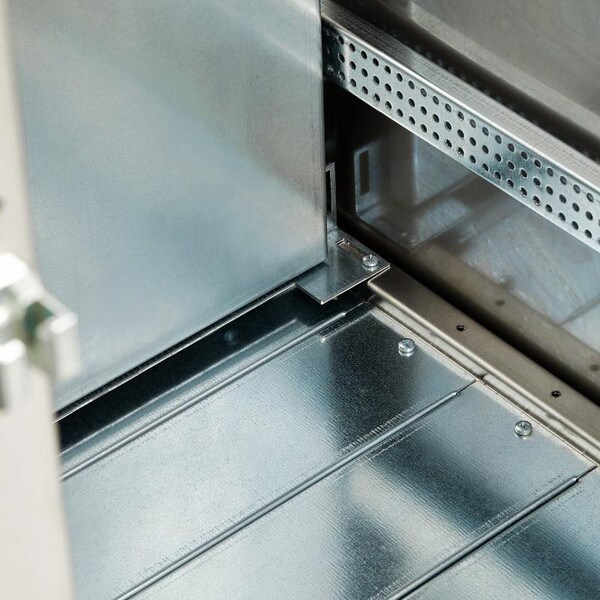

Enclosure Device Mounting Plate:
The device mounting plate is fabricated using 2.0mm mm galvanised steel sheet, pressed to provide additional strength.
Earthing:
All panels are earthed to provide earthing continuity.
Surface Finish:
0.4 micron Ra surface brushed finish
