LED Light 24VDC with On/Off Switch, Magnet Mount
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details

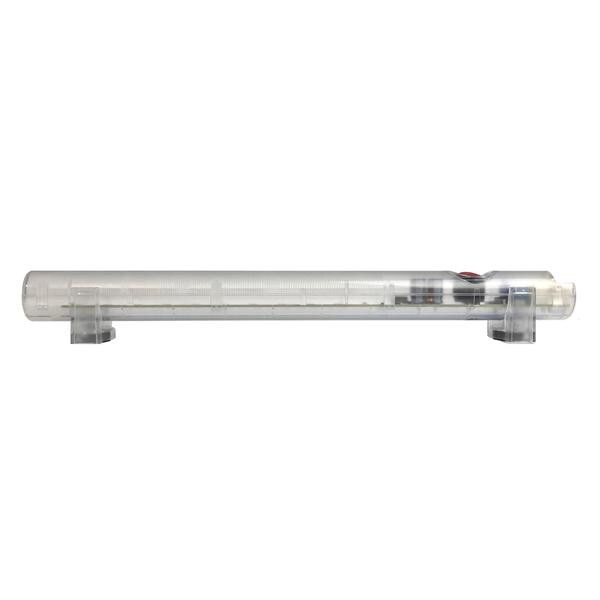

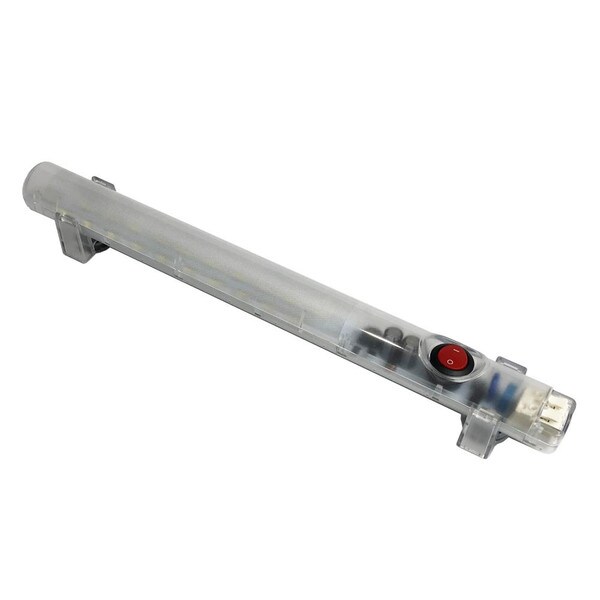

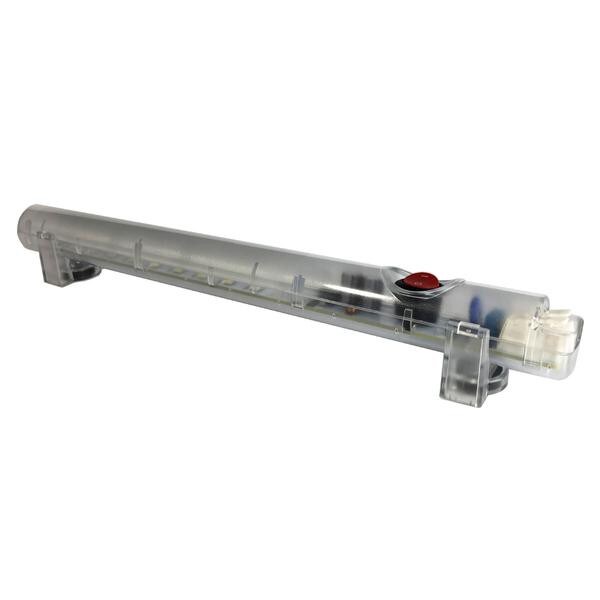

LED Light 24VDC with On/Off Switch, Magnet Mount
IP Enclosures slimline, high efficiency LED light for electrical enclosure. Spring terminal connection. Fixing clips allow lamp to be rotated to suit lighting needs. Provided with integral on-off switch and magnet-mounting for ease of installation. Made in Italy.
| Features | Unit | IP-LEDLAMP3201 |
|---|---|---|
| Power supply | V/Hz | 24VDC |
| Luminosity | Lm | 400 |
| Lamp type | - | LED |
| Power consumption | W | 2.5 |
| Service life (@ 20°C) | hr | 60.000 |

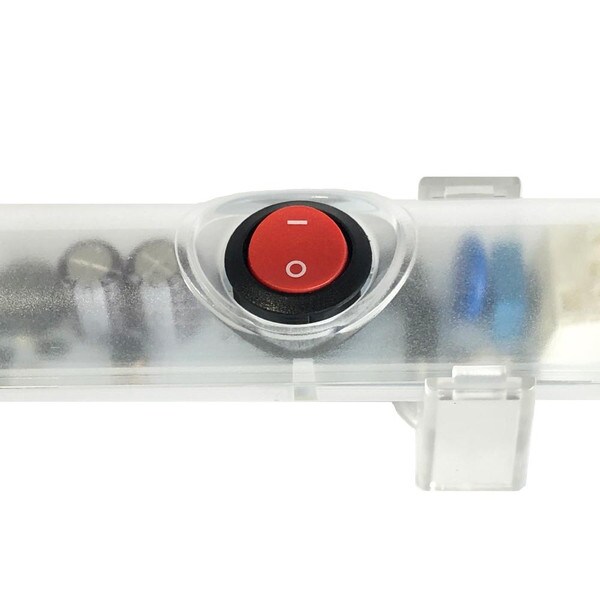

| Switch | - | On/off switch |
| Electrical connection | - | 2-poles spring terminals ** |
| Casing | - | Plastic |
| Protection degree / Class | - | IP20 / Classe II |
| Operating temperature | °C (°F) | -30 / +60 (-22 / +140) |
| Storage temperature | °C (°F) | -40 / +85 (-40 / +185) |

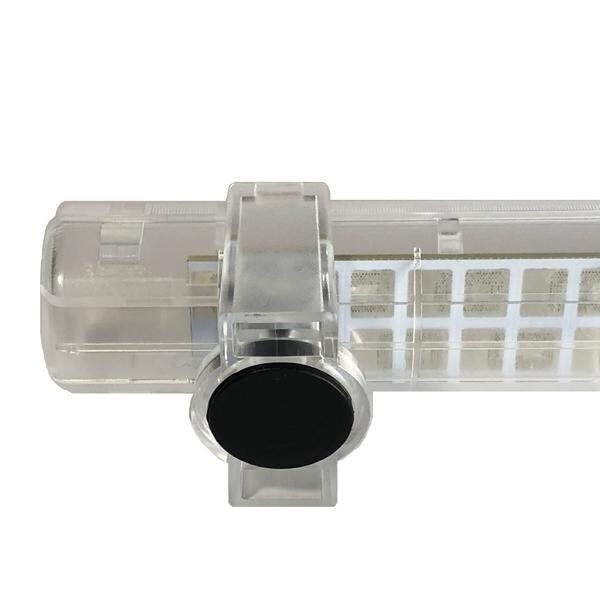

| Mounting | - | magnet fixing |
| Installation position | - | Variable |
| Dimensions | mm | |
| Weight (with packaging) | kg | 0.175 (0.225) |
| Package dimensions | mm | 415x50x44 |
| Conformity/Certifications | - | CE  File n° E301229 |
