Filter Fan 150 x 150 58m3/hr 24VDC

$137.89
 inc. GST
SKU: IP-V2224

This item is IN STOCK

Current Stock: 37

NZ: 37 in stock

Details

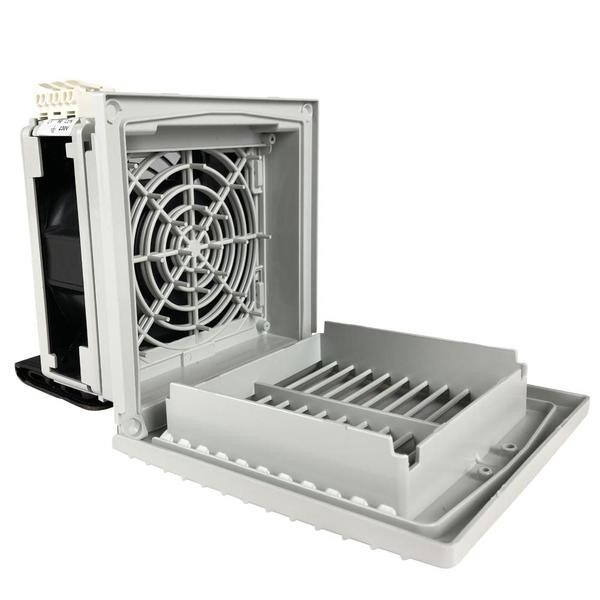

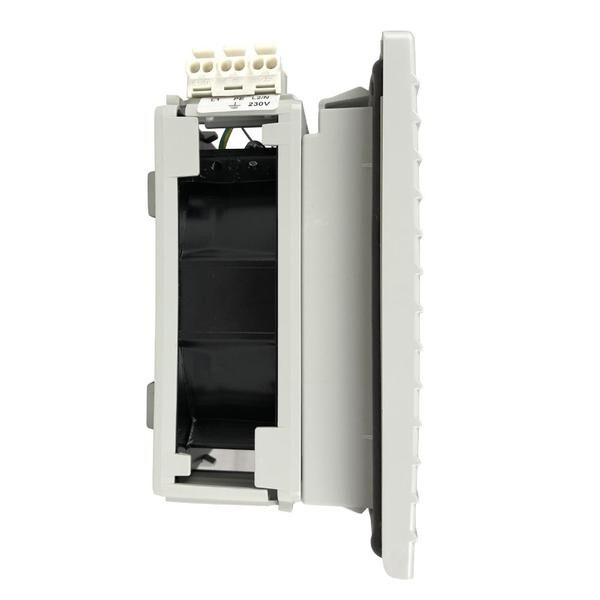

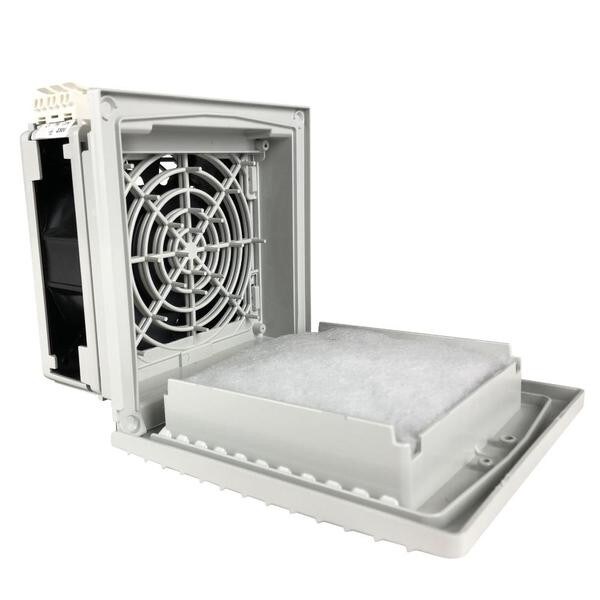

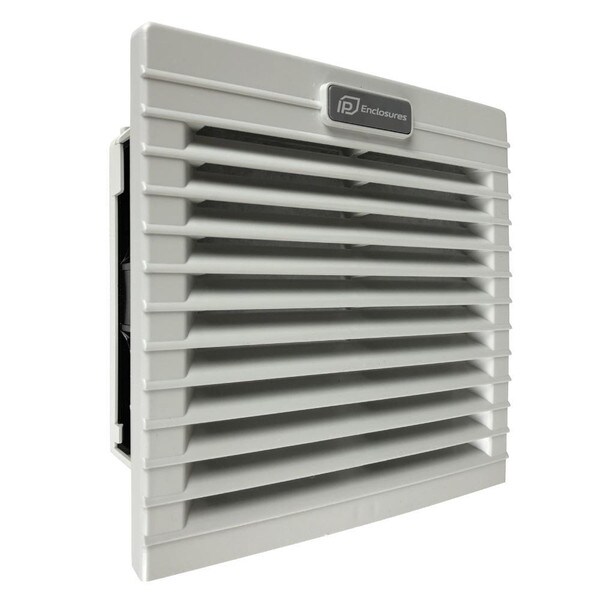

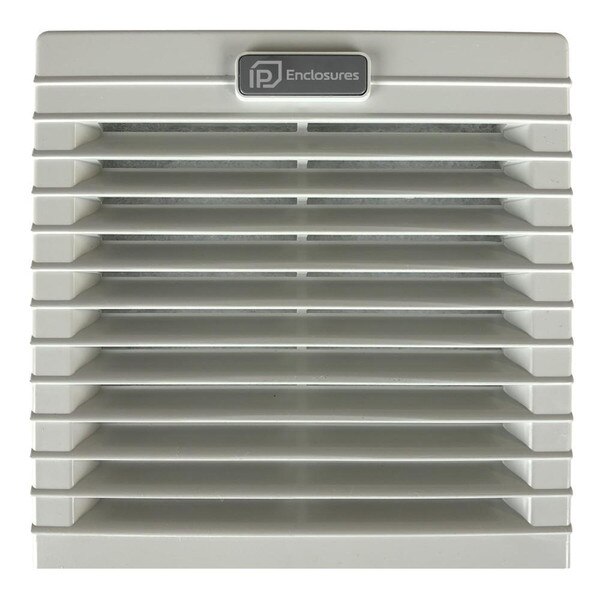

Filter Fan 150 x 150 58m3/hr 24VDC

High quality Italian filter fan unit for electrical enclosures.

G3 Filter Mat Included.

FeaturesUnitIP-V2224
Air flow rate (free blow)m³/h58
Flow rate with exit filterm³/h43
Power supplyV/HzDC24
Dimensions HxWxDmm150x150x86
Power consumptionW9
Current consumptionA0.37
Overcurrent consumption-impedance
Electric connection-2-poles spring terminals
Duty cycle-100%
Operating temperature°C (°F)- 10 / +70 (+14 / +158)
Protection degree/class-IP54/Class I
Noise leveldB(A)45
Flow direction-reversible: default factory setting outside-in
Bearing-ball
Filter mat (Eurovent)-G3
Service life (at 40°C)hr50 000
Material-ABS UL94V-0 Color RAL7035
Wall thicknessmm1.2-2.4
Gasket-foam seal gasket
Weight (with packaging)kg0.48 (0.55)
Package dimensionsmm165x165x90
Mounting-fast clip-on
Conformity/Approvals-CE
