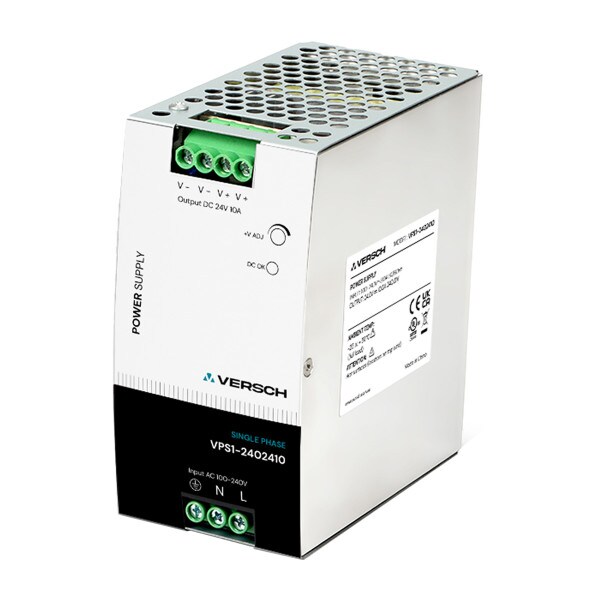

Din Rail Power Supply 240W 24V 10A

Images are for reference only. Refer to datasheets and drawings for accurate specifications.

$125.77 (ex. GST)
 (inc. GST)
SKU: VPS1-2402410

This item is IN STOCK

Current Stock: 20

NZ: 20 in stock
Back

Details

Din Rail Power Supply 240W 24V 10A

VERSCH metal case power family designed with slim housing and for full range AC input from 90V AC to 264V AC.
The series are single phase PSU, providing adjustable DC output voltage. They have high efficiency and operate in wide temperature
range. The series can widely used for industrial automation & control systems, varied equipments etc.

Electrical Characteristics

Model No.VPS1-2402410
DC Voltage24V
Rated Current10A
Rated Power(Max)120W
Ripple & Noise(Max)150mVp-p
Input Voltage90 - 264VAC 127-370VDC
Inrush Current20A/115VAC 35A/230VAC
Efficiency85.50%
Working Temperature-20~+70 C(Refer to “Derating Curve“)
Withstand VoltageI/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ProtectionShort Circuit/Over Load/Over Voltage/Over Temperature
ConnectionI/P:3 poles terminal Block, O/P: 4 poles terminal Block
