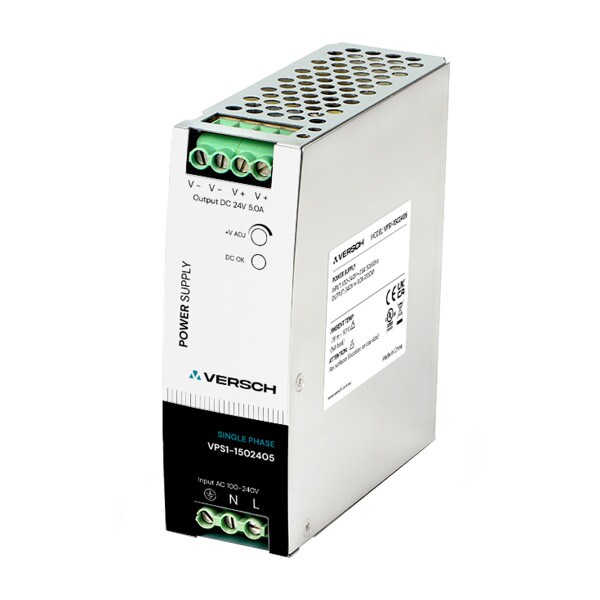

Din Rail Power Supply 120W 24V 5A
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details
Din Rail Power Supply 120W 24V 5A
VERSCH metal case power family designed with slim housing and for full range AC input from 90V AC to 264V AC.
The series are single phase PSU, providing adjustable DC output voltage. They have high efficiency and operate in wide temperature
range. The series can widely used for industrial automation & control systems, varied equipments etc.
Electrical Characteristics
| Model No. | VPS1-1502405 |
| DC Voltage | 24V |
| Rated Current | 5A |
| Rated Power(Max) | 120W |
| Ripple & Noise(Max) | 120mVp-p |
| Input Voltage | 90 - 264VAC 127-370VDC |
| Inrush Current | 20A/115VAC 35A/230VAC |
| Efficiency | 88.0% |
| Working Temperature | -20~+70 C(Refer to “Derating Curve“) |
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Protection | Short Circuit/Over Load/Over Voltage/Over Temperature |
| Connection | I/P:3 poles terminal Block, O/P: 4 poles terminal Block |
