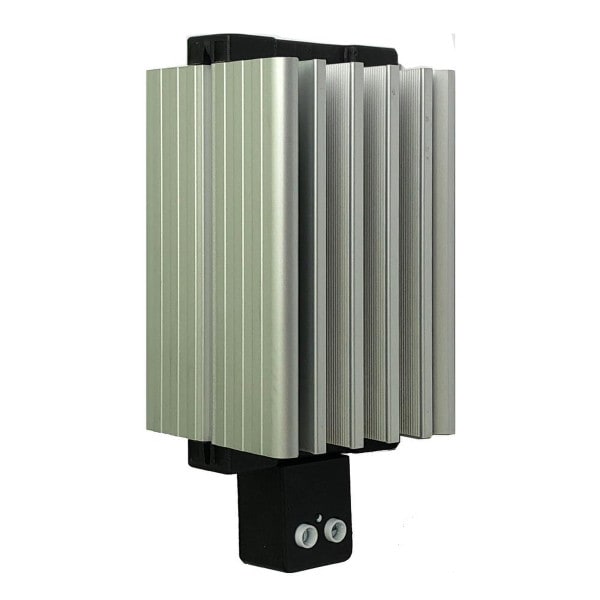

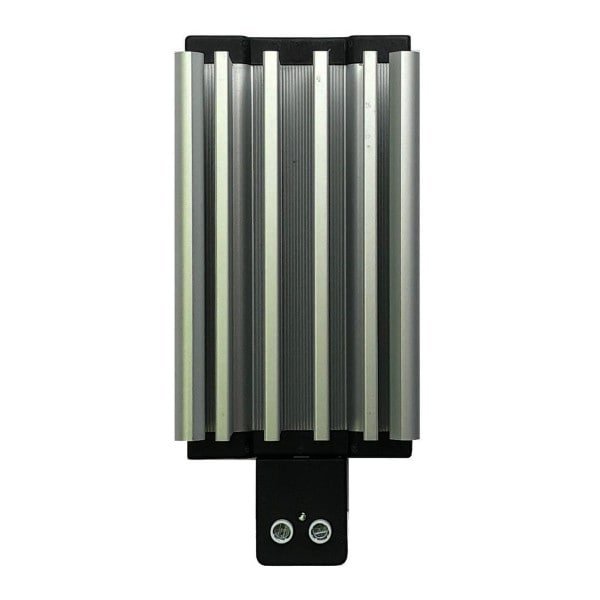

Anti-Condensation Heater 50 Watt with Thermostat
Details
Anti-Condensation Heater 50 Watt
Compact Heater – H Range
IP Enclosures Compact Heaters with minimum DIN rail foot-print. Made in Italy.
| Features | Unit | IP-H50 |
|---|---|---|
| Heating Capacity* | W | 50 |
| Power supply | V | 110-250V AC or DC |
| Inrush current | A | 3.5 |
| Delayed fuse (advised) | A | 4 |
| Heating element type | - | PTC resistor self regulating |
| Electrical connections | - | Silicon cable 2×0.5 mm² I. 400 mm |
| Protection class IEC | - | Class II |
| Protection degree EN60529 | - | IP20 |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) |
| Radiator | - | Extruded aluminium profile |
| Mounting | - | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | - | Best efficiency in vertical position |
| Dimensions HxWxD | mm | 100x40x40 |
| Weight | kg | 0.19 |
| Conformity | - | CE – UL  |
| *at 20°C (68°F) ambient temperature |
