Anti-Condensation Heater 150 Watt with Thermostat
Details

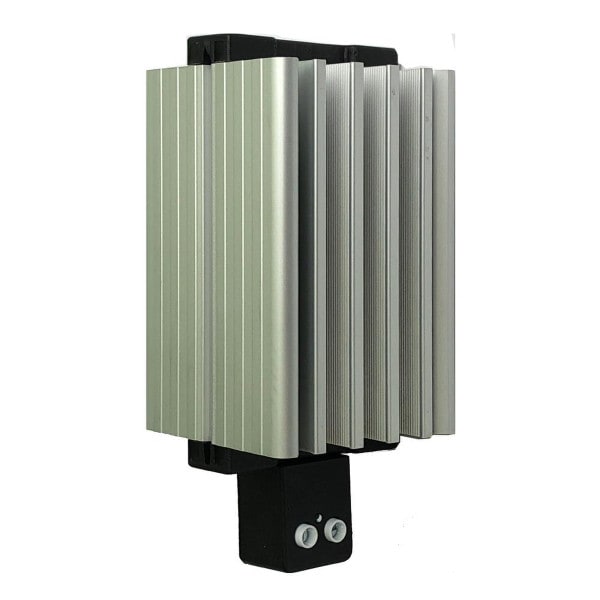

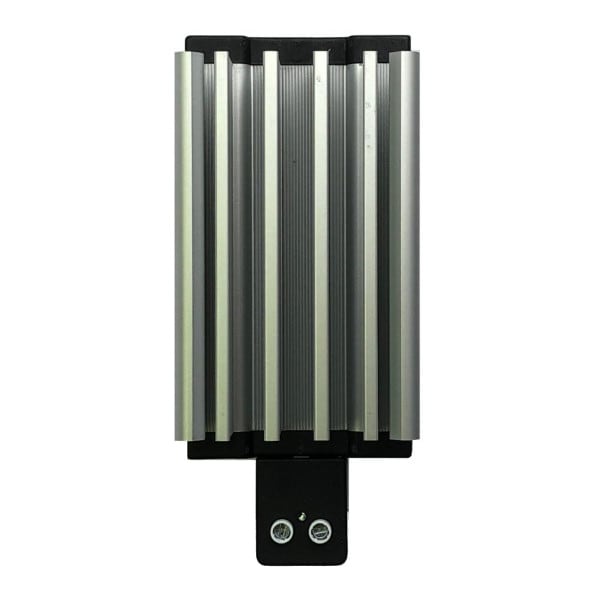

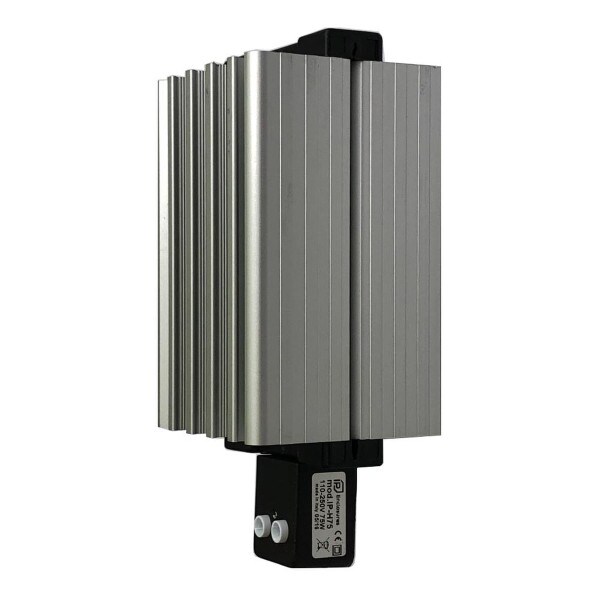

Anti-Condensation Heater 150 Watt
Compact Heater – H Range
IP Enclosures Compact Heaters with minimum DIN rail foot-print. Made in Italy.
| Features | Unit | IP-H150 |
|---|---|---|
| Heating Capacity* | W | 150 |
| Power supply | V | 110-250V AC or DC |
| Inrush current | A | 9.5 |
| Delayed fuse (advised) | A | 10 |
| Heating element type | – | PTC resistor self regulating |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² |
| Protection class IEC | – | Class II |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) |
| Radiator | – | Extruded aluminium profile |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best efficiency in vertical position |
| Dimensions HxWxD | mm | 220x59x61 |
| Weight | kg | 0.57 |
| Conformity | – | CE – UL  |
| *at 20°C (68°F) ambient temperature |
