316 Stainless Steel Transparent Door 600H x 600W IP66
Details

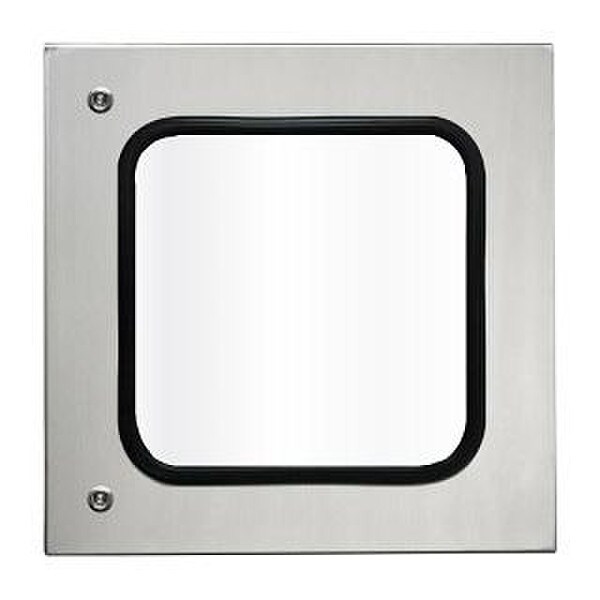

316 Stainless Steel Transparent Door 600H x 600W IP66
IP Enclosures range of stainless steel transparent doors are rated for protection up to IP66 and can be easily fitted to the IP Enclosures range of electrical enclosures. Transparent Doors are provided as a standard accessory. Simply remove the existing door and replace with a transparent door.
Features and Specifications
Protection: IP66
Standard: IEC/EN/AS60529, RoHS
Material:
Enclosure Door: 1.5mm Grade 316/316L Stainless Steel
Enclosure Seal: Polyurethane
Windows: 4mm Transparent tempered glass
Door:
The surface mounted door is 1.5mm Grade 316/316L Stainless Steel. It incorporates concealed removable hinges with captive pins. Doors are also designed for a 110° opening. The is provided with recessed windows manufactured using 4mm transparent tempered glass with seal.
Seal:
A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).
Lock:
Grade 316 Stainless Steel 8mm Square Drive Quarter Turn Lock.
Window Dimensions:
390mmH x 390mmW
