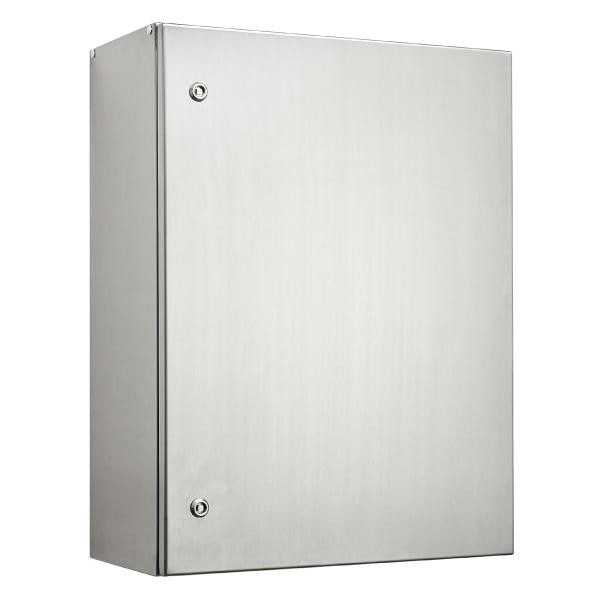

316 Stainless Steel Electrical Enclosure 700H x 500W x 200D IP66
Details
316 Stainless Steel Electrical Enclosure 700H x 500W x 200D IP66
IP Enclosures SS1 range of stainless steel electrical enclosures are rated for protection up to IP66. This range is wall-mounted, grade 316 stainless steel, single door construction suitable for extreme duty applications.
Features and Specifications
Protection: IP66 IK10, NEMA 4x (Independent accredited test laboratory).
Standard: IEC 62208, IEC/EN/AS60529, (UL 508A Optional), RoHS
Material:
Body: 1.5mm Grade 316/316L Stainless Steel (Optional 304)
Door: 1.5mm Grade 316/316L Stainless Steel (Optional 304)
Device Mounting Plate: 1.5mm Galvanised Steel Sheet
Seal: Polyurethane
Surface Finish:
0.4 micron Ra surface brushed finish
Enclosure Body:
The monoblock body is fabricated using 1.5mm Grade 316/316L Stainless Steel. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling and retain IP rating. Integral device plate mounts and M6 earth studs are provided. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.
Enclosure Door:

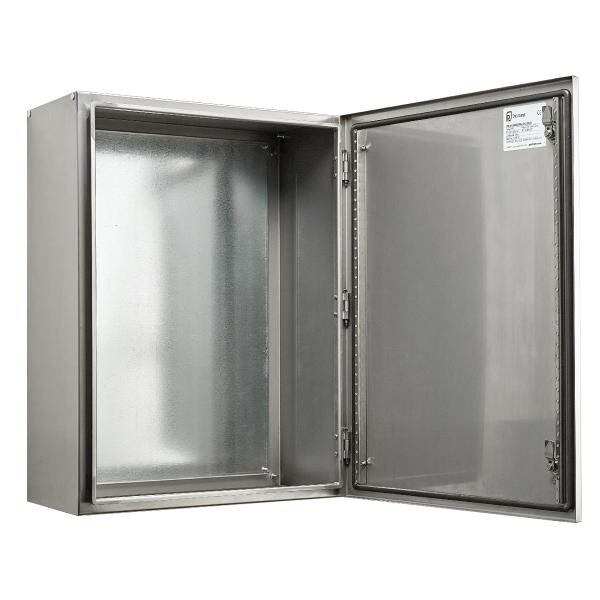

The robust surface mounted door is fabricated using 1.5mm Grade 316/316L Stainless Steel and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal. Two internal cable management rails can be removed to provide additional space for equipment, duct and door mounted control components.
Enclosure Seal:
A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).
Enclosure Lock:
Grade 316 Stainless Steel 8mm square drive quarter turn lock with key.
Device Mounting Plate:
The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.
Note: Please choose product carefully. Product selection is the responsibility of the “Purchaser”. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to https://www.ipenclosures.com.au/electrical-enclosure-selection/
