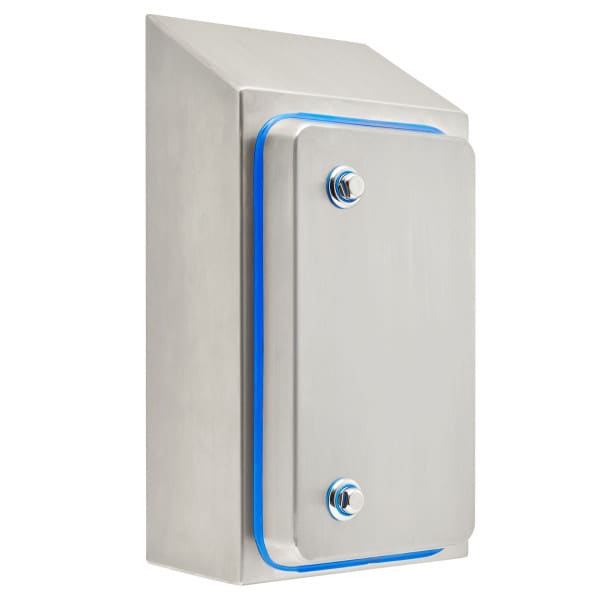

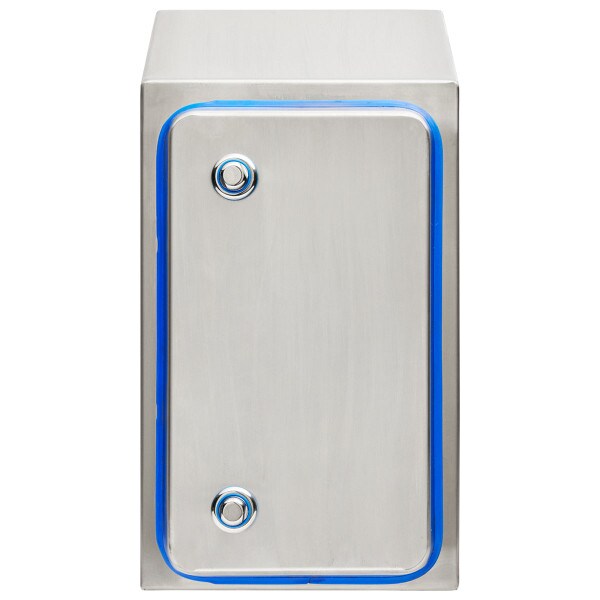

Hygienic Electrical Enclosure 300H x 200W x 150D IP69K
Details
Hygienic Electrical Enclosure 300H x 200W x 150D IP69K
IP69K hygienic electrical enclosures are designed to prevent contamination and are suitable for the food & beverage, pharmaceutical and other industries that require high hygienic standards.
_x000D_Features & Specifications
_x000D_Protection: Complies with IP66 IK07, IP69K.
_x000D_Standard: DGUV EN1672-2, EN62208, EN/AS60529, ISO20653, UL508A, EHEDG, RoHS
_x000D_Material:
_x000D_– Enclosure Body: 1.5mm Grade 304 Stainless Steel
– Enclosure Door: 1.5mm Grade 304 Stainless Steel
– Enclosure Seal: Silicon FD Compliant
Enclosure Body:
_x000D_The robust monoblock body with 30° sloping roof is fabricated using 1.5mm Grade 304 Stainless Steel. It is designed to be completely smooth and without crevices and without concave angles to facilitate cleaning and avoid deposits. The body is designed to promote self draining for ease of hygienic cleaning.
_x000D_Enclosure Door:
_x000D_The door is fabricated using 1.5mm Grade 304 Stainless Steel and includes specially cast internal hinges. The door is designed for a 115° opening with hinges on the right hand side.
_x000D_Enclosure Seal:
_x000D_Blue silicone seal, FDA compliant for food production areas.
_x000D_Enclosure Lock:
_x000D_IP69K Stainless Steel Hygiene lock with seal. Dirt resistant and easy to clean.
_x000D_Device Mounting Plate:
_x000D_Fabricated using galvanised steel sheet. Supplied fitted.
Note: Please choose product carefully. Product selection is the responsibility of the “Purchaser”. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to https://www.ipenclosures.com.au/electrical-enclosure-selection/
