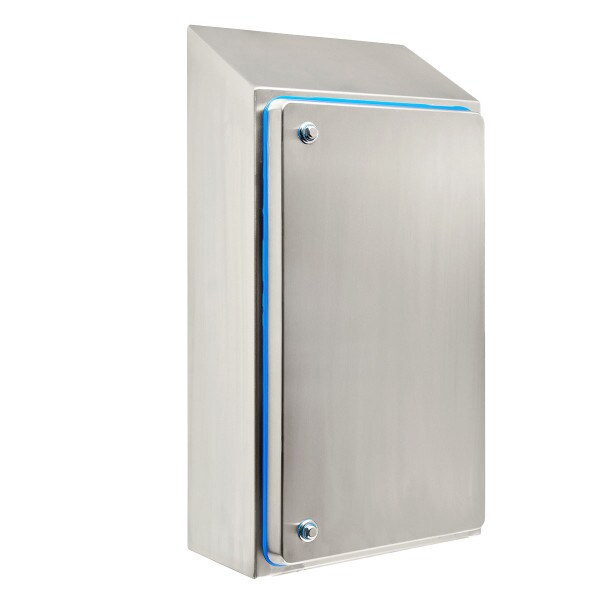

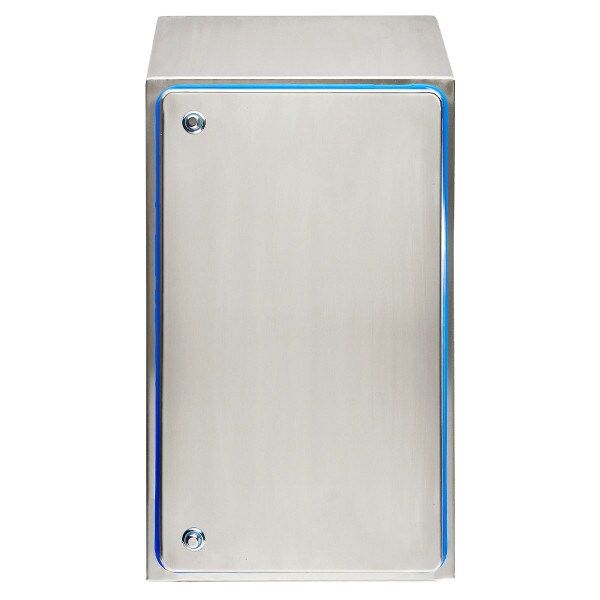

Hygienic Electrical Enclosure 1200H x 800W x 300D IP69K

$2,960.44
 inc. GST
SKU: IP-H1208030

This item is IN STOCK

Current Stock: 4

NZ: 4 in stock

Details

Hygienic Electrical Enclosure 1200H x 800W x 300D IP69K

IP69K hygienic electrical enclosures are designed to prevent contamination and are suitable for the food & beverage, pharmaceutical and other industries that require high hygienic standards.

_x000D_

Features & Specifications

_x000D_

Protection: Complies with IP66 IK07, IP69K.

_x000D_

Standard: DGUV EN1672-2, EN62208, EN/AS60529, ISO20653, UL508A, EHEDG, RoHS

_x000D_

Material:

_x000D_

– Enclosure Body: 1.5mm Grade 304 Stainless Steel
– Enclosure Door: 1.5mm Grade 304 Stainless Steel
– Enclosure Seal: Silicon FD Compliant

_x000D_

Enclosure Body:

_x000D_

The robust monoblock body with 30° sloping roof is fabricated using 1.5mm Grade 304 Stainless Steel. It is designed to be completely smooth and without crevices and without concave angles to facilitate cleaning and avoid deposits. The body is designed to promote self draining for ease of hygienic cleaning.

_x000D_

Enclosure Door:

_x000D_

The door is fabricated using 1.5mm Grade 304 Stainless Steel and includes specially cast internal hinges. The door is designed for a 115° opening with hinges on the right hand side.

_x000D_

Enclosure Seal:

_x000D_

Blue silicone seal, FDA compliant for food production areas.

_x000D_

Enclosure Lock:

_x000D_

IP69K Stainless Steel Hygiene lock with seal. Dirt resistant and easy to clean.

_x000D_

Device Mounting Plate:

_x000D_

Fabricated using galvanised steel sheet. Supplied fitted.


Note: Please choose product carefully. Product selection is the responsibility of the “Purchaser”. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to https://www.ipenclosures.com.au/electrical-enclosure-selection/
