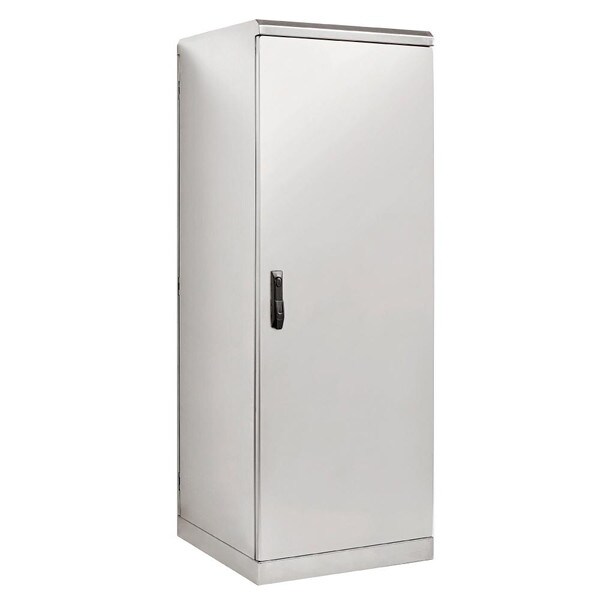

316 Stainless Steel 19" Data Rack 24U/RU 1200H x 600W x 600D IP66
Details
316 Stainless Steel 19" Data Rack 24U/RU 1200H x 600W x 600D IP66
IP Enclosures IP66 stainless steel data racks are designed for extreme duty to house sensitive data network equipment in harsh environments. They are suitable for internal and external installations.
Features & Specifications:
Protection: IP66 IK10, NEMA 4x
Standard: AS60529, EIA-310-D, RoHS
Material:
Enclosure Body: 1.5mm Grade 316/316L Stainless Steel
Enclosure Door: 1.5mm Grade 316/316L Stainless Steel
19” Data Rack Rails: 1.5mm galvanised steel sheet
Enclosure Seal: Polyurethane
Surface Finish:
0.4 micron Ra surface brushed finish
Body:

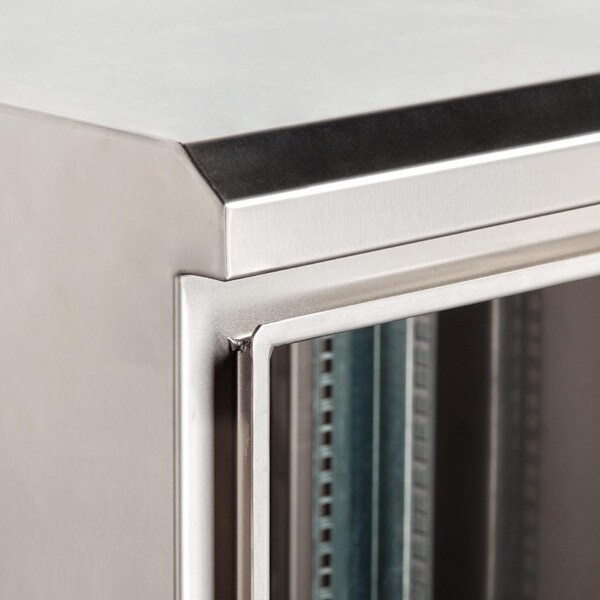

The monoblock body is fabricated using 1.5mm Grade 316/316L Stainless Steel. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment to ensure accuracy and consistent high quality. Flat face sealing surfaces are provided to increase seal life. A stainless steel gland plate is also incorporated into the bottom face.

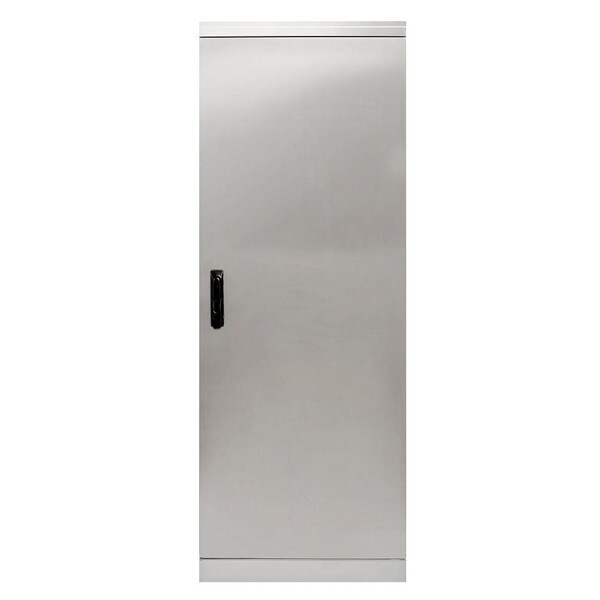

Door:
The surface mounted door is fabricated using 1.5mm Grade 316/316L Stainless Steel and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains integral cable management rail studs, M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal. Two internal cable management rails can be removed to provide additional space for equipment, duct and door mounted control components.

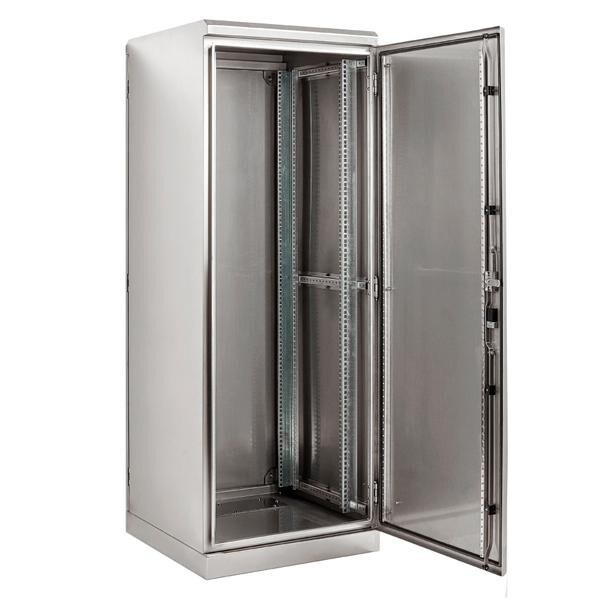

19″ Data Rack Rails:

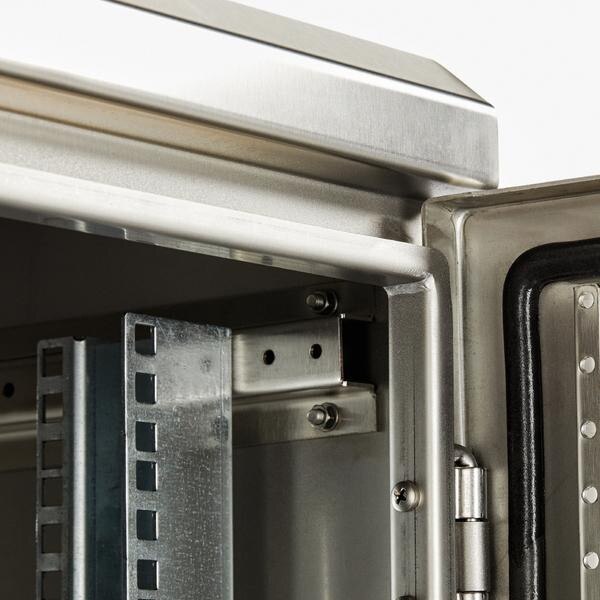

Front and rear 19″ data rack rails are fabricated from 1.5mm galvanised steel sheet.
Seal:
A high quality machine-applied continuous foamed in place (FIP) Polyurethane seal provides excellent sealing over a long life.
Lock:
3 point locking system with key-lock swing handle.
Gland Plate:
Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners. The size and quantity vary according to enclosure size.
