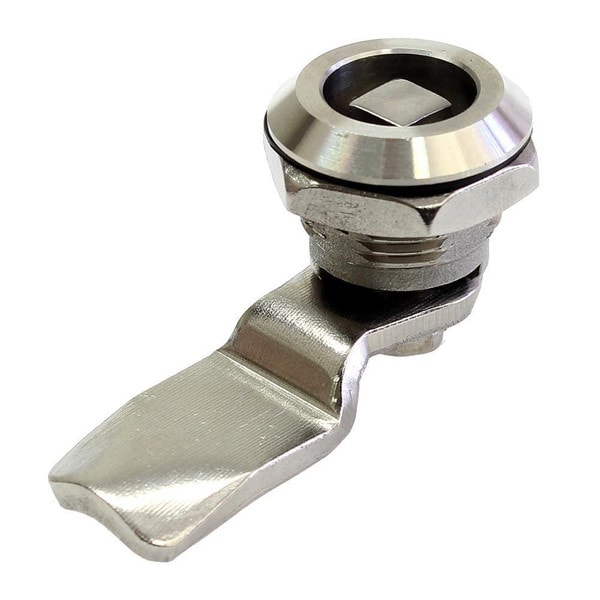

Chrome Quarter Turn 8mm Square Lock for Electrical Enclosures
Details
Chrome Quarter Turn 8mm Square Lock for Electrical Enclosures
FEATURES
– Specially designed internal spring provides 1.5 mm of compression.
– Cam does not rotate beyond quarter turn due to stop lip.
MATERIAL
HOUSING: Zamak DIN-EN 1774-ZnAl4Cu1 (Optional Polyamide PA6 GFR 30)
DRIVER: Zamak DIN-EN
CAM: Steel
GASKET: Rubber
FINISH: Chrome (Optional Black)
IP RATING: IP65
DRIVERS
IP-L002: 8mm Square

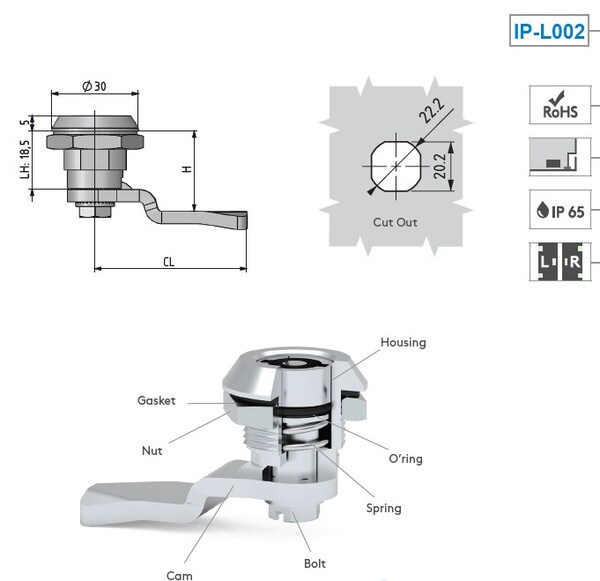

DIMENSIONS
H=25.5mm
CL=49mm
