316 Stainless Steel Pushbutton Enclosure 2 Hole IP66
Ask an expert!
- Material

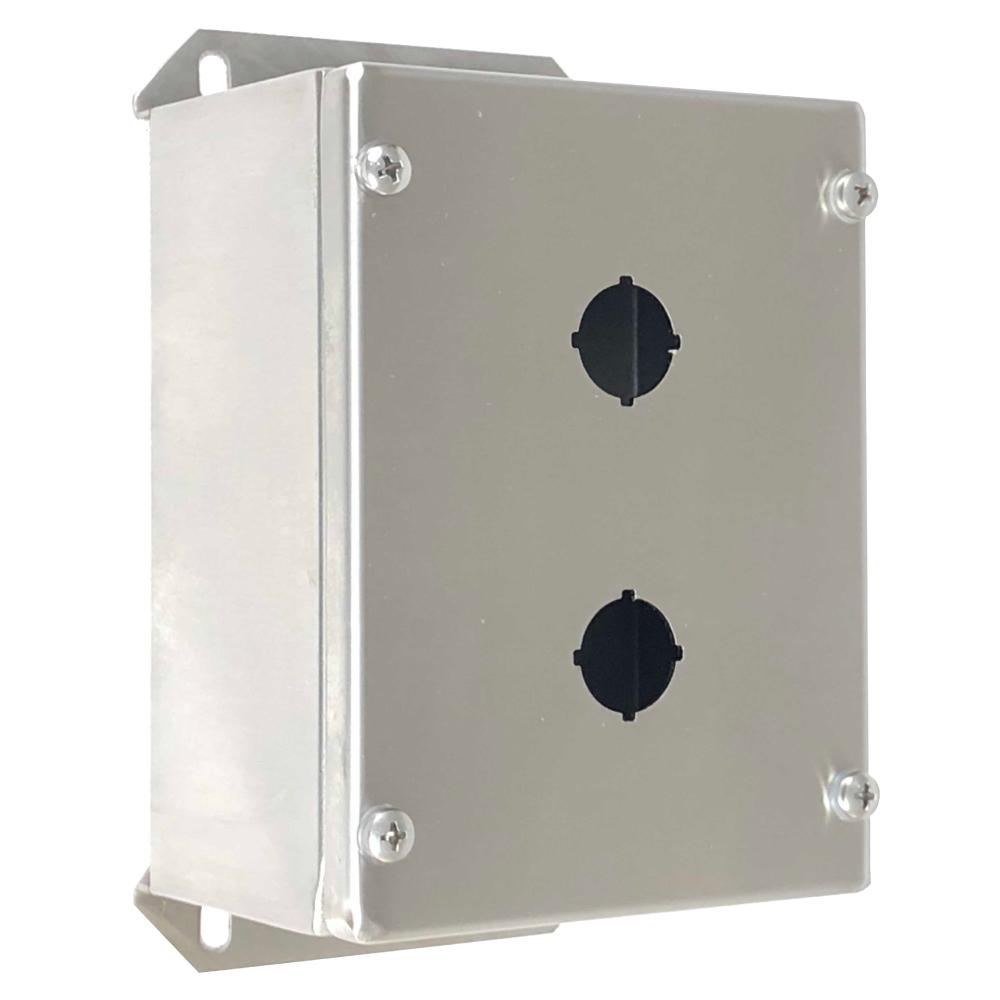

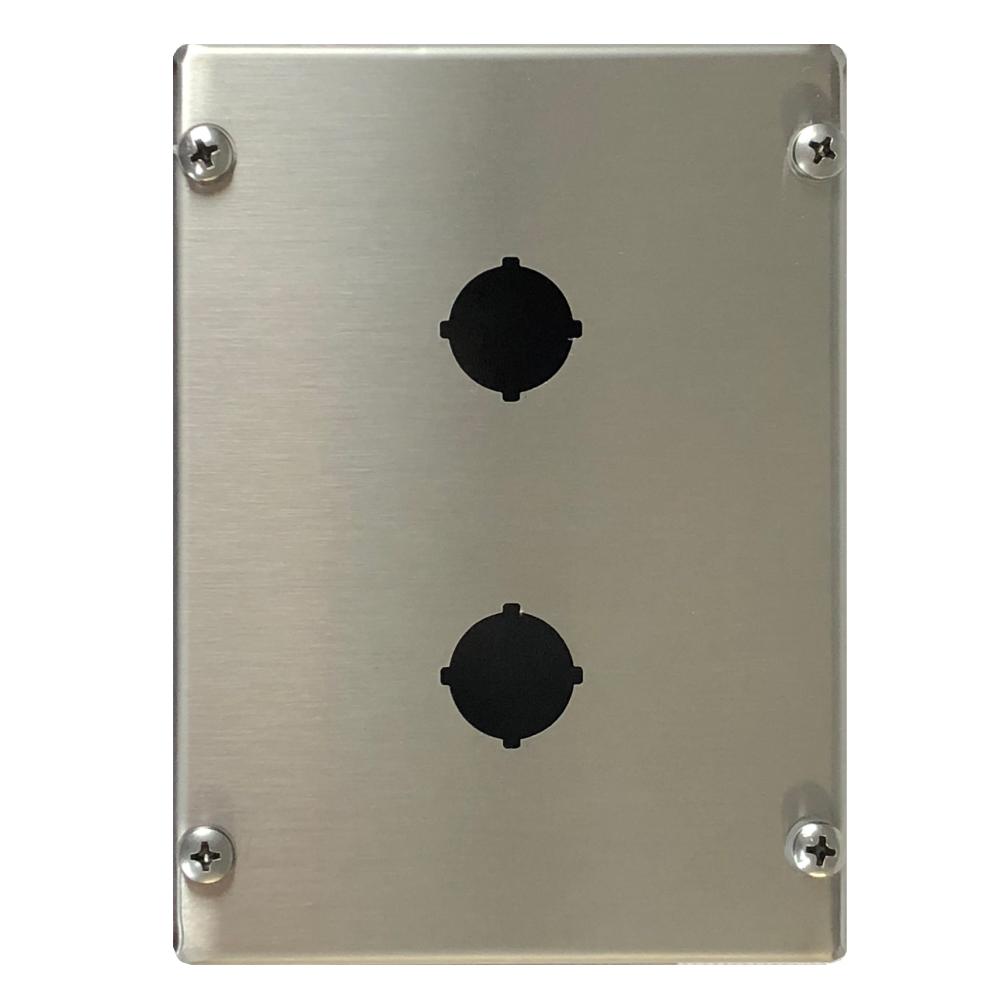

316 Stainless Steel Pushbutton Enclosure 2 Hole IP66
IP Enclosures stainless steel pushbutton enclosures are suitable for extreme duty heavy industrial applications. They incorporate 22mm diameter holes and are available in 1 hole, 2 hole, 3 hole, 4 hole and 6 hole configurations with a flat roof or a sloping roof. We can also provide them with no hole for custom applications if required.
Features & Specifications
Protection: Complies with IP66
Standard: IEC/EN/AS60529, RoHS
Material:
– Body: 1.5mm Grade 316/316L Stainless Steel
– Lid/Door: 1.5mm Grade 316/316L Stainless Steel
– Seal: Polyurethane
Surface Finish:
0.4 micron Ra surface brushed finish
Body:
The robust monoblock body is fabricated using 1.5mm grade 316/316L stainless steel. Flat face sealing surfaces are provided to increase seal life. Integral mounting feet to suit M6 fasteners are provided.
Lid/Door:
The robust door is fabricated using 1.5mm grade 316/316L stainless steel and incorporates a polyurethane seal and M5 fasteners.
Seal:
A high quality machine-applied full perimeter Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
