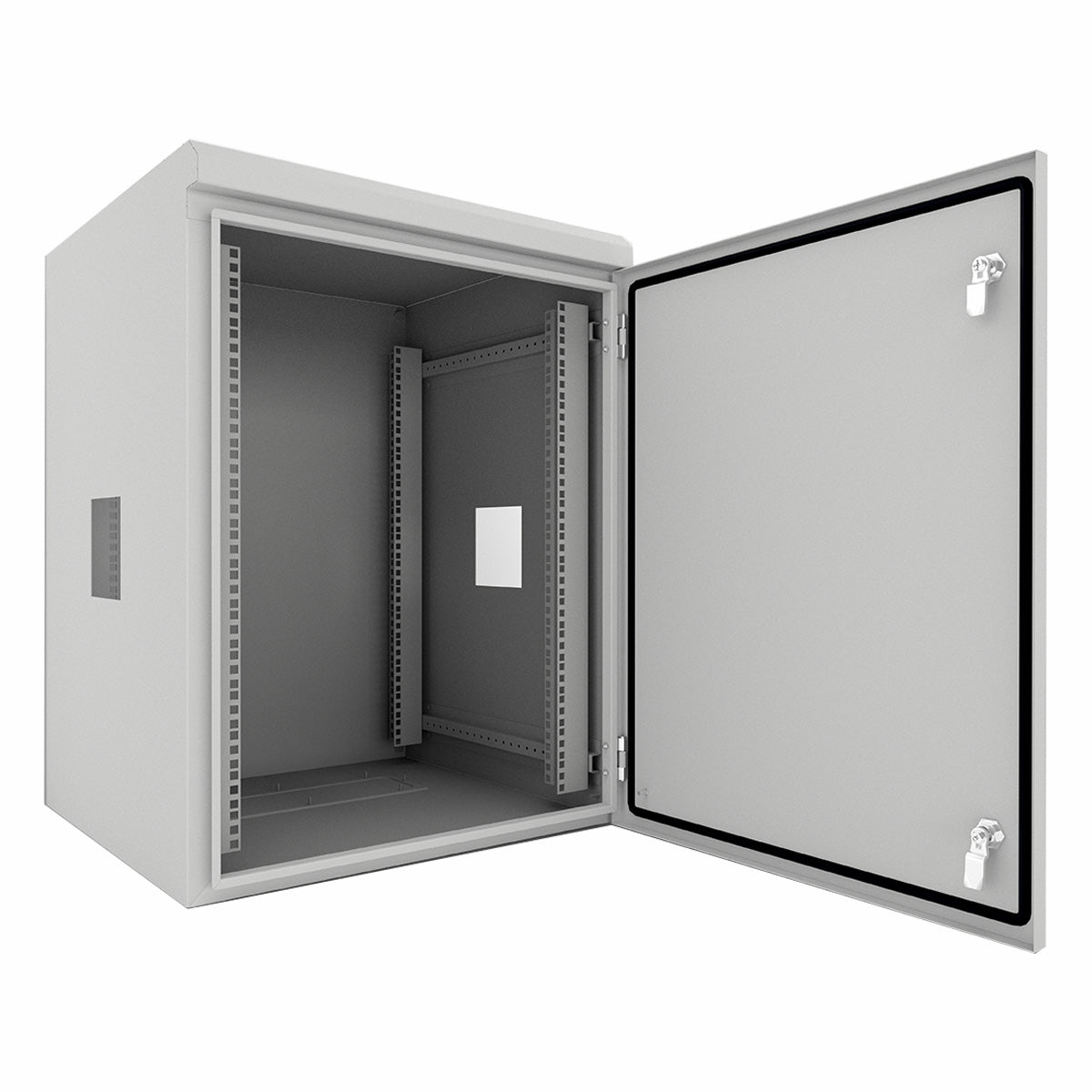

19" Data Rack 15U x 600D IP55 Ventilated

19" Data Rack 15U x 600D IP55 Ventilated

IP Enclosures IP55 Ventilated Data Racks are designed for heavy duty applications to house sensitive data network equipment in harsh environments. They are suitable for internal and external installations. Please note that Filter Vent/s (IP-V2000-UV) and/or Filter Fan/s (IP-V2200-UV) must be ordered to complete this cabinet.

Features & Specifications:

Protection: IP55, IK10

Standard: AS60529, EIA-310-D, RoHS

Material:

Enclosure Body: 1.5mm galvanised steel sheet
Enclosure Door: 1.5mm galvanised steel sheet
19” Data Rack Rails: 1.5mm galvanised steel sheet
Enclosure Seal: Polyurethane

Body & 19″ Rails:

The monoblock body is 1.5mm galvanised steel sheet. Precision automated manufacturing equipment ensures accuracy and consistent high quality. Flat face sealing surfaces increase seal life. A galvanised steel gland plate is also incorporated into the bottom face. 19″ data rack rails are fitted. 600mm deep racks include front and rear rails.

Door:

The surface mounted door is 1.5mm galvanised steel sheet. It incorporates concealed removable hinges with captive pins. Doors are also designed for a 110° opening. Door with windows are available as an accessory.

Seal:

A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).

Lock:

5mm Double Bit Quarter Turn Lock.

Gland Plate:

Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners. The size and quantity vary according to enclosure size.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour RAL7035.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
