Air Conditioner Outdoor Wall Mounted IP55 230V 850W with Alarm, Door Interlock, RS485 Interface & Condensate Drain

$3,478.96
 inc. GST
SKU: IP-ACOWM085.003

Order In - Contact Us for lead time

NZ: 0 in stock

Details

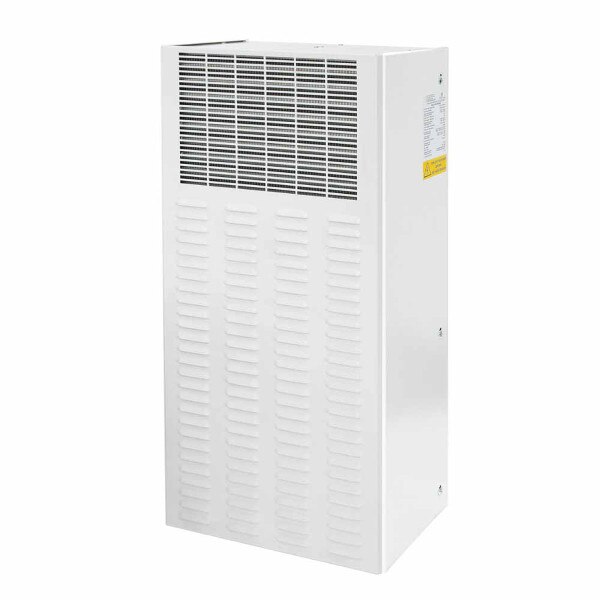

Air Conditioner Outdoor Wall Mounted IP55 230V 850W with Alarm, Door Interlock, RS485 Interface & Condensate Drain

IP Enclosures Italian vertical-mount compact air conditioners designed for the cooling needs of outdoor electrical cabinets. They are optimised for door or side-panel mounting and have been designed for high efficiency and low maintenance. Outdoor models include a special cover designed to protect internal components, a condenser fan controller and pressure controller for the compressor. The outdoor range has been designed to provide protection in the harshest outdoor conditions.

FeaturesUnitIP-ACOWM085
Power supplyV/Hz230V/1ph/50-60
Dimensions HxWxDmm635x305x210
Cooling capacity EN814 A35A35W850/900
Cooling capacity EN814 A35A50W625/650
Air flow rate (free blow)
insidem3/h600/625
outsidem3/h600/625
Max currentA2.65/2.75
Delayed fuseA6
Absorbed electric power EN814 A35A35W450/470
Absorbed electric power EN814 A35A50W530/560
Refrigerant (type/charge)kgR134a/0.3
Maximum Pressurebar25
Operating temperature (ambient)°C+20/+55
Operating temperature (enclosure)°C+20/+45
Temperature controller (factory set at 35°C)Integrated mechanical thermostat
Compressor typeRotative compressor
Noise leveldB(A)62
Electrical connectionThree-pole connector
Protection degree EN60529/1 enclosure insideIP55
Protection degree EN60529/1 ambient insideIP34
Weight (with packaging)Kg23(24)
ColourRAL 7035
Conformity/CertificationsCE
