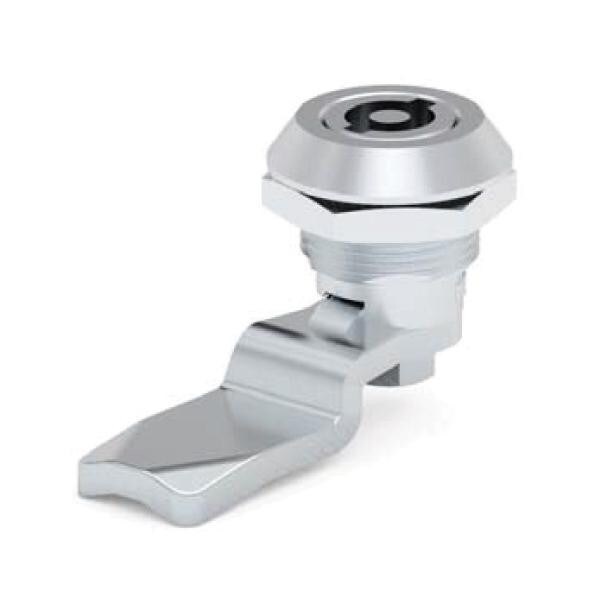

Chrome Quarter Turn 5mm Double Bit Lock for Electrical Enclosures
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details
Chrome Quarter Turn 5mm Double Bit Lock for Electrical Enclosures
FEATURES
– Specially designed internal spring provides 1.5 mm of compression.
– Cam does not rotate beyond quarter turn due to stop lip.
MATERIAL
HOUSING: Zamak DIN-EN 1774-ZnAl4Cu1
DRIVER: Zamak DIN-EN
CAM: Steel
GASKET: Rubber
FINISH: Chrome
IP RATING: IP65
DRIVERS
IP-L001: 5mm Double Bit

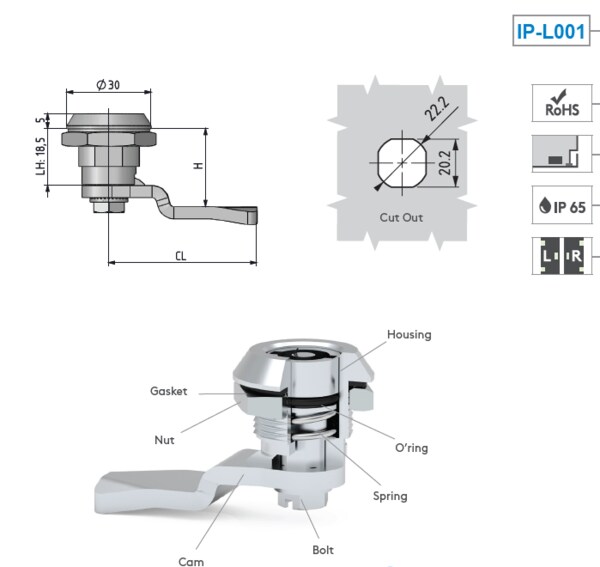

DIMENSIONS
H=25.5mm
CL=49mm
